52 CONTENTS

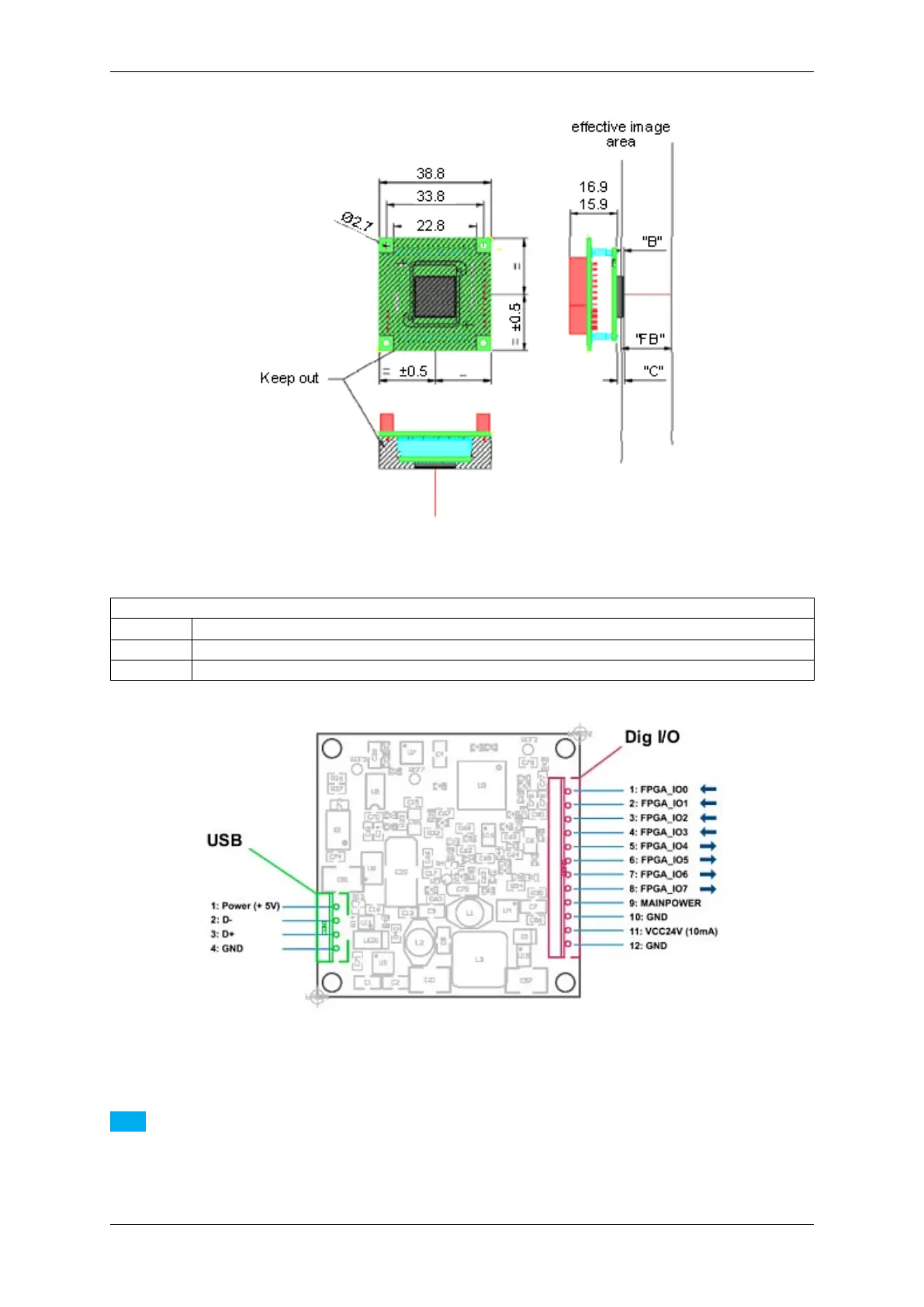

Figure 11: mvBlueFOX-M10x (CMOS)

Lens mount

Type "FB"

C-Mount 17.526

CS-Mount 12.526

Figure 12: Backside view of the board

Note

The mvBlueFOX-M has a serial I²C bus EEPROM with 64 KBit of which 512 Bytes can be used to store

custom arbitrary data.
