54 CONTENTS
See also
High-Speed USB design guidelines (p. 14)
8.3.1.3 Contact

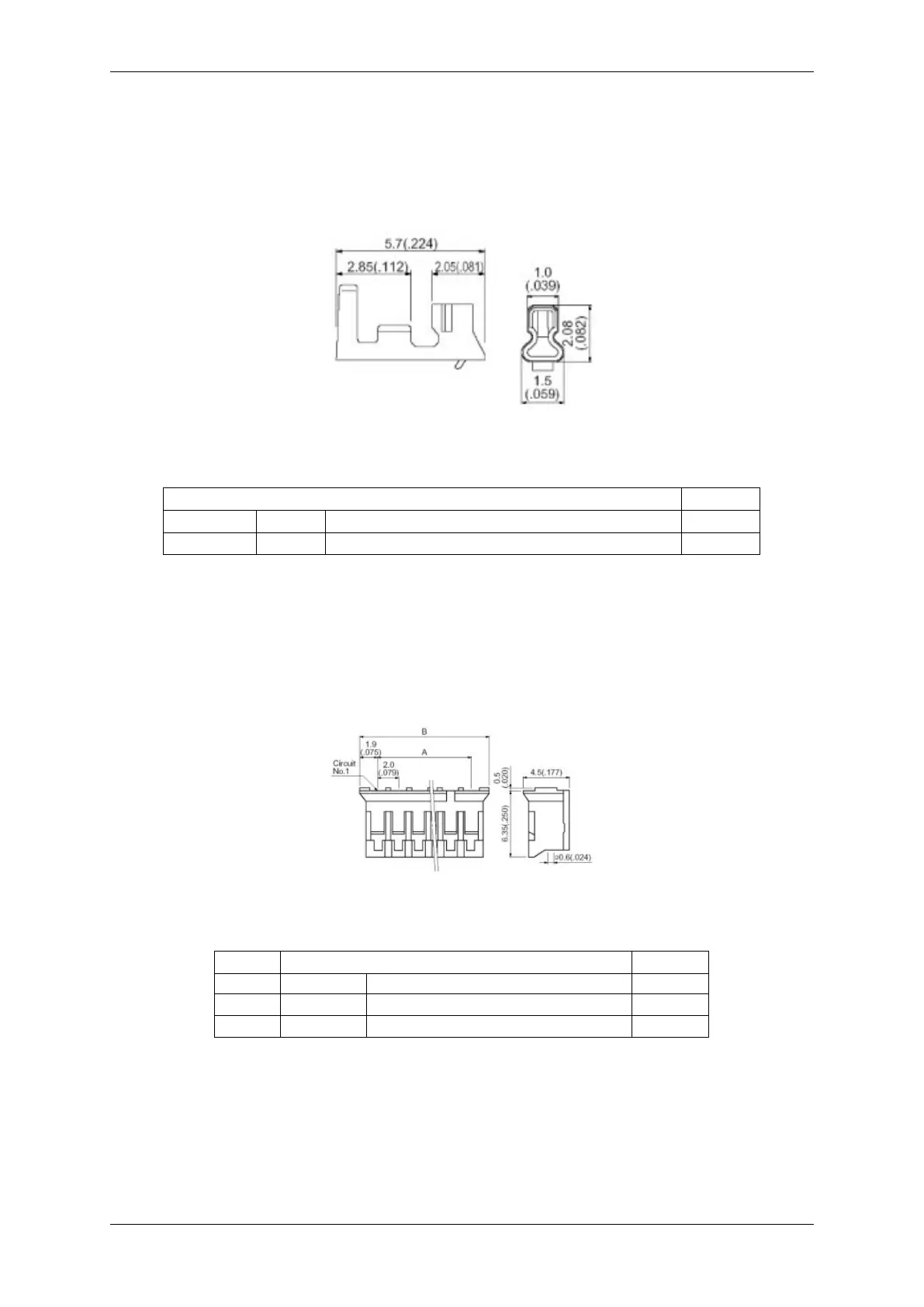

Figure 13: Contact, dimensions in mm (in.)
Application wire Q'ty / reel
mm2 AWG # Insulation O.D. mm (in.)
0.05 to 0.22 30 to 24 0.9 to 1.5 (.035 to .059) 8.000
Material and finish: phosphor bronze, tin-plated
Manufacturer: JST
Part number: SPH-002T-P0.5S
8.3.1.4 Housing
Figure 14: Housing, dimensions in mm (in.)
Circuits Dimensions in mm (in.) Q'ty / box
A B
4 6.0 (.236) 9.8 (.386) 1.000
12 22.0 (.866) 25.8 (1.016) 1.000
Material and finish: nylon 66, UL94V-0, natural (white)
Manufacturer: JST
Part number: PHR-4 / PHR-12
See also
Suitable assembled cable accessories for mvBlueFOX-M: What's inside and accessories (p. 22)
