• Click Submit to save your entries. Close the window to return to the SIP Trunk page.
You can also configure the DDI Number Based Table from Advanced Settings. See “Destination
Number Determination” under Advanced Settings for instructions.

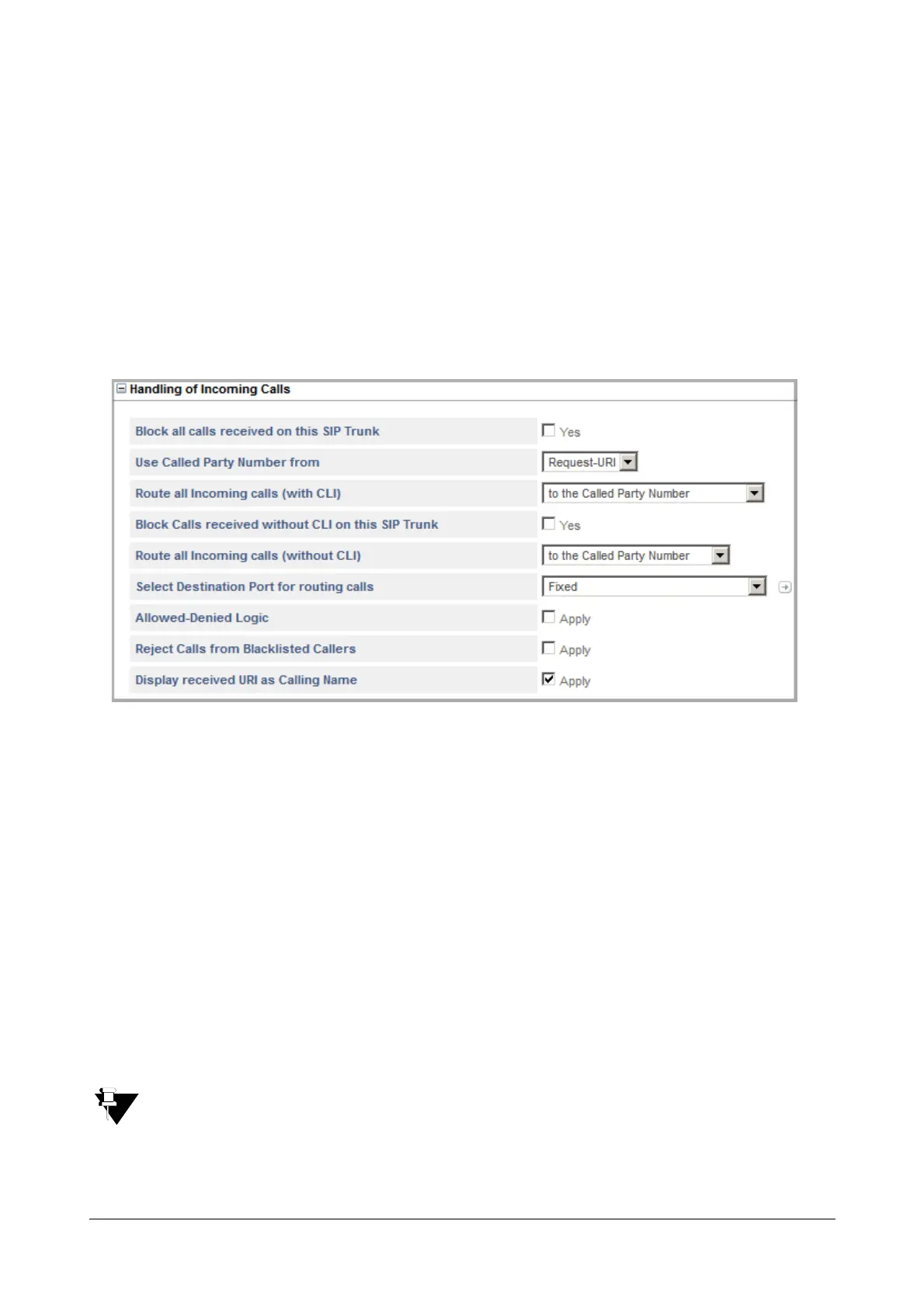

Route to the Called Party Number
In this method, a call is routed to a specific number depending upon the called party number received in the SIP ID
of the Request URI of the INVITE message.
• To apply this method, in the Route all Incoming calls with CLI list, click to the Called Party Number.
• If you do not want to route calls without CLI through this SIP Trunk, select the Block Calls received
without CLI on this SIP Trunk check box.
•To Route all Incoming calls (without CLI), you may select from any of the following methods: Default: to
the Called Party Number.
• to a Fixed Destination Number, see “Route to the Fixed Destination Number”.
• to the Called Party Number, see “Route to the Called Party Number”.
• on the basis of DDI Number, see “Route on the basis of DDI Number”.
Default: to the Called Party Number.
Destination Port Determination
•In Select the Destination Port for routing calls, select from any of the following options:
•Fixed
• on the basis of Destination Number
• on the basis of Calling Party Number
Default: Fixed
• If the destination number to be dialed out is an IP Address, SETU VFXTH will not check the Destination
Port Determination Method. Instead, it will route the call using the SIP Trunk / Group programmed for IP
Dialing. (See “IP Dialing” to know more).
• SETU VFXTH does not support SIP to SIP calls.
