Matrox Solios Series - Camera Link Video Input Connector

Connectors on Matrox Solios eCL/XCL-B 127

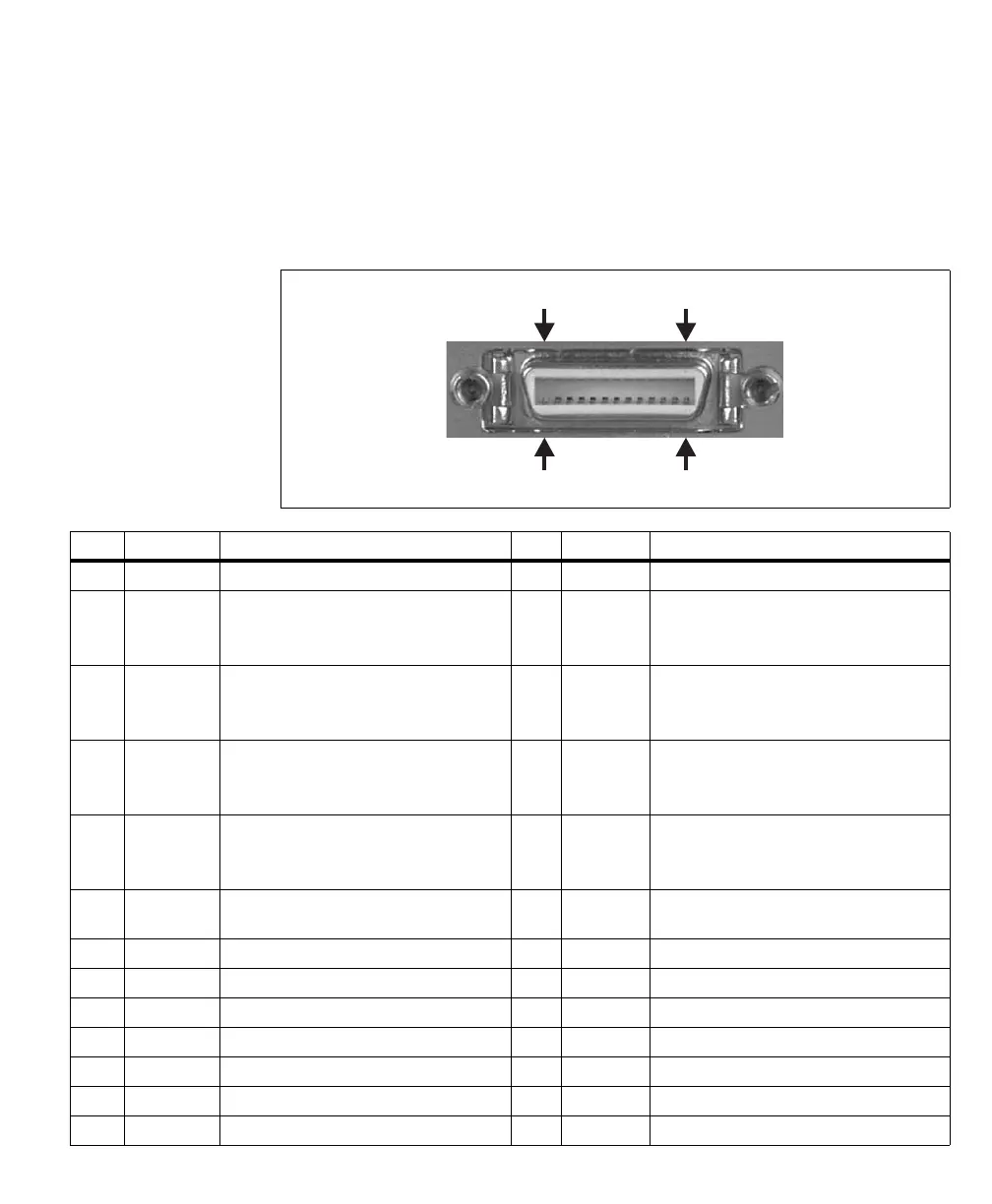

Camera Link video input connector
The Camera Link video input connector is a 26-pin high-density mini D ribbon
(MDR) connector. It is used to receive video input, timing, and synchronization
signals and transmit/receive communication signals between the video source and
the frame grabber. The pinout of this connector follows the Camera Link standard.
1
14
13
26
Pin Signal Description Pin Signal Description
1 Inner shield Ground, or for PoCL cables, +12 V. 14 Inner shield Ground.
2 CC4- Camera control output 4 (negative).
Specific to the acq. path: exposure output 0
or 1; user-defined output 0 or 1.
15 CC4+ Camera control output 4 (positive).
Specific to the acq. path: exposure output 0 or
1; user-defined output 0 or 1.
3 CC3+ Camera control output 3 (positive).
Specific to the acq. path: exposure output 0
or 1; user-defined output 0 or 1.
16 CC3- Camera control output 3 (negative).
Specific to the acq. path: exposure output 0 or
1; user-defined output 0 or 1.
4 CC2- Camera control output 2 (negative).
Specific to the acq. path: exposure output 0
or 1; user-defined output 0 or 1.
17 CC2+ Camera control output 2 (positive).
Specific to the acq. path: exposure output 0 or
1; user-defined output 0 or 1.
5 CC1+ Camera control output 1 (positive).
Specific to the acq. path: exposure output 0
or 1; user-defined output 0 or 1.
18 CC1- Camera control output 1 (negative).
Specific to the acq. path: exposure output 0 or
1; user-defined output 0 or 1.
6 SerTFG+ Serial port to frame grabber (UART) (posi-
tive).
19 SerTFG- Serial port to frame grabber (UART) (negative).
7 SerTC- Serial port to video source (UART) (negative). 20 SerTC+ Serial port to video source (UART) (positive).
8 X3+ Video input data X3 (positive). 21 X3- Video input data X3 (negative).
9 Xclk+ Clock input X (positive). 22 Xclk- Clock input X (negative).
10 X2+ Video input data X2 (positive). 23 X2- Video input data X2 (negative).
11 X1+ Video input data X1 (positive). 24 X1- Video input data X1 (negative).
12 X0+ Video input data X0 (positive). 25 X0- Video input data X0 (negative).
13 Inner shield Ground. 26 Inner shield Ground, or for PoCL cables, +12 V.
