50 Chapter 4: Matrox Solios hardware reference
Matrox Solios hardware reference
This chapter provides information on the Matrox Solios eCL/XCL, Matrox Solios
eA/XA, and Matrox Solios GigE hardware. It covers the architecture, features, and
modes of their acquisition section. In addition, it covers the Matrox Solios
hardware related to the processing and transfer of data.
A summary of the features of Matrox Solios, as well as pin assignments for the
various connectors, can be found in Appendix B: Technical information.

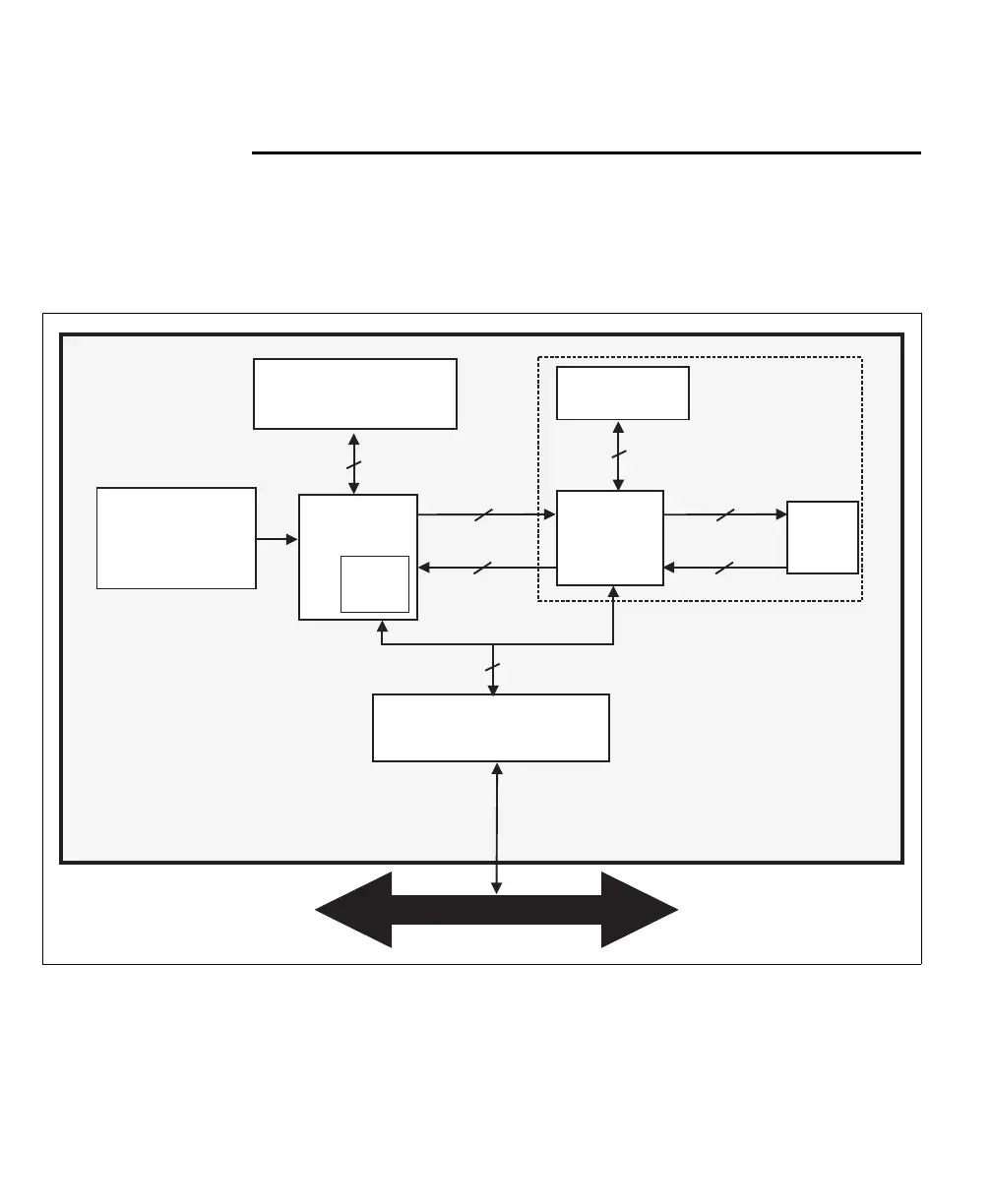

Video to
PCI-X Bridge
Acquisition
memory
(32/64/128/256 MB)**
PCI-X to PCI-X (XCL/XA)
or PCI-X to PCIe
(eCL/eA/GigE) Bridge
Host PCI/PCI-X/PCIe bus
Acquisition
section
64****
Processing
FPGA
DDR SDRAM
(64/128/256 MB)
QDRII
SRAM
(4/8 MB)
Optional*
32
32
16
16
5V/3.3V PCI/PCI-X
64-bit
(XCL/XA)
Option not available for Matrox Solios
eCL/XCL-B and eA/XA Single.
*
**
***
Matrox Solios eCL/XCL-B: 32/64/128 MB;
others: 64/128/256 MB.
Matrox Solios eCL/XCL-B: 32-bit.
Color
space
converter
x1 or x4 PCIe
(eCL/eA/GigE)
64***
64
****
Matrox Solios eCL-B: 32-bit.
