18 Chapter 1: Introduction
Acquisition with Matrox Solios GigE
Matrox Solios GigE is an industrial Gigabit Ethernet (GbE) network interface card (NIC),
which is optimized to act as a high-performance GigE Vision frame grabber for
GigE Vision video sources.
It supports acquisition from up to four GigE Vision video
sources. A video source can be connected directly to one of the four
GigE-compliant Ethernet ports, or can be connected over an Ethernet network.
The Matrox Solios GigE supports the optional Processing FPGA.
Matrox Solios GigE is designed for use with 1 Gigabit Ethernet (1000BASE-T)
networks, however it will also function correctly with 100 Mbps Fast Ethernet
(100BASE-T) and 10 Mbps Ethernet (10BASE-T) networks. It is recommended
that you use Matrox Solios GigE with Gigabit Ethernet networks to ensure
maximum performance.

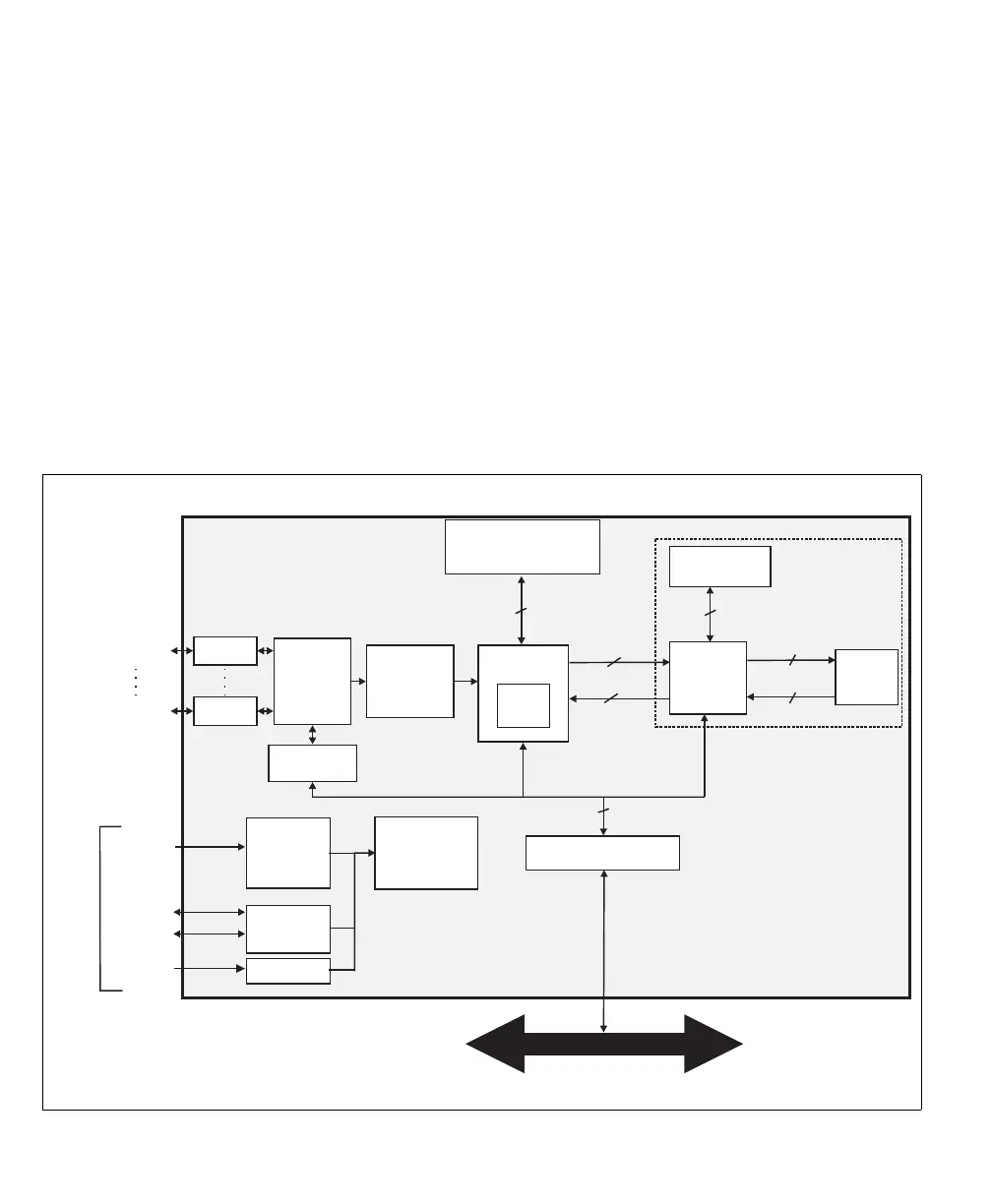

Video to
PCI-X Bridge
(up to 1.6 GB/s)
Acquisition
memory
(64/128/256 MB)
PCI-X to PCIe Bridge
Host PCIe bus
64 DDR
64
(up to 800 MB/s)
Processing
FPGA
DDR SDRAM
(64/128/256 MB)
64
(up to 1.3 GB/s)
QDRII
SRAM
(4/8 MB)
Optional
32
(up to 0.67 GB/s)
32
(up to 0.67 GB/s)
16
16
(up to 924 MB/s)
(up to 924 MB/s)
Color
space
converter
x4 PCIe
(up to 1 GB/s)
Ethernet to
PCI-X bridge
reconstructor
GigE Vision
filter
LVDS
receivers
Aux In (2)
TTL buffers
OptoAux (4)
Optocoupler
Auxiliary I/O
controller
Aux I/Os (4)
Aux Out (8)
HD-44 *
Ethernet
connector 0
Ethernet
connector 3
* Present on a separate bracket
- - - Optional
Matrox Solios GigE
Ethernet
controller 0
Ethernet
controller 3
