130 Appendix B: Technical information
Connectors on Matrox Solios eCL/XCL
dual-Base/single-Medium and eCL/XCL-F
boards
On the Matrox Solios eCL/XCL dual-Base/single-Medium and eCL/XCL-F
boards, there are several interface connectors. On its bracket, there are two Camera
Link video input connectors. On the top edge of the board, there is an internal
auxiliary I/O connector and, if the board has the optional Processing FPGA, a
JTAG connector.
On the bracket of the cable adapter board, there are two external auxiliary I/O
connectors (HD-44 and DB-9); these allow you to access the signals of the internal
auxiliary I/O connector from outside the computer enclosure.

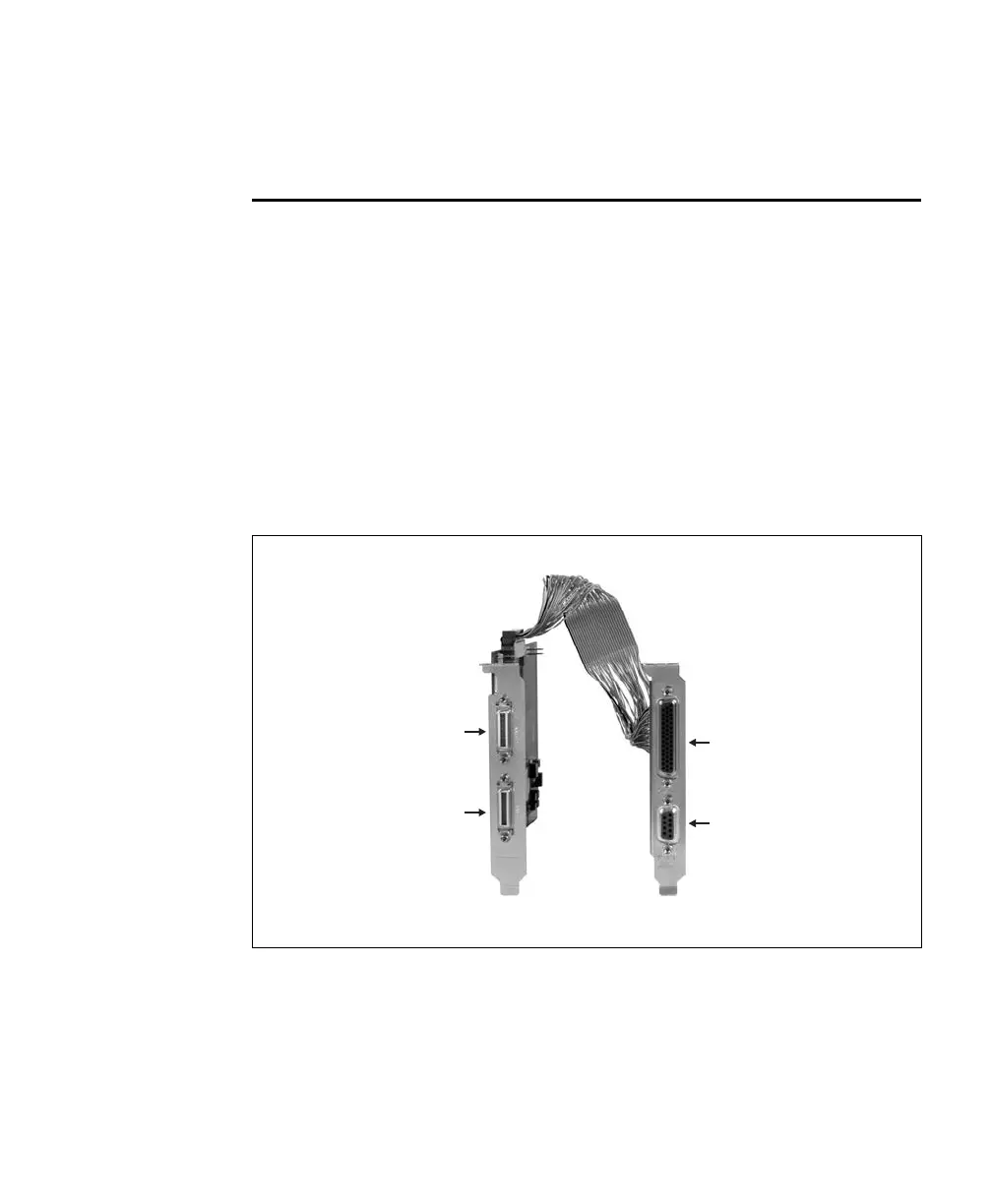

The following illustrates Matrox Solios XCL and an adapter board:
❖ Note that the Matrox Solios eCL/XCL signal names have a ranking that reflects
the number of signals of that type, format, and direction for a path. For example,
two TTL and two LVDS auxiliary input signals for path 0 would be named
P0_TTL_AUX_IN0, P0_TTL_AUX_IN1, P0_LVDS_AUX_IN0+, and
P0_LVDS_AUX_IN1+. Notice that the ranking of the LVDS signals also starts
at 0.
Connector #0
Connector #1
Connector #0
Connector #1
Camera Link
Video Input
External
Auxiliary I/O
