Connectors on Matrox Solios eA/XA 141
Connectors on Matrox Solios eA/XA
On the Matrox Solios eA/XA board, there are several interface connectors. On its
bracket, there are two analog video input connectors (DVI type). On the top edge
of the board, there is an internal auxiliary I/O connector and an optional JTAG
connector.
On the bracket of the cable adapter board, there are two external auxiliary I/O
connectors (HD-44 and DB-9); these allow you to access the signals of the internal
auxiliary I/O connector from outside the computer enclosure.

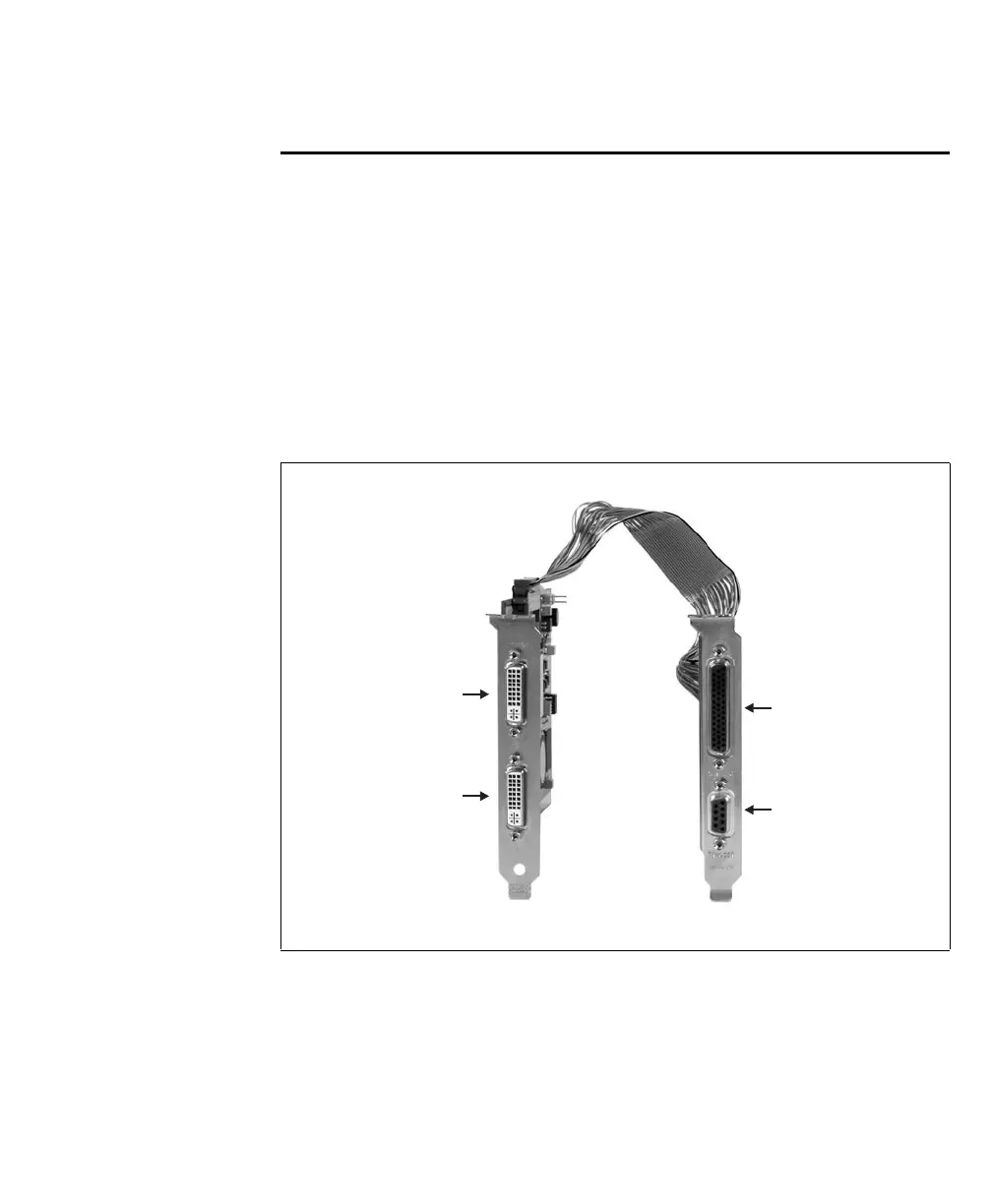

The following illustrates Matrox Solios XA and an adapter board:
❖ Note that the Matrox Solios eA/XA signal names have a ranking that reflects the
number of signals of that type, format, and direction for a path. For example, two
TTL and two LVDS auxiliary input signals for path 0 would be named
P0_TTL_AUX_IN0, P0_TTL_AUX_IN1, P0_LVDS_AUX_IN0+, and
P0_LVDS_AUX_IN1+. Notice that the ranking of the LVDS signals also starts
at 0.
Connector #1
Connector #0
Connector #0
Connector #1
Analog
Video Input
External
Auxiliary I/O
