126 Appendix B: Technical information
Connectors on Matrox Solios eCL/XCL-B
On the Matrox Solios eCL/XCL-B board, there are several interface connectors.
On its bracket, there is one Camera Link video input connector and one auxiliary
connector (DB-15 or DB-9).On the top edge of the board, there is an internal
auxiliary I/O connector.

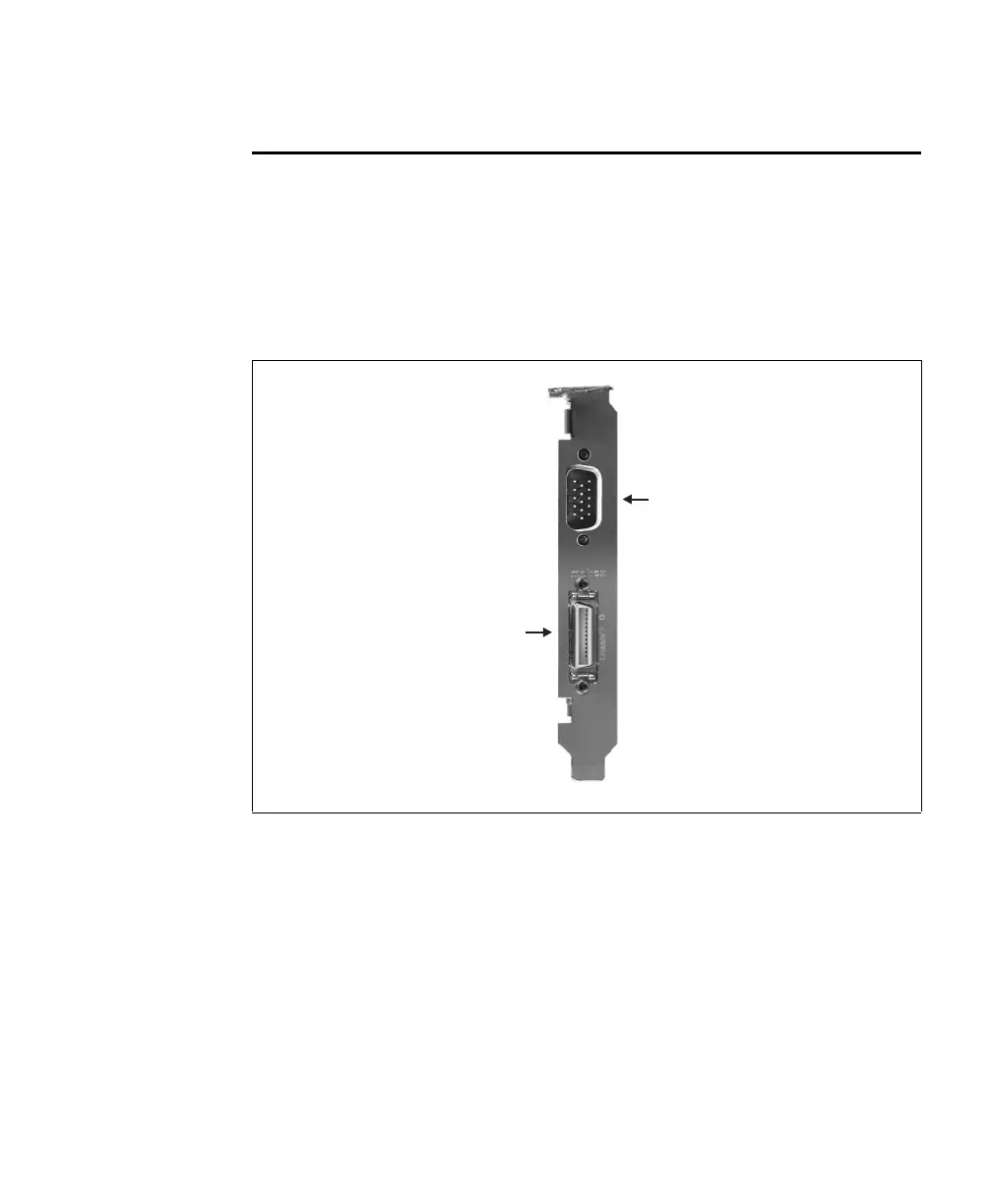

The following illustrates Matrox Solios eCL/XCL-B:
❖ Note that the Matrox Solios eCL/XCL-B signal names have a ranking that reflects
the number of signals of that type, format, and direction for a path. For example,
two TTL and two LVDS auxiliary input signals for path 0 would be named
P0_TTL_AUX_IN0, P0_TTL_AUX_IN1, P0_LVDS_AUX_IN0+, and
P0_LVDS_AUX_IN1+. Notice that the ranking of the LVDS signals also starts
at 0.
Connector #0
Camera Link
Video Input
Connector #0
Auxiliary I/O
