160 Appendix B: Technical information
To build your own cable, you can purchase the following parts:
These parts can be purchased from third parties such as Digi-Key Corporation
(www.digikey.com).

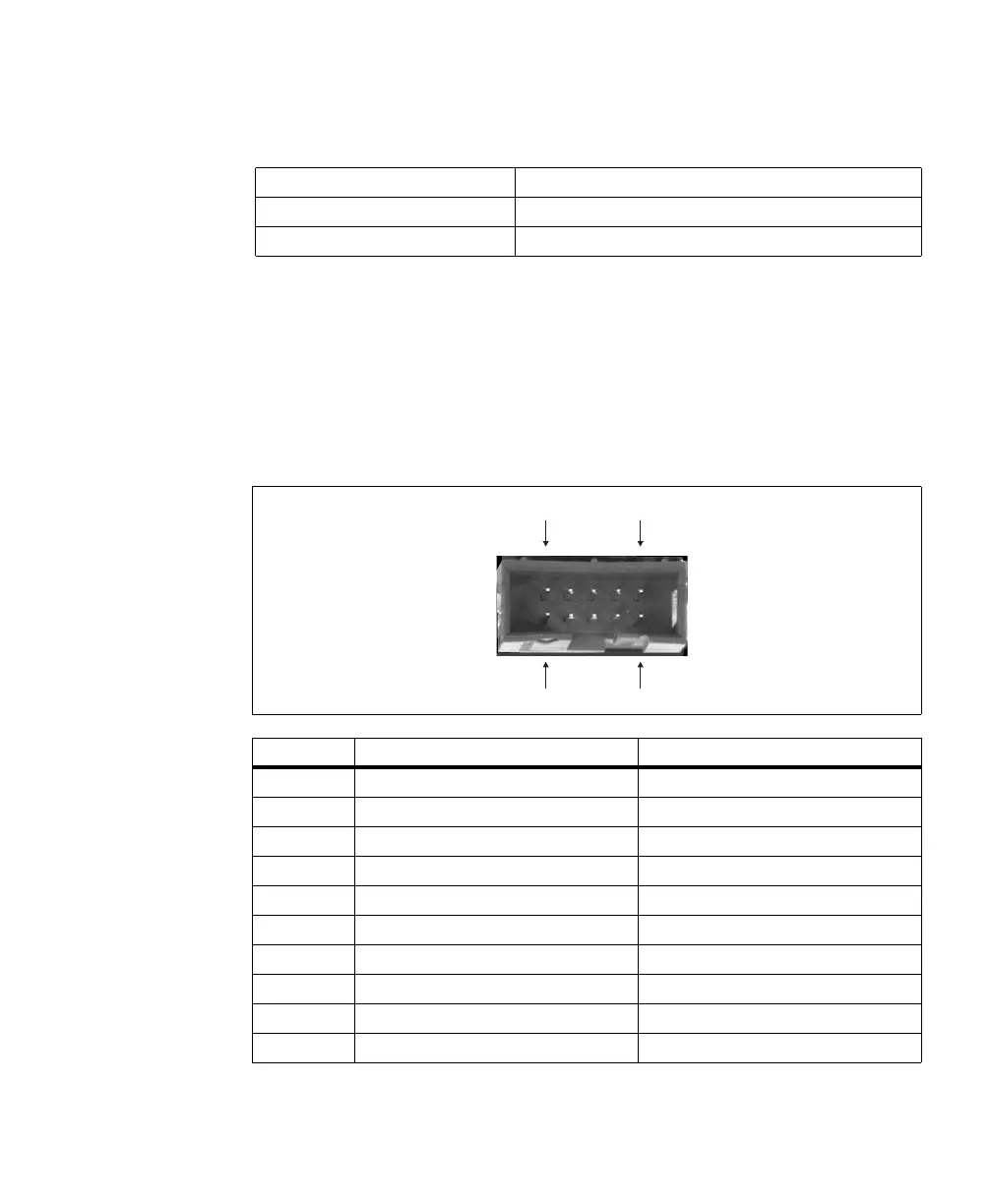

JTAG connector
If Matrox Solios GigE has the optional Processing FPGA, the board features a
10-pin male JTAG connector for debugging and probing internal signals of the
FPGA. The pin assignment, as used in JTAG mode, is as follows:
Manufacturer: NorComp, Inc.
Connector: 172-E09-102-031
Backshell: 970-009-010-011
Pin Signal Description
1 TCK Clock signal.
2 GND Signal ground.
3 TDO Data from device.
4 VCC(TRGT) Target power supply.
5 TMS JTAG state machine control.
6 No connect No connect.
7 No connect No connect.
8 No connect No connect.
9 TDI Data to device.
10 GND Signal ground.
