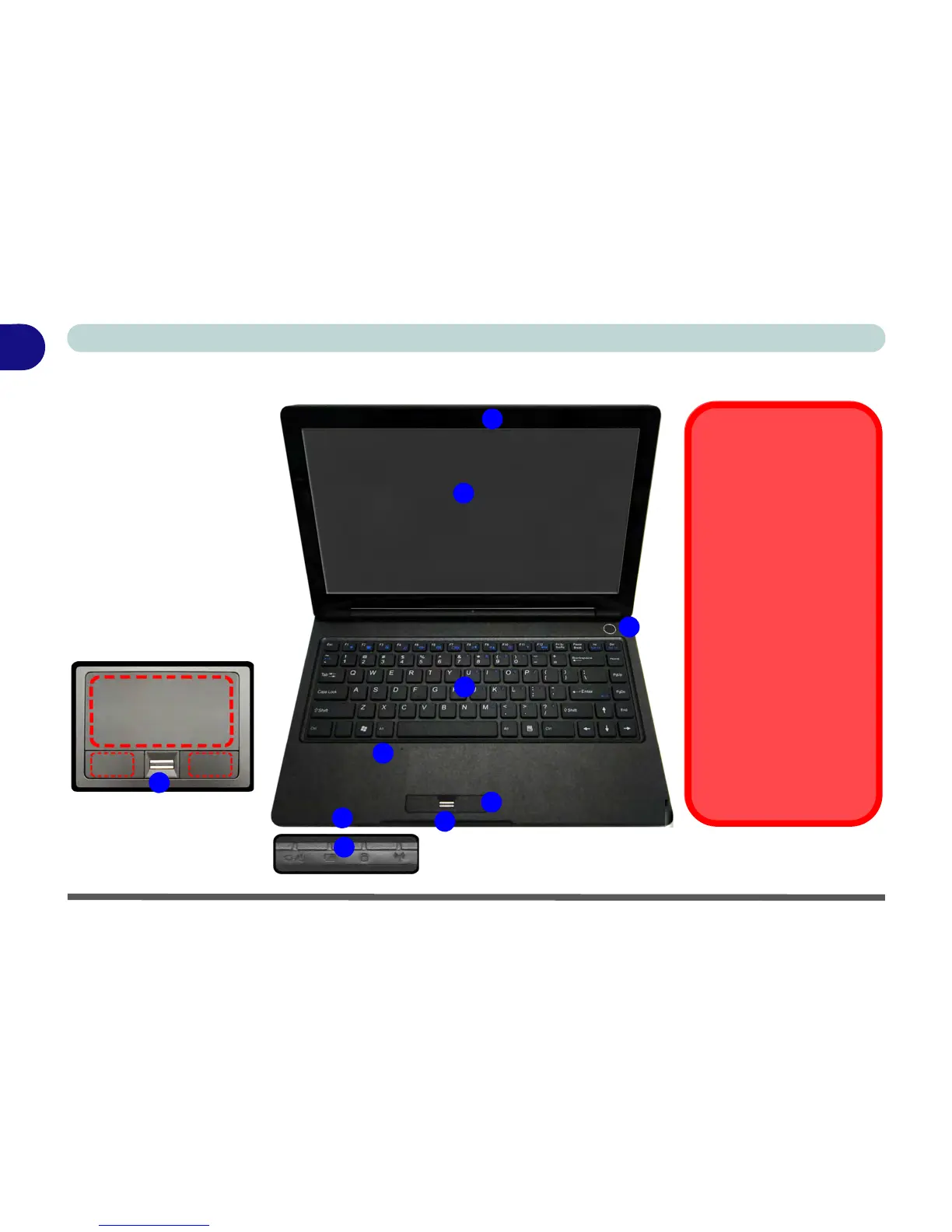

Figure 1 - 2
LCD Panel Open
1. Built-In PC Camera
(
Optional
)
2. LCD
3. Power Button
4. Keyboard
5. Built-In Microphone
6. Touchpad &
Buttons
7. LED Indicators
8. Fingerprint Reader
Sensor
Note that the Touchpad and
Buttons valid operational area
is that indicated within the red
dotted lines above.
8
2
4
1
7
3
5
Wireless Device
Operation Aboard
Aircraft
The use of any portable elec-
tronic transmission devices
aboard aircraft is usually pro-
hibited. Make sure the mod-
ule(s) are OFF if you are
using the computer aboard
aircraft.
Use the key combinations (or
WLAN Switch for wireless
LAN only) to toggle power to
the WLAN/Bluetooth and
3.75G modules, and check
the LED indicator or on-
screen icon to see if the mod-
ules are powered on or not
(see Table 1 - 2, on page 1 -
9/ Table 1 - 1, on page 1 - 7).
