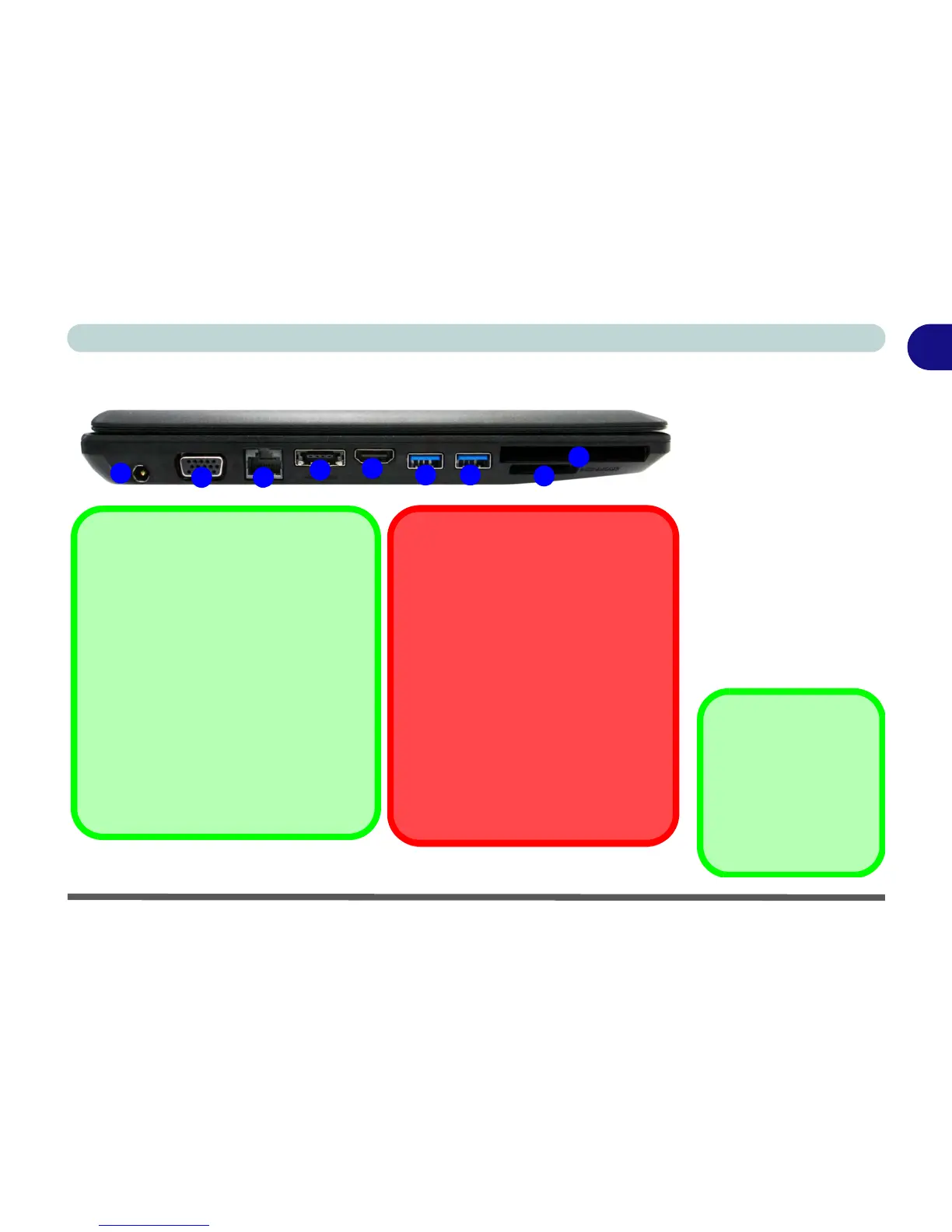

Figure 1 - 5
Left View
1. DC-In Jack
2. External Monitor
Port
3. RJ-45 LAN Jack
4. e-SATA Port/
USB 2.0 Combo
Port
5. HDMI-Out Port
6. 2 * USB 3.0 Ports
7. ExpressCard Slot
(see page 2 - 7)
8. Multi-In-1 Card
Reader
Optical Device Drives
To install applications and
drivers etc. you will need to
attach an external optical
CD/DVD device to the USB
ports.
2
5
4
1
3
Multi-In-1 Card Reader
The card reader allows you to use the most
popular digital storage card formats:
MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC / SDXC
MS (Memory Stick) / MS Pro / MS Duo
USB 3.0 Ports
USB 3.0 ports are denoted by their blue color;
USB 2.0 ports are colored black. Note that the
USB 3.0 port requires a driver installation (see
“USB 3.0” on page 4 - 7), does not support
wake on USB and is not operational under
DOS.
6
7
8
6
External Monitor Port & RJ-45 LAN
Jack
If you are using a VGA cable plugged into
the external monitor port, and a network
cable connected to the RJ-45 LAN jack, it
is recommended that you insert the VGA
cable before inserting the LAN cable.
USB Port/Card Reader Power
Note that power to the USB ports and
card reader may be enabled/disabled in
the BIOS (see “USB Ports/Card Reader
Power (Advanced Menu)” on page 5 -
9).
