WIRING EXAMPLES
Table 3-40 Digital output – Sinks

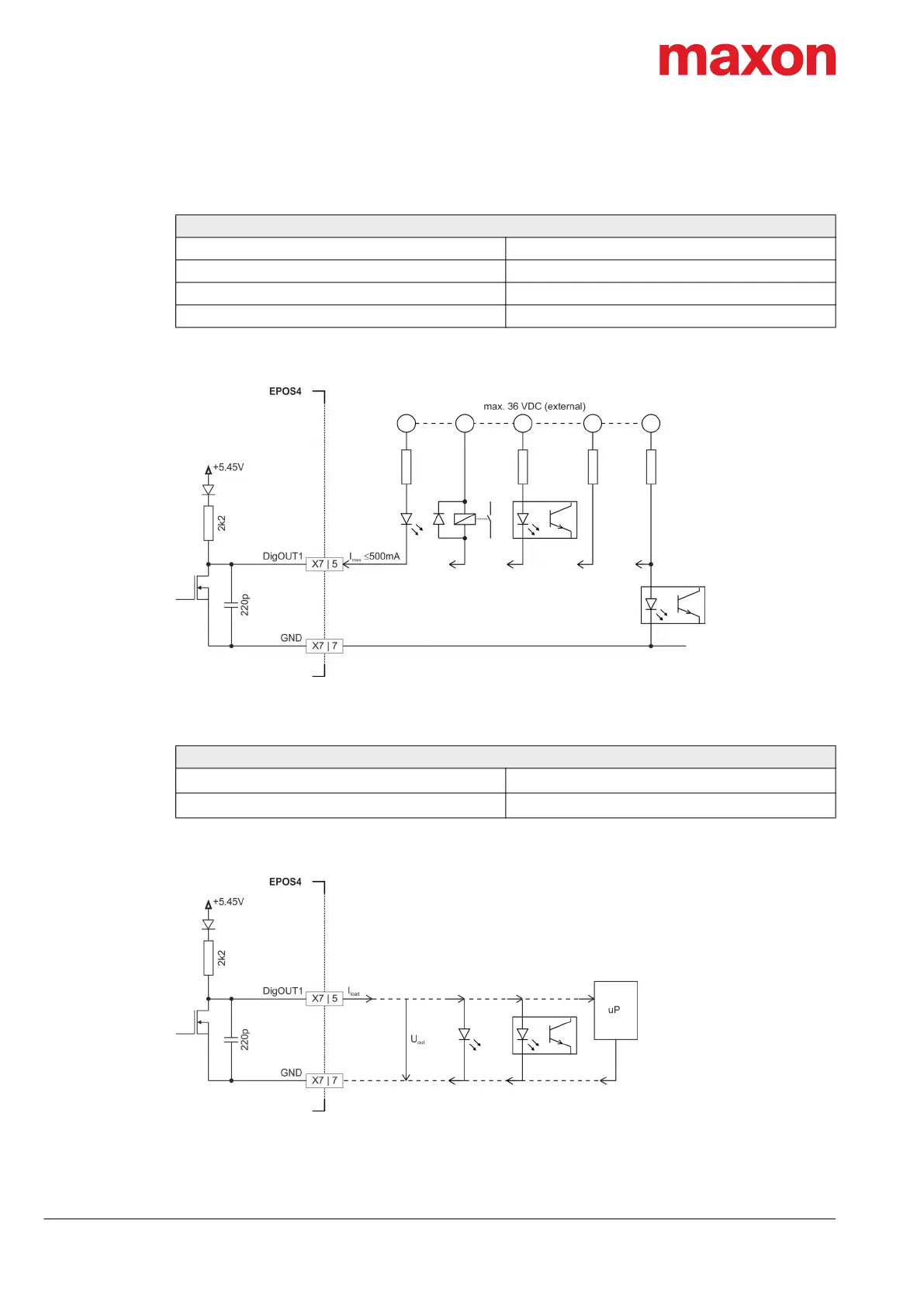

Figure 3-30 DigOUT1 “sinks” (analogously valid for DigOUT2)
Table 3-41 Digital output – Source
Figure 3-31 DigOUT1 “source” (analogously valid for DigOUT2)
DigOUT “sinks”
Max. input voltage +36 VDC
Max. load current 500 mA
Max. voltage drop 0.5 V @ 500 mA
Max. load inductance 100 mH @ 24 VDC; 500 mA
DigOUT “source”
Output voltage
U
Out
= 5.45 V − 0.75 V − (I
Load
x 2200 )
Max. load current
I
Load
2 mA
