EPOS4 50/5 Hardware Reference

CCMC | 2023-07 | rel11726

2-13

2.4 Dimensional Drawing

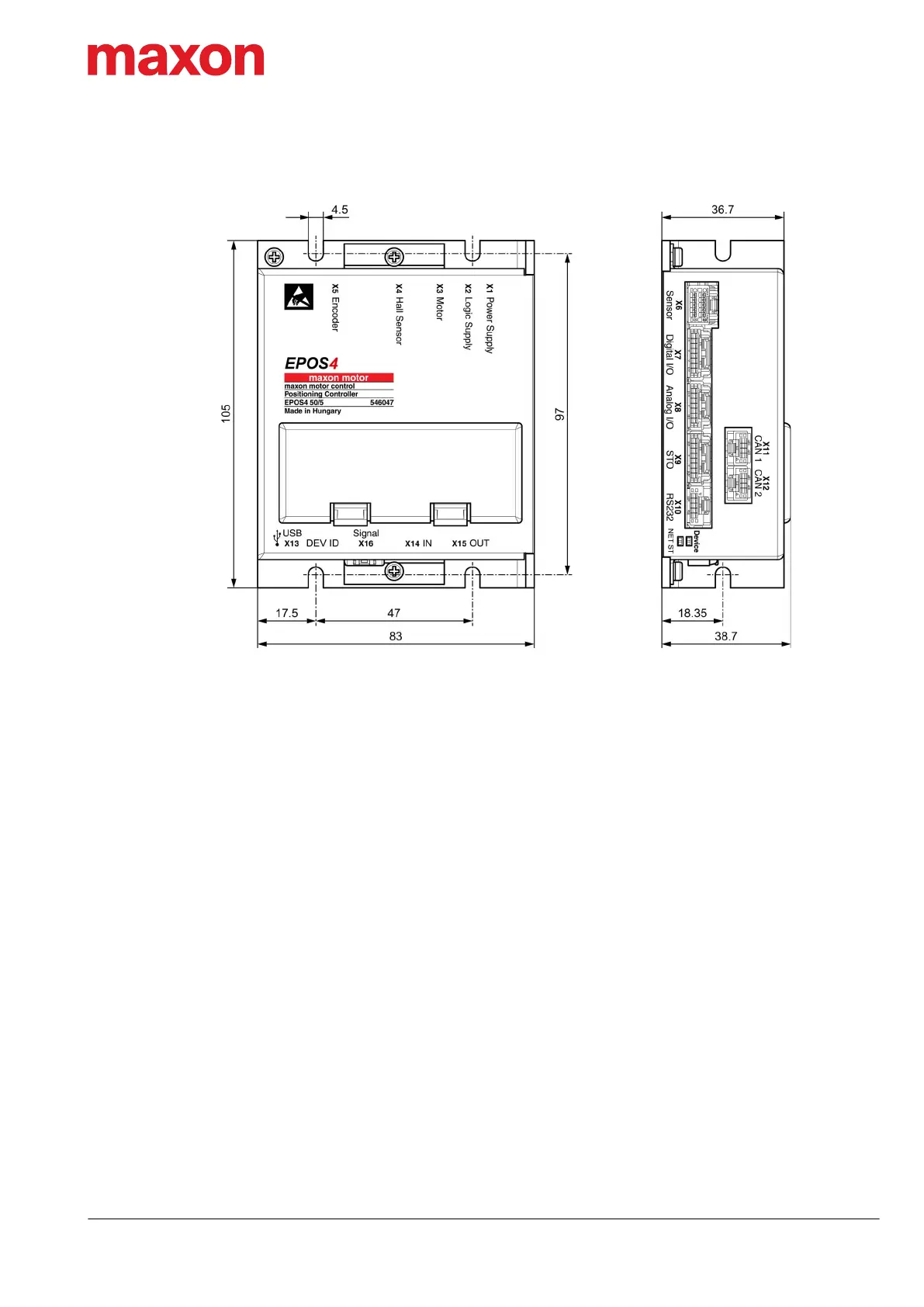

Figure 2-4 Dimensional drawing [mm]
