Mazda 6 - Page 625

6 – 57
Maintenance and Care
Owner Maintenance
(Right side)

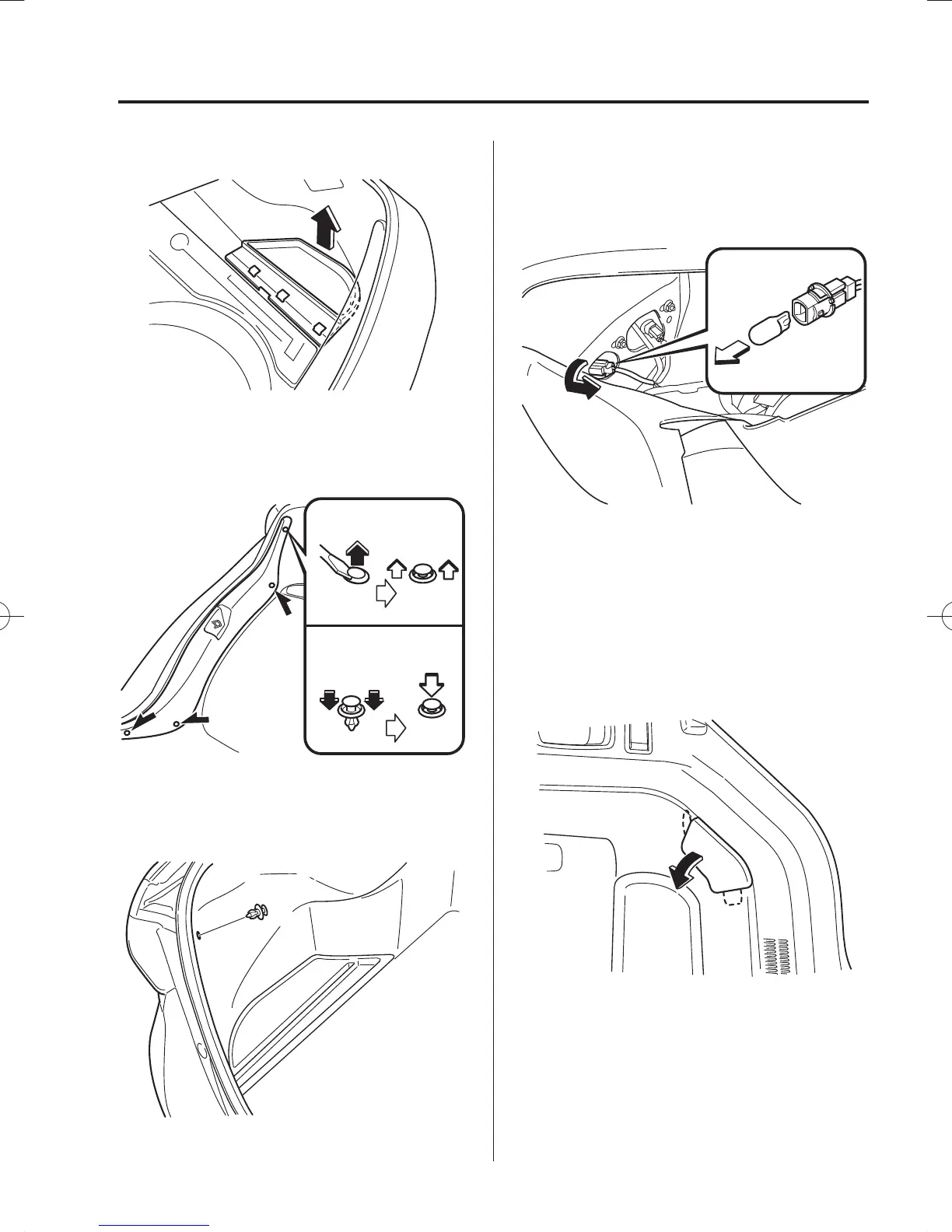

4. Pull the centre of each plastic retainer
and remove the retainers and the boot
end trim.
Removal
Installation
5. Pull the centre of each plastic retainer
and remove the retainers and the boot
side trim.
6. Turn the socket and bulb assembly
anticlockwise and remove it.
7. Disconnect the bulb from the socket.
8. Install the new bulb in the reverse order
of the removal procedure.
Wagon
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Remove the cover.
3. Turn the socket and bulb assembly
anticlockwise and remove it.
