Mazda 6 - Fuse Panel Description; Fuse Block (Engine Compartment)

6 – 66
Maintenance and Care
Owner Maintenance
*Some models.
Fuse Panel Description

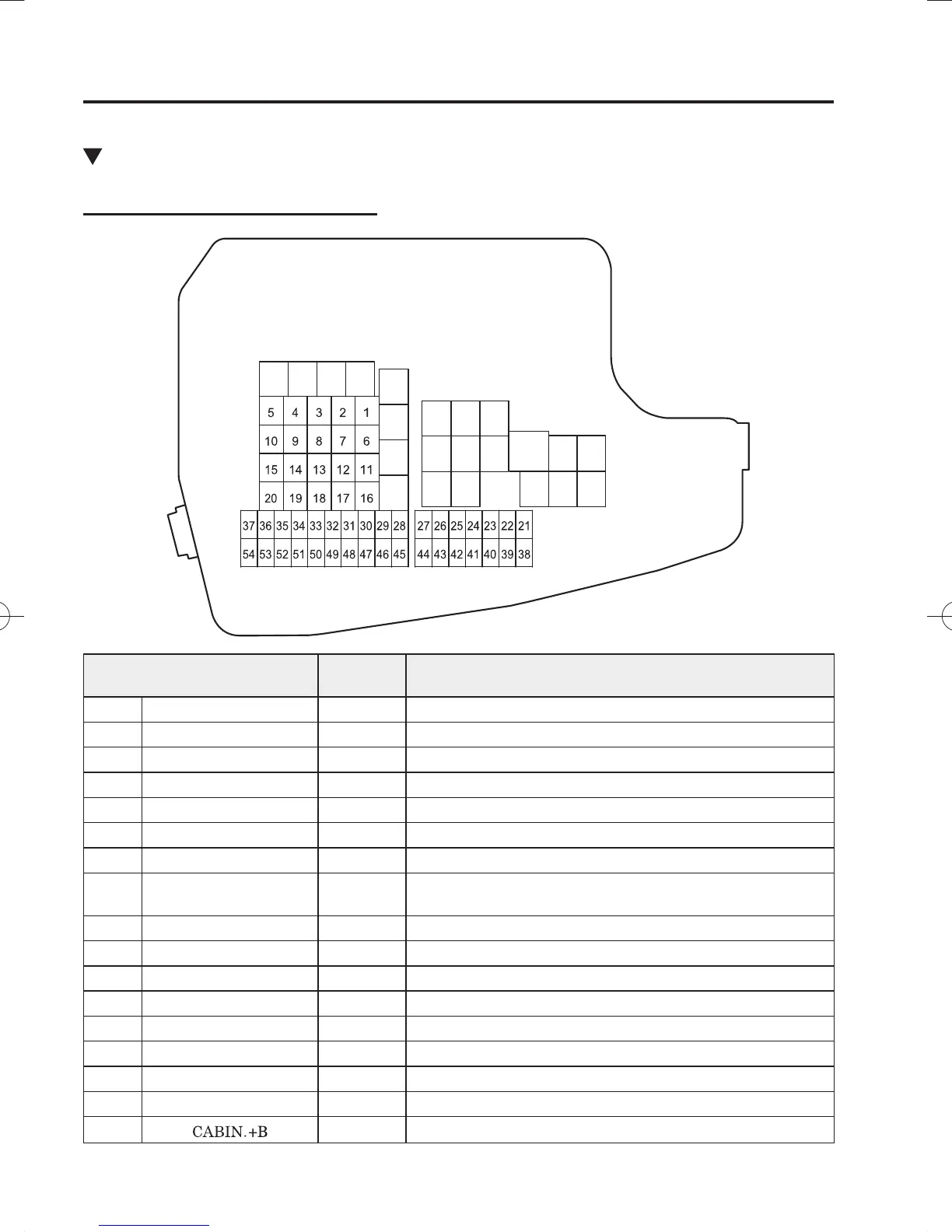

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 ADD FAN GE 30 A Cooling fan
*
2 IG2 30 A For protection of various circuits
3 INJECTOR 30 A Engine control system
*
4 FAN DE 40 A Cooling fan
*
5 P.WINDOW1 30 A Power windows
*
6 — — —
7 ADD FAN DE 40 A Cooling fan
*
8
EVVT
SCR1
20 A Engine control system
*
9 DEFOG 40 A Rear window defogger
10 DCDC DE 40 A For protection of various circuits
*
11 FAN GE 30 A Cooling fan
*
12 EPB L 20 A Electric parking brake (LH)
13 AUDIO 40 A Audio system
*
14 EPB R 20 A Electric parking brake (RH)
15 ENG.MAIN 40 A Engine control system
16 ABS/DSC M 50 A ABS, Dynamic stability control system
17
50 A For protection of various circuits
