MCCORMICK X60.40 - Checking Headlight Alignment; Replacement of Lamps; Headlights

Electrical system
236
Replacement of lamps
Turnandremovefromitsseattheconnectorofthelamp
holder.
Replacethelamp.
Headlights
Asyoucanuseyourtractoronpublicroads,thelighting
mustcomplywiththe applicable traffic androadregu-
lations. Periodically check headlight alignment in the
followingway:

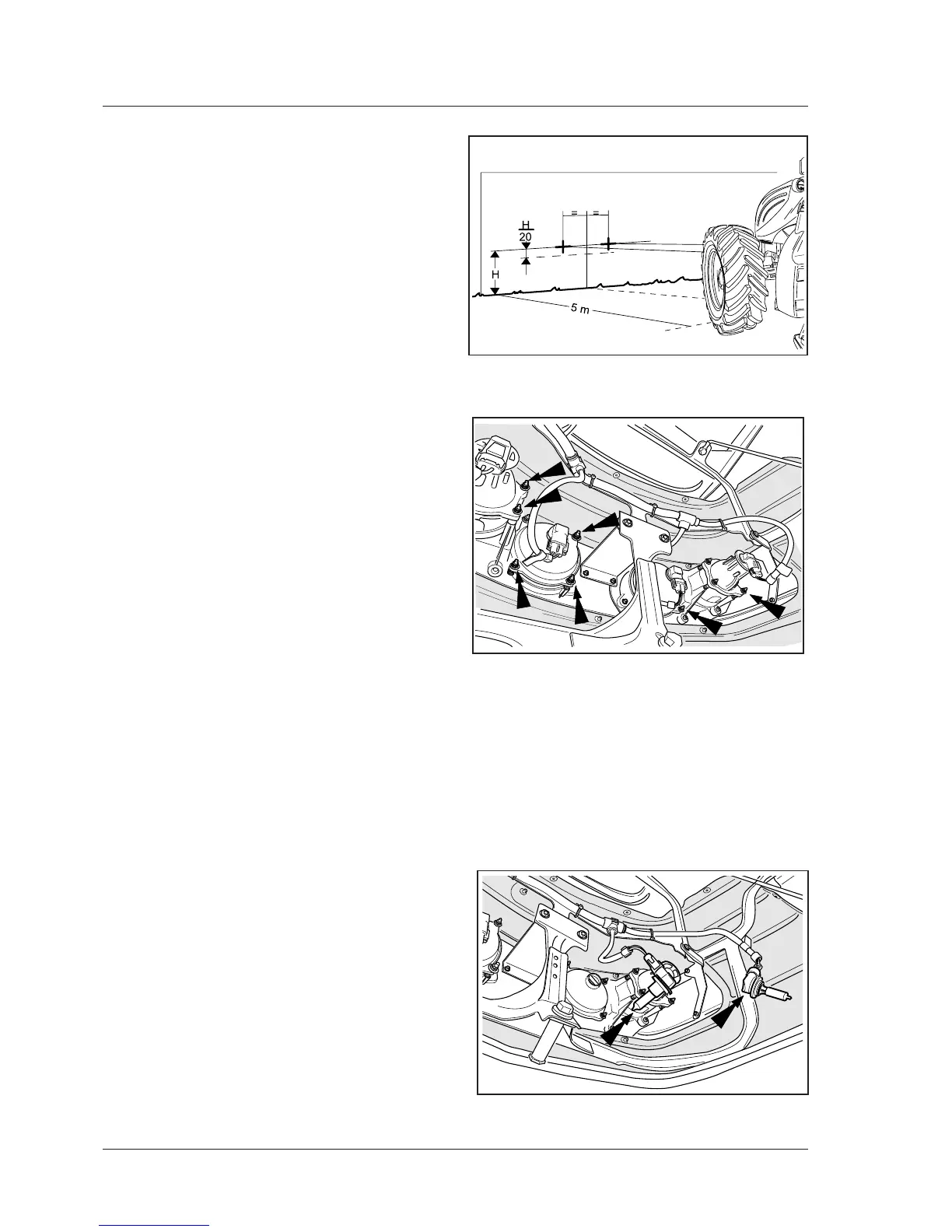

Checking headlight alignment
- Haltthetractoronlevelgroundfacingashadedwall
(preferablywhite).Thetractormustbeunloadedand
thetyrescorrectlyinflated.Marktwocrossesonthe
wallinfrontofthetractorheadlightcentres.
- Reversethetractor 5 meters(16.4ft)away from the
wall.
- Switchonthemainbeam.
 Thecentreofeachbeammustbeverticallyalignedwith
thecrossesonthewall.
 Amaximumoutwarddivergence of 130mm(5in)is
acceptable.
-Switchonthedippedbeams.
 Thelineseparatingthelightedareafromthedarkarea
must fall below the crosses and must be separated
fromtheircentresby atleast 1/20thof theheightof
thecrossesfromtheground.
-Adjusttheheadlightalignmentscrewstocorrectali-
gnmentasnecessary.
Checkingheadlightalignment
WARNING: Always use specific personal safety devices
for each operation.
