Controls - Cab
3
Heating, air circulation and air con-
ditioning in De Luxe cab [4.1.b]

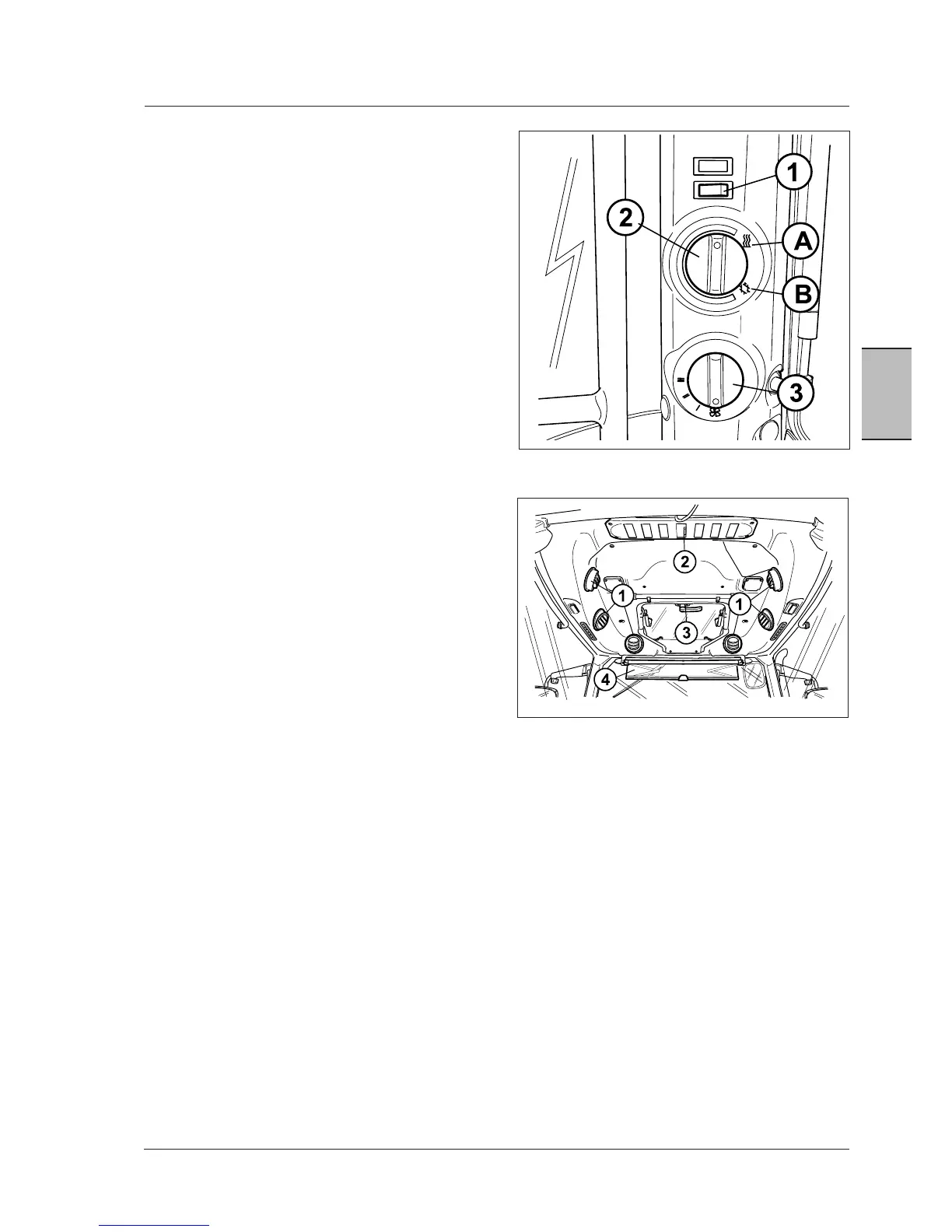

1 - Air conditioning switch:
-Presstoturnairconditioningon.
-Presstheswitchagaintoturnitoff.
2 - Temperature control knob
A-Warmair
B-Coldair
3 - Fan speed switch
0- OFF
I-Slow
2-Middle
3-Fast
Ventilation
Thecabventilationisoperatedbymeansof6airvents.
Positiontheairflowintherequireddirectionbyturning
thevents.
Theairthatflowsintothecabcanbedrawnfromeither
insidethecaboroutsidebymeansofthevents.
Air Recycling Inside The Cab
Therearvent(2)allowstheinternalairtoberecycled.
– Open vent: a great quantity of air is suckedup from
insidethecabby this ventandrecycledthrough the
airvents.
- Closedvent:airissuckedinfromtheoutside
 ntothecabafterpassingthrough
 theexternalfilters.
WARNING: Do not open the windscreen, the doors or
the side and rear windows during work. The noise in
the cab could rise to such level as to oblige the opera-
tor to wear headsets or other individual protection
against noise.
1-Airvents
2-Ventsforinternalairrecyclinginthecab
3-Handletoopenthesun-roof
4-Sunscreen.
