MCCORMICK X60.40 - Indicator Lamps; Warning Lamps; LCD Icons

63
Instruments and Programming
4

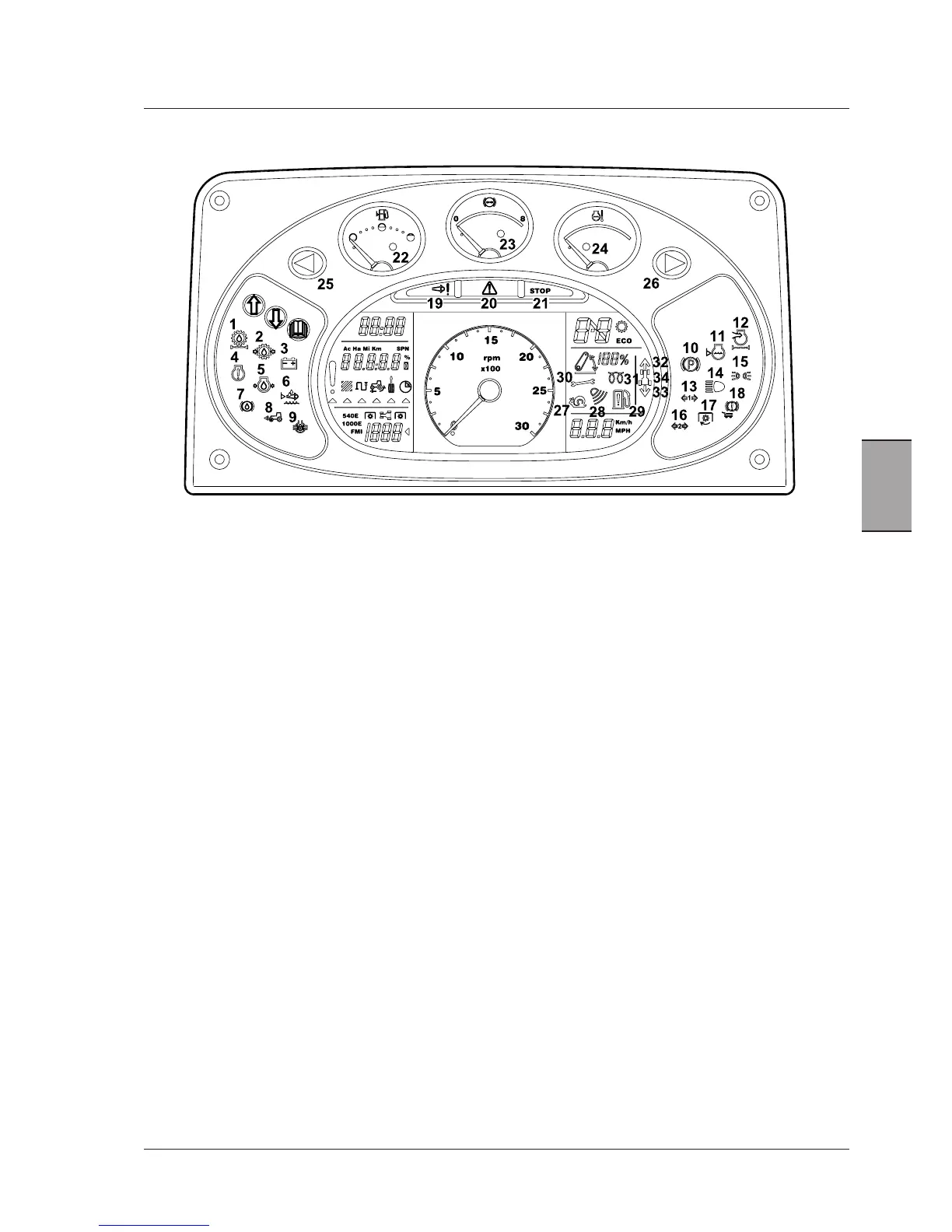

Indicator Lamps
Warning lamps

1 Hydraulicfilterclogging,red.
2 Warninglightforlowpressureintransmission
hydrauliccircuit,red.
3 Batterycharge,red.
4 Enginefaultwarning,yellow.AskyourDealer's
workshopforhelp.
5 Lowengineoilpressure,red.
6 (Notvalid)LowlevelofDEF(DieselEmission
Fluid),yellow.
7 (Notused)Lowoillevelinhydraulictrailerbrake
circuit,red.
8 4WDengaged,yellow.
9 Differentiallockengaged,yellow.
10 Parkingbrakeengaged,red.
11 Lowenginecoolantlevel,red
12 Engineairfilterclogging,yellow
13 1sttrailerindicator,green
14 Headlighthighbeamon,blue 
15 Sidelightson,green 
16 2ndtrailerindicator,green
17 RearPTOon,yellow
18 Hydraulictrailerbrakepressure,red(ifequipped)
19 (Notvalid)ErrorinDEFsystem,yellow
20Generalwarning,yellow
Tractormalfunction.Anerrorhasbeendetectedbythe
vehicle'sdiagnosticsystemandanerrorcodehasbeen
generated(activeerrorsonly).
21 Majorwarning,red.Stoptheengineandaskyour
Dealer'sspecializedworkshopforhelp.
22 Lowfuellevel,yellow
23 Airbrakepressure(optional),red
24 Highcoolanttemperature,red
25 Leftturnindicator, green 
26 Rightturnindicator,green
LCD Icons

27 Creeperengaged
28 Radarpresent(notavailable)
29 Waterdetectedinfuel(ifprovided).Drainfuel
filter.
30 Serviceintervalindicator.Servicethetractor.
31 Heater-Wait-to-start.
Electronicengine-Waitforthelamptogooffbefore
startingtheengine.
Mechanicalengine-Tooperatetheheater,pressthe
heaterbuttonthatactivatesthelamp.Thelampis
controlledbyatimer:assoonasitgoesoff,release
thebuttonandstarttheengine.
32 Forwardspeedindicator.
33 Reversespeedindicator.
34 Tractoricon:indicatesthereverseshuttleleveris
inneutral.
