6.HEADLAMPSWITCH-

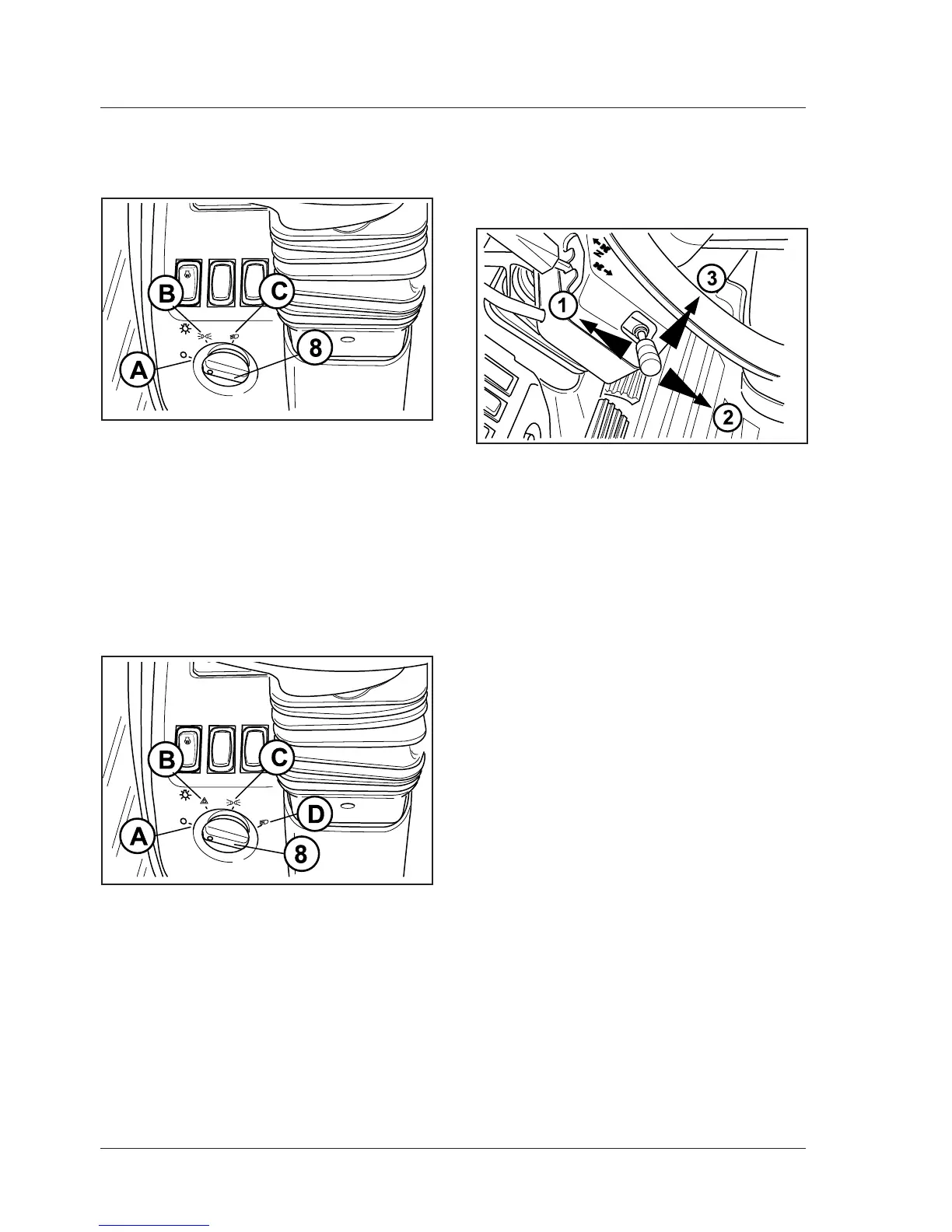

Three Position Switch
     
A.FirstPosition-AlllampsOFF.
B.SecondPosition-Frontpositionlamps,taillamps,li-
censeplatelampsandthesideconsoleilluminationlamp
willilluminate.Alsoanalogclusterilluminationlampswill
beON.
C.ThirdPosition - Front side lamps, tail lamps, license
platelamps,thesideconsoleilluminationlampandmain
headlampswillilluminate.
Four Position Switch
A.FirstPosition-AlllampsOFF.
B. Second position - ALL amber coloured light blink.
(Road-Daytime).
C. Third position - ALL amber coloured light blink. Tail
lightsandfrontlightslightup.(Road-night).
D. Fourth position - The light on the side console and
themainheadlightslightup.Theworklightsswitchis
activated(onfield).
Direction Turn Signal, Hi/Low Beam
Switch and Horn.
TURNSIGNALS:
Position1=right-handindicatoroperated.
Position2=left-handindicatoroperated.
NOTE: Self cancelling switch only: The turn signal lamps
will continue to flash until the steering wheel is turned in
the opposite direction. You can override this function to
cancel the indicator by moving the switch in the oppo-
site direction chosen.
HEADLAMP HI/LOW BEAM:
Position3=Withtheheadlamphi/lowbeamswitchinthe
thirdorfourthposition,pushthelevertowardthesteering
wheelthenreleaseit.Thehibeamintheheadlightswill
beselected(blueindicatorlightontheinstrumentpanel
willgoon).Liftingtheswitchagainwillselectlowbeam
(blueindicatorlampwillgooff).
WithheadlampswitchinFirstorSecondposition,lifting
theswitchtowardsthesteeringwheelandreleasingwill
flashtheheadlamps.
HORN:
Presstheendoftheswitchtooperate.
