McHale Fusion 3 Baler & Wrapper
103
transport the side tip frame behind a Fusion 3. It must also be noted that the side tip
frame adds 1.7 metres to the overall length of the Fusion 3. Always allow for the tail
swing when turning the Fusion 3 and side tip frame.

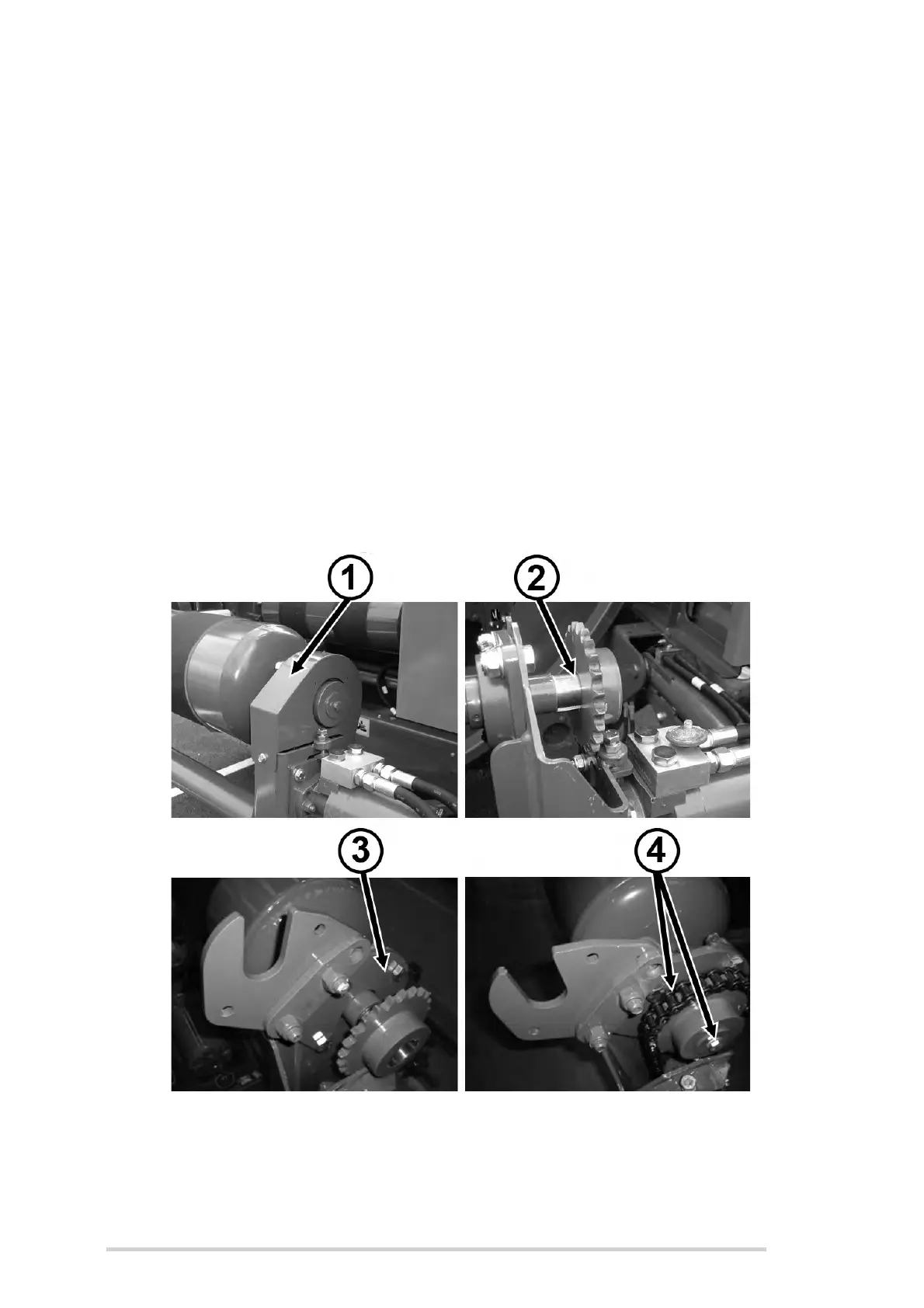

12.1.4 Fitting the side tip to the Fusion 3
1. Secure rear roller using suitable lifting gear. Remove rear cradle roller chain
guard. Remove the M10 x 25 bolt from the end of the rear roller sprocket.
Rotate rear roller manually to locate joiner-link in the drive chain. Remove link
and chain.
2. Pull the sprocket out on the end of the shaft, as far as possible.
3. Remove the four (4) M16 nuts and bolts, which hold the flange bearing. Fit right
hinge mounting bracket (ABD00053) using four (4) M16 x 55 bolts (CFA00349)
and nyloc nuts. Ensure bolts are tightened fully.
4. Refit sprocket and secure using M10 x 25 bolt. Refit drive chain and joiner-link.
5. Refit rear cradle roller chain guard, having removed pop-out section to allow
for new bracket.
6. To fit left mounting bracket (ABD00038) to the idle end of the roller, remove the
four M16 nuts and bolts.
7. Fit the bracket, using four M16 x 55 bolts (CFA00349) and nyloc nuts, and two
M12 x 35 bolts and nyloc nuts.Place side tip frame assembly down into
mounting brackets, using suitable lifting gear.
