McHale Fusion 3 Baler & Wrapper
33
5.2 Control box installation
The electronic control box must be located inside the tractor cab in the operator’s field
of vision and within easy reach of the red emergency stop button. It is secured to the
glass using the suction pad on the rear. Ensure that the cable to the machine is not
under tension and not near sharp edges, etc. The electric power supply is obtained
from the euro socket of the tractor.
Connect the supplied fused electric power lead to the tractor battery ensuring to route
away from sharp edges and hot surfaces. The control box is not waterproof, it must be
protected from rain. See “Electronic Control System” on page 58.
5.3 Attaching to drawbar
The drawbar is to be attached so that the McHale Fusion 3 is horizontal to the ground
as in “Drawbar adjustment” on page 54. Machines are set up for hitching to the tractor
drawbar as shown in Figure 5.a below. Once the tractor is attached to the drawbar,
attach the PTO shaft. Depending on the country of use a safety chain may also be
required. Detach in reverse order of attachment.

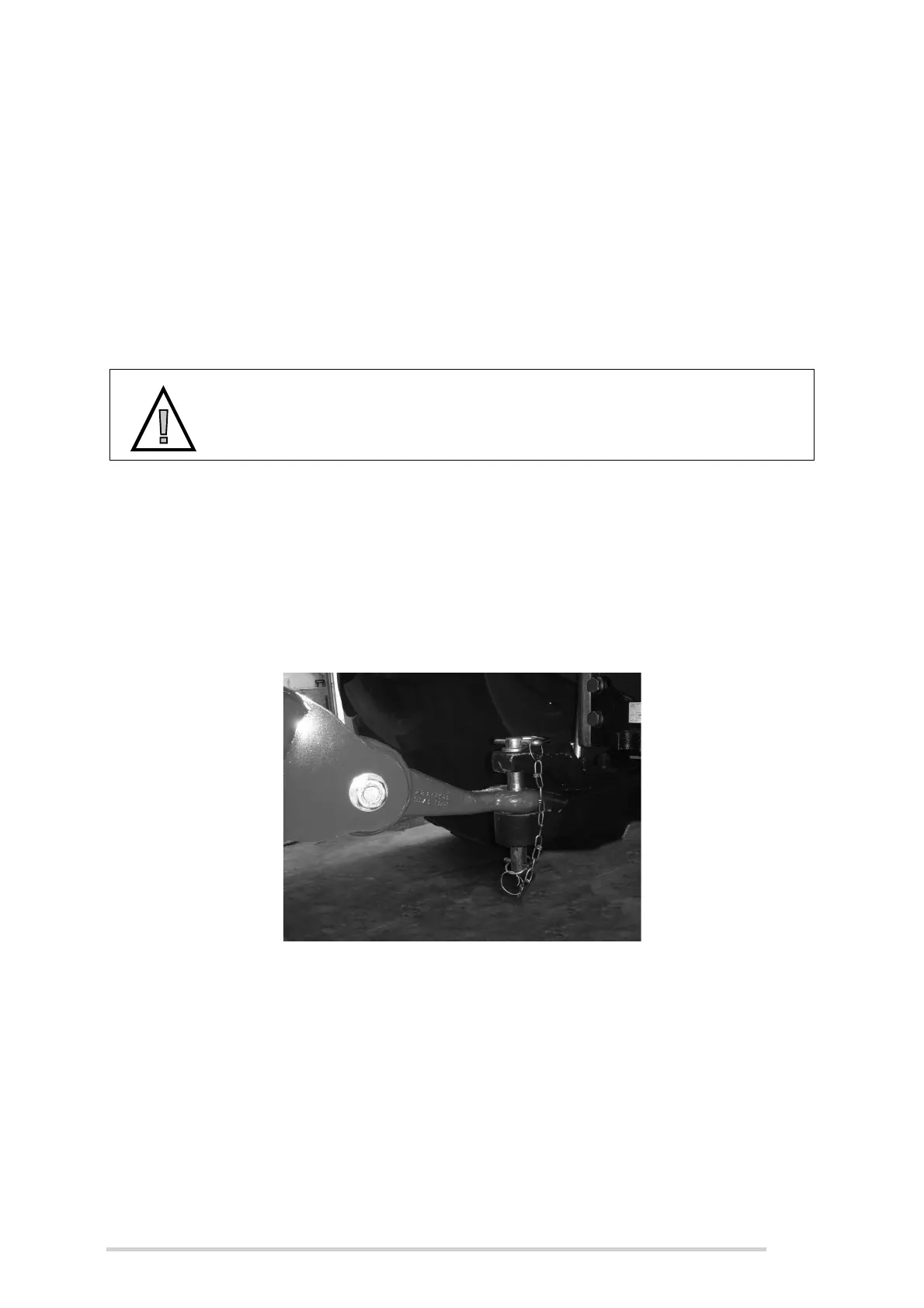

Figure 5.a - Drawbar attachment
5.4 Attaching ‘break-away’ brake
The McHale Fusion 3 is fitted with a hand brake which must be applied when the
machine is detached from the tractor. The hand brake handle has a rope fitted to a
calibrated ring which must have the other end securely fixed to the tractor each time
the Fusion 3 is attached to the tractor. Should the Fusion 3 hitch ever become
detached from the tractor, this rope will apply the brakes on the Fusion 3.
CAUTION: Electrical Power Supply
Do not use any other electric power supply for the electronic control
system, otherwise damage may occur.
