8.4 Dispenser adjustment
The dispenser rollers are set for a standard film stretch of 70%. Optional sets of
dispenser gears for both 55% and 64% film stretching are available from your McHale
dealer.

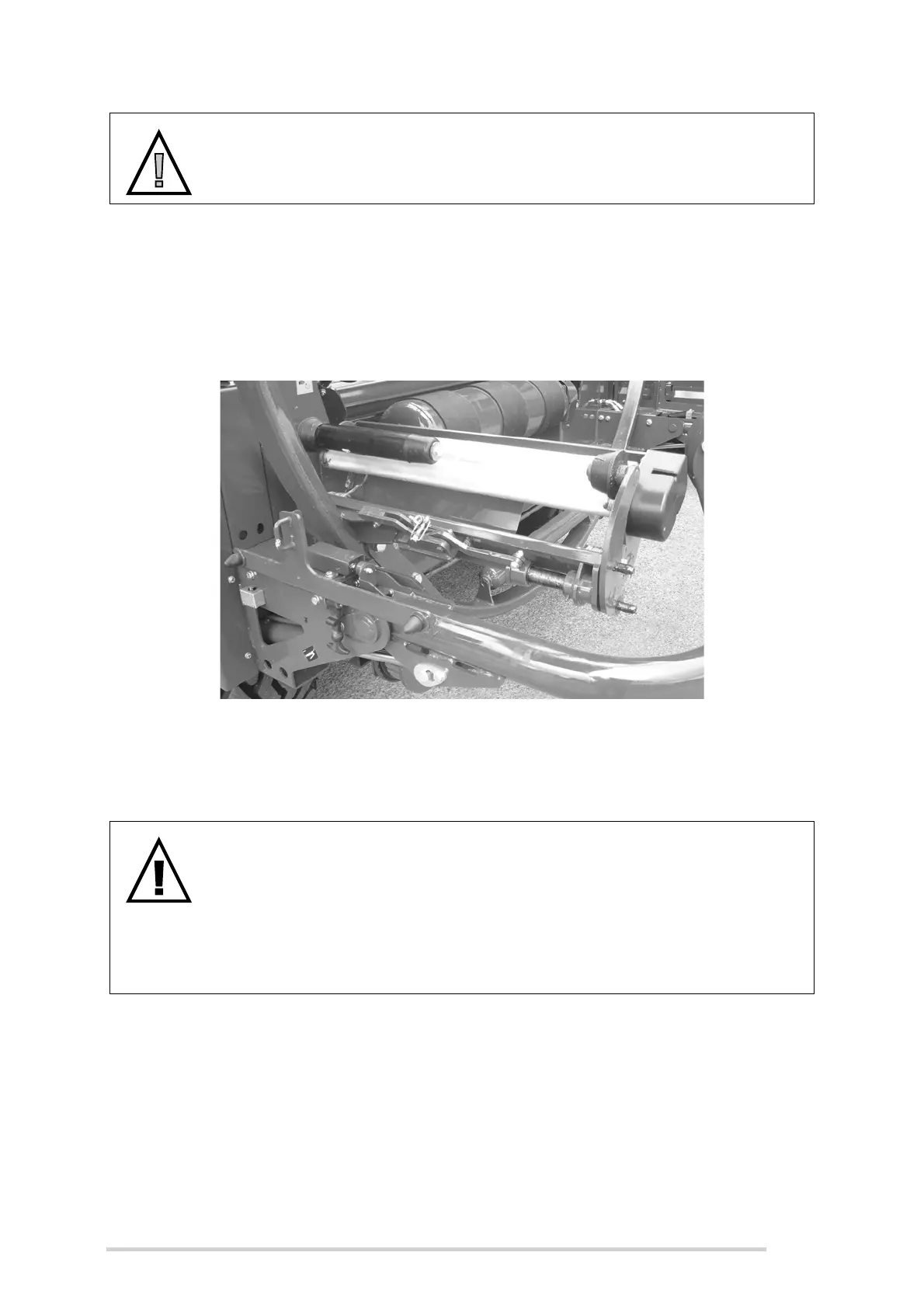

Figure 8.j - Dispenser in the “home” position
8.5 Cut and hold system
The cut and hold system on the McHale Fusion 3 is designed to operate in conjunction
with both the dispenser and table rollers to cut the plastic after a desired amount of film
wrap has been applied to the bale, as set on the control box. See previous sections, for
more information on the wrapping process. The cut and hold system operates by way
of a slider (D) that slides in and out using a hydraulic ram. The slider (D) then clasps
the film and retracts to hold the film between (C) and (D) which is then cut at knife point
(B). Once the wrapping process resumes, the film is then released.
CAUTION: Do not tip off bales while moving
The machine should not be moving when the bale is tipped off, as this
greatly increases the risk of plastic film damage.
WARNING: Beware of knives & accumulators during maintenance
The cut and hold system utilises knives and accumulators in order to
function. Beware of serious injury when carrying out any maintenance in
this area. Turn off the tractor and remove the key from the ignition. Wear
protective gloves and clothing, at all times! Also, never carry out any
work on the hydraulic hosing because even when the machine is off,
hosing remains under high pressure due to the accumulators.
