See the following figure for possible piping layout. Ensure that the machine operator is
familiar with all tractor connections and fittings.

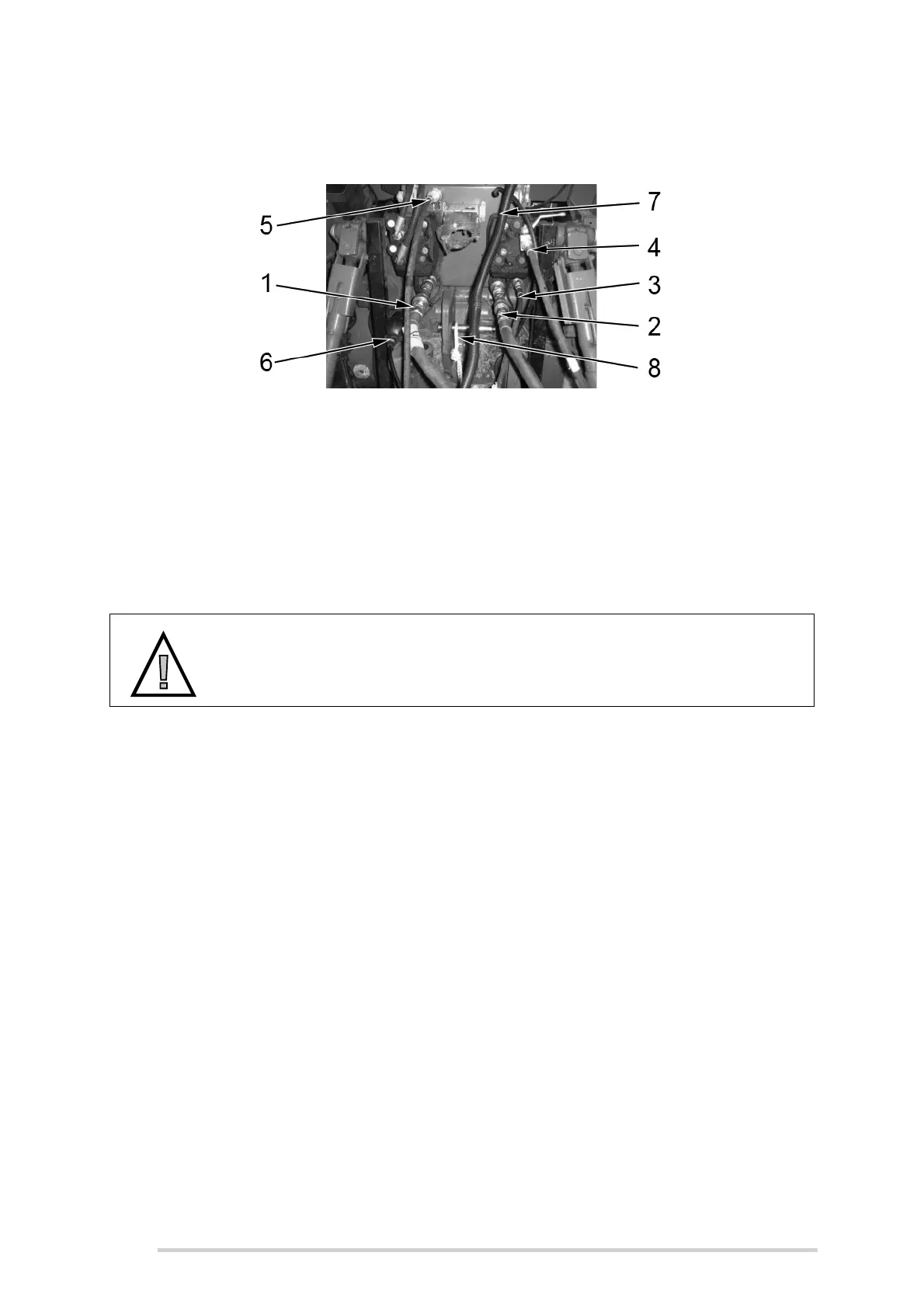

Figure 5.c - Possible layout of hydraulic hosing and electric looms
5.11 Connecting the control box
The control box is to be connected to a 12 V / 20 Amp power supply either using the
supplied euro socket or the battery power cable. A good power supply is critical for
proper machine operation as the electronic control box is the main interface between
the operator and the machine.
CAUTION: Do not connect control box to a 24 V power supply
Do not attempt to connect control box to a 24 V power supply, as
machine component damage will result.
