McHale Fusion 3 - Pick-up Reel Height Adjustment

McHale Fusion 3 Baler & Wrapper
86
As a result, a greater amount of material will be fed to the outer edges of the bale than
to the centre. This will result in concave-shaped bales.

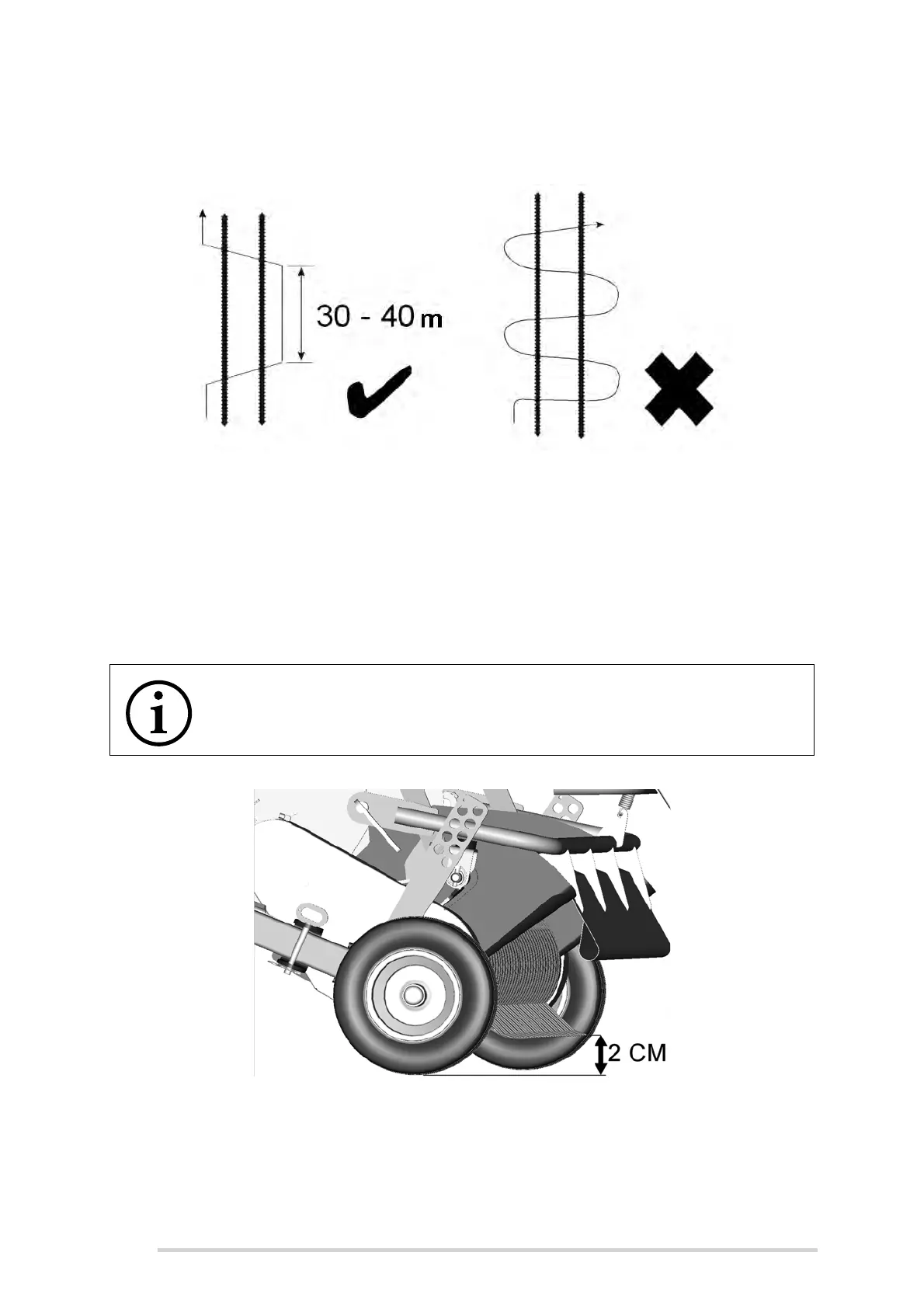

Figure 10.a - Swath widths - correct & incorrect
10.3 Pick-up reel height adjustment
Before working in the field unlock and swing the pickup guide wheels forwards and lock
them again carefully. Use the appropriate hole in the adjusting bar so that the pickup is
balanced and at the optimum working height with the pick-up tines being 2 cm above
the ground.
Figure 10.b - Pickup adjustment
NOTE: Wear and tear of pick-up tines
Working with the pick-up tines set too low will leave them susceptible to
breakage and rapid wear!
