McHale Fusion 3 Baler & Wrapper
37

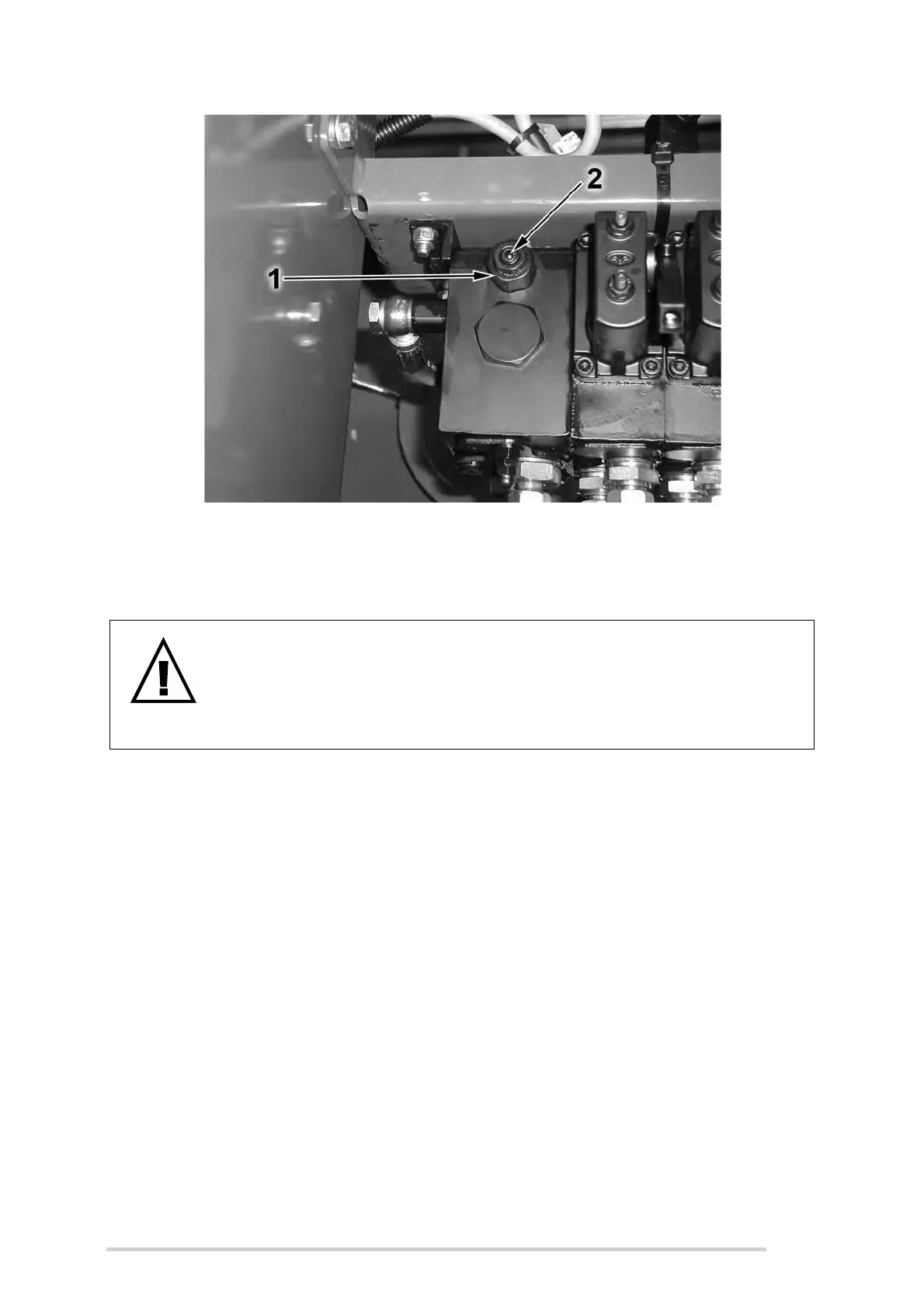

Figure 5.b - Hydraulic spool valve setup
5.10 Attaching hydraulic hosing to the tractor
There are a total of five hydraulic hoses (four on air brake models)* and three electrical
connections that must be connected to the tractor. They are as follows:
1. One ¾” female quick release for return line. It must be noted that the return line
much have a free flow to the tank. (Where a ¾” coupling is not available on the
tractor, a special ½” male quick release is supplied with the Fusion 3 in the
toolbox and should be used to replace the ¾” coupling fitted)
2. One ¾” male quick release for feed line (Where a ¾” coupling is not available
on the tractor, a special ½” male quick release is supplied with the Fusion 3 in
the toolbox and should be used to replace the ¾” coupling fitted)
3. One ⅜” male quick release for load sensing (if tractor is load-sensing)
4. One ½” male quick release for pickup reel (with on-off tap)
5. One hydraulic brake coupling *
6. One 12 V / 7 pin lighting socket
7. One 12 V / 20 Amp euro socket (Machine loom to control box shown)
8. One break away rope fixed securely to the tractor
* In the case of air brakes, there must be two air brake couplings available
WARNING: Turn off tractor and remove key before connecting
hydraulic hosing
When connecting hydraulic hosing to the tractor, ensure that the tractor
engine is turned off and that the ignition key is removed. Ensure that all
hydraulic connections are correctly tightened.
