6.9 Gear box oil

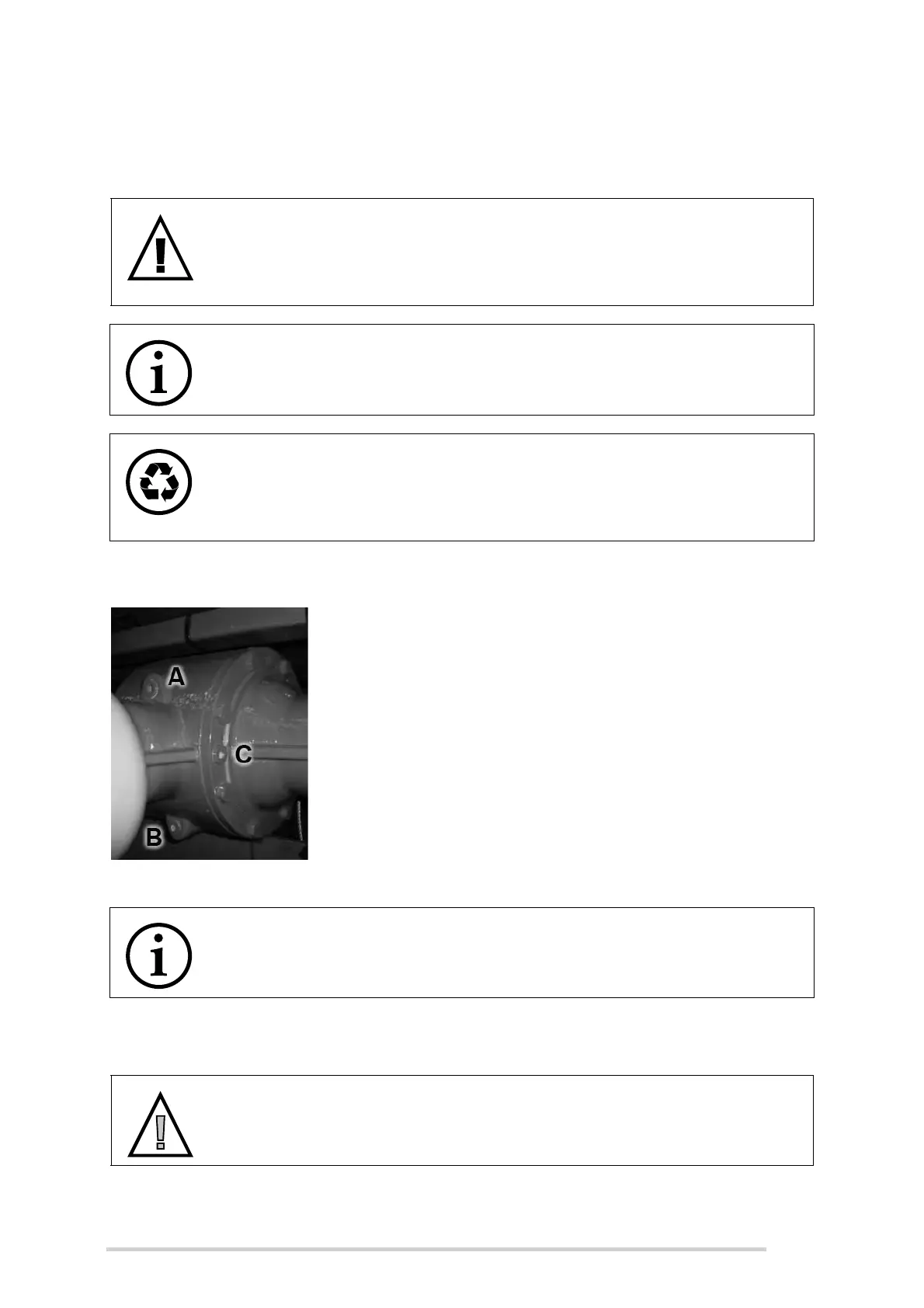

The gearbox is located to the rear of the PTO shaft.
To drain and add oil to the gear box, carry out the following procedure:
1. Remove the filler-plug (A) followed by drain-plug
(B), using an 8 mm Allen key, and drain oil into a
suitable container. This is best carried out while the
oil is still warm, i.e. soon after use. Replace the
drain plug (B), tighten and dispose of waste oil
responsibly.
2. Remove the level-plug (C) and add between 2 and
2.2 litres of SAE 80W/90 grade oil, or until oil begins
to seep out at C. After this replace the oil once per
season or once per 10,000 bales, whichever comes
first.
3. Replace the level-plug (C) followed by filler-plug (A)
and tighten carefully.
6.10 Tyre inflation pressures
WARNING: Ensure the tractor is shut down before changing oil
Ensure that the tractor engine has been shut down, the key has been
removed from the ignition and the brakes have been applied before
changing oil.
NOTE: Oil must be drained & filled after the first 5 hours of use
After the first 5 hours of use, the gear box oil must be completely drained
and filled with SAE 80W/90 grade oil.
ENVIRONMENT: Safe disposal of oil
Respect the environment! Never spill oil or grease on the ground, never
pour them down the drain and never discard them where they can pollute
the environment. Always take waste materials to a recycling centre.
NOTE: Do not overfill the oil
Do not overfill the oil, as this will result in overheating and oil leakage.
CAUTION: Check the tyre pressure weekly
Check the McHale Fusion 3 tyres weekly for the pressures outlined in
the following table.
