McHale Fusion 3 Baler & Wrapper
52
6.11 Wheel chocks
Wheel chocks are provided to secure the baler wheels anytime the baler is to be
detached from the tractor, or if the machine is to be stored or parked up. They are
located on the left of the machine, inside the main panel, while in the transport position.

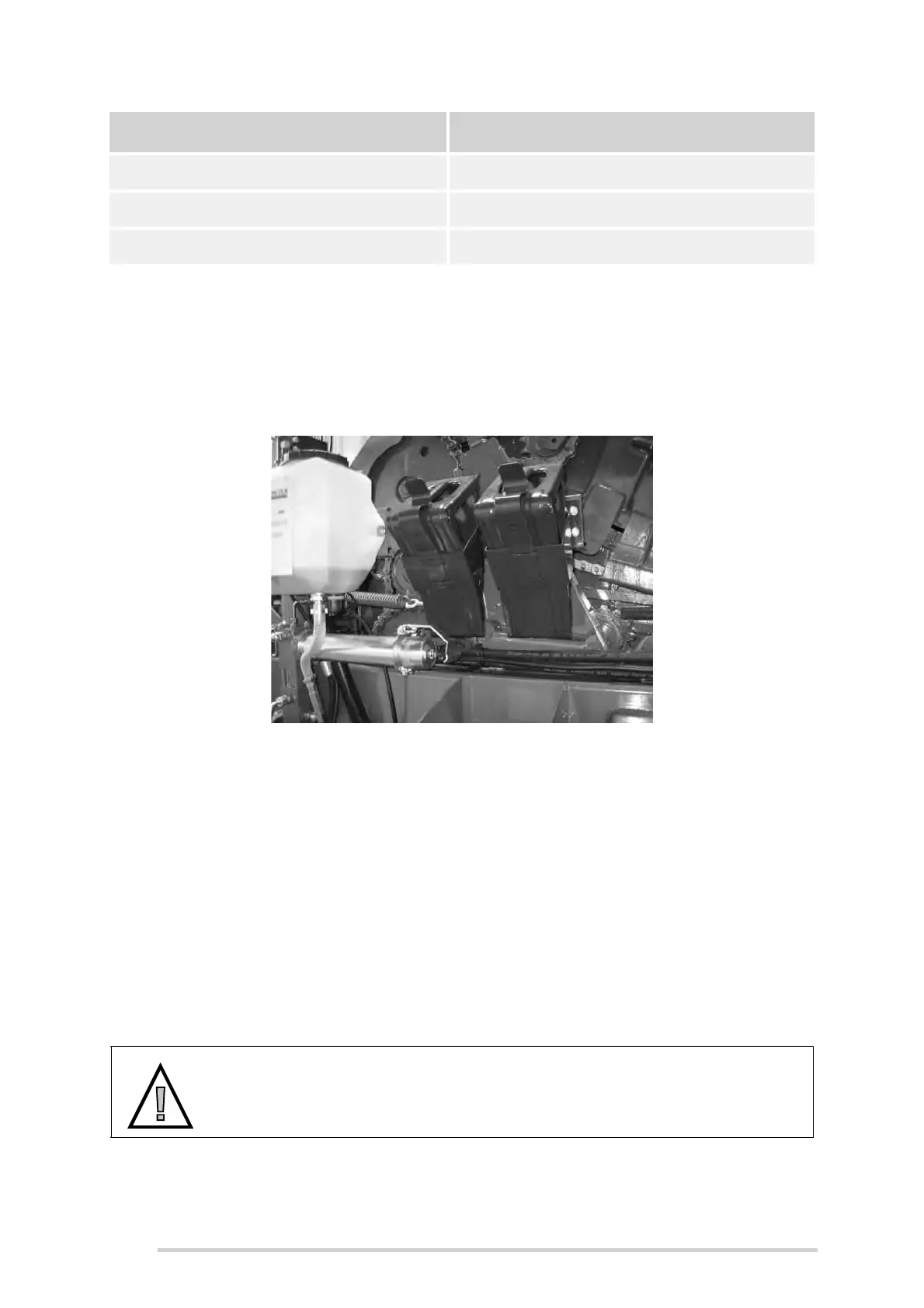

Figure 6.i - Wheel Chocks
6.12 Drawbar and PTO shaft stand usage
There are three (3) types of drawbar stands available on the Fusion 3, depending on
the country of use, one will come as standard:
1. A swing down fixed length stand (low hitch) - Type A
2. A swing down screw stand (low hitch) -Type B
3. A fixed screw down stand (high hitch) - Type C
The drawbar stands are to be used every time the machine is disconnected from the
tractor.
Tyre type Pressure
560/60 R22.5 1.65 bar (24 P.S.I.)
650/50 R22.5 (Optional Specification) 1.65 bar (24 P.S.I.)
170/60 - 8 (Pick-up tyre) 2.07 bar (30 P.S.I.)
CAUTION: All stands must be rested on a solid footing
All stands must be rested on a solid footing, on level ground and also
supplied wheel chocks must be used.
