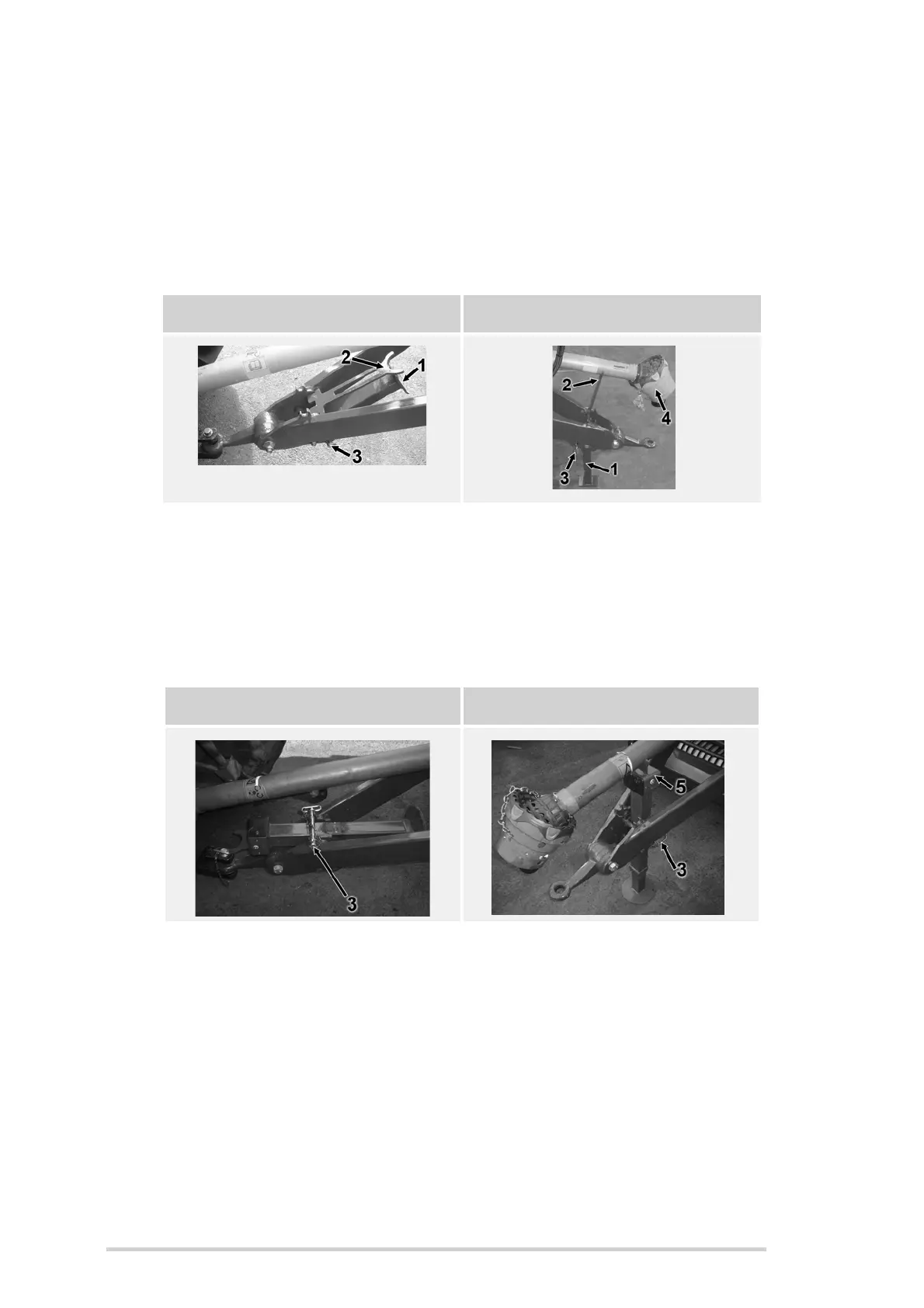

Type A - The following applies to the swing down fixed length stand (low hitch):
 Transport working position: While using the machine, ensure that the drawbar
stand (1) is raised full with stand pin (3) in alternate hole position and ensure
PTO shaft stand (2) is in the lowered horizontal position.
 Storage position: Ensure that the stand pin (3) is properly placed in the lower
slot to prevent the stand from collapse. Then place PTO shaft stand (2) in an
upright position it in order to support the PTO shaft (4).
Type B - The following applies to swing down screw stand (low hitch):
 Similar to type “A”, except stand pin (3) is in the upper slot, in the transport
(working) position. It should be wound up and retracted fully as shown before
removing the handle. The main difference being, that the drawbar height is
now fully adjustable and the PTO shaft stand (5) is an integral part of the
assembly.
.
Type C - The following applies to the fixed screw down stand (high hitch):
 Stand type C is the only type supplied with the high drawbar hitch option and
is available as an option on the low drawbar hitch machines.
 In order to elevate the drawbar, rotate the jack handle (1) in a clockwise
direction as shown in the figure below. In order to lower the drawbar, rotate
the handle in a counter-clockwise direction.
 When the drawbar has been safely connected to the hitch on a high hitch style
tractor and the machine-weight taken off the stand (by rotating jack handle (1)
in a counter-clockwise direction) the lower part of the stand (2) can be
retracted quickly by removing the quick-release pin (3) (having first removed
Transport (Working) Position Storage Position
1
Transport (Working) Position Storage Position
