McHale Fusion 3 Baler & Wrapper
76
11. Slot the knotted end of the film in the left hand side slot of the rear wrapping
roller as shown in Figure 8.f.
12. Grab hold of the dangling film on the right hand dispenser and slot the knotted
end of the film in the right hand side slot of the rear wrapping roller, as shown
in Figure 8.g.
13. Close the door firmly making sure that both primary and secondary latches
have been engaged.
WARNING: Do not clamp film in the “cut & hold” mechanism
Do not attempt to clamp plastic film in the “cut & hold” mechanism as this
action may result in serious injury!
NOTE: Resume a cycle interrupted by “Out of film” error symbol
Pushing the “Resume” on the control box will complete the wrapping
cycle of a bale, that is interrupted by an “Out of film” error symbol shown
in Figure 8.h.

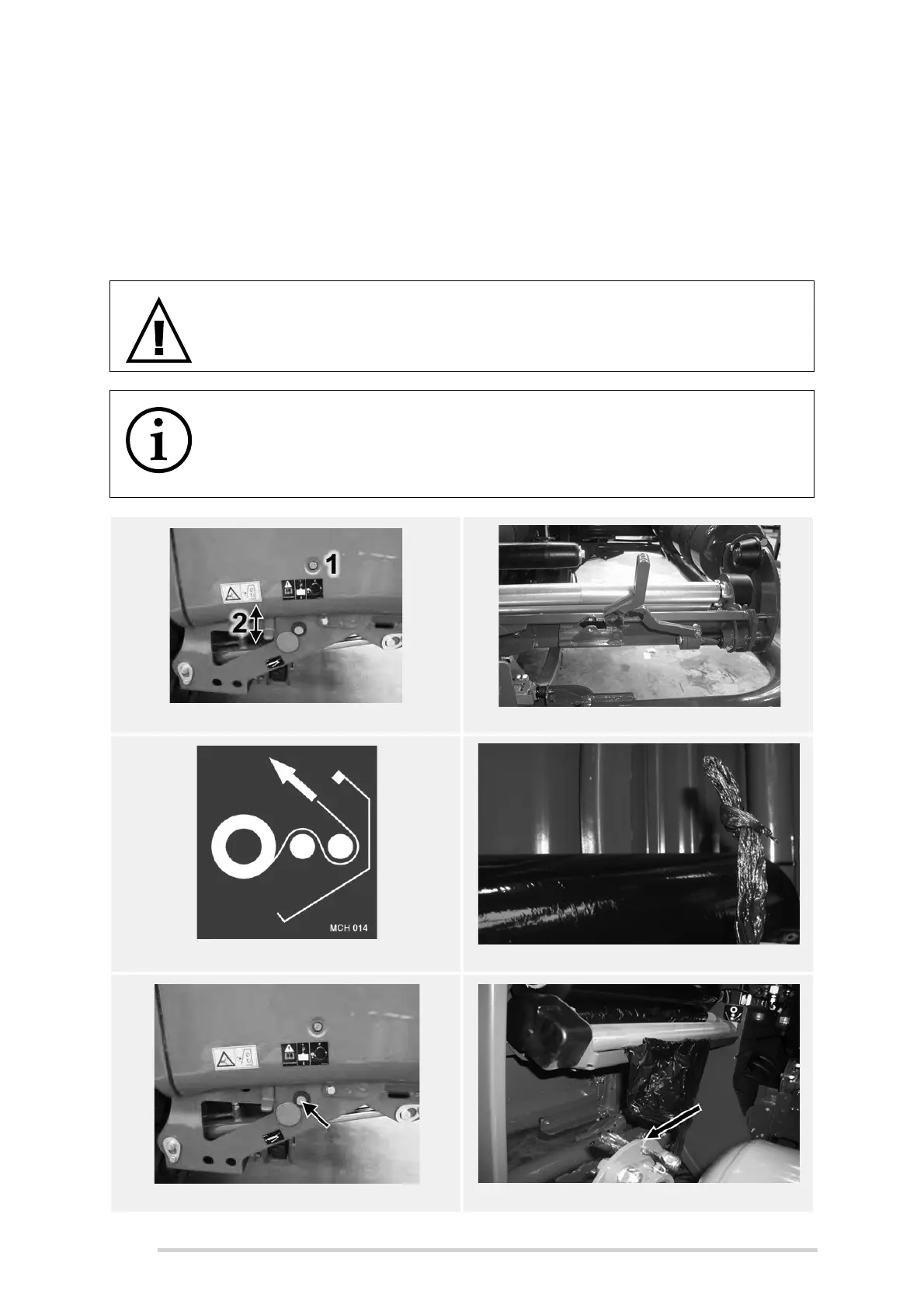

Figure 8.a - Door Latch
Figure 8.b - Film roll lock (open)
Figure 8.c - Film threading diagram
Figure 8.d - Film knot
Figure 8.e - Dispenser Park Button
Figure 8.f - L.H.S. Film slot
