3.16 –Substitution of Elevation motor
Tools needed :
• 5,5 mm wrench
• 8 - 10mm Allen key
• 17 - 19mm wrench
To do this you must pick up the treadmill and stand on a table, leaving free the part where are the
fixing screws.
Remove the protective cover of the control board placed under the engine of elevation, with 5,5mm
wrench and unplug the connectors J3 and J7.
WARNING: At a time when it is removed the screw that fixing the elevation motor to
the cart, the gas spring mounted in parallel to the engine, push the cart to the maximum excursion
with great force.
Ensure that there is enough space in this movement and especially keep your hands away until the
system is stopped.
At a time when it is removed the screw that fixing the elevation motor to the cart, the gas spring
mounted in parallel to the engine, push the cart to the maximum excursion with great force.
Ensure that there is enough space in this movement and especially keep your hands away until the
system is stopped.

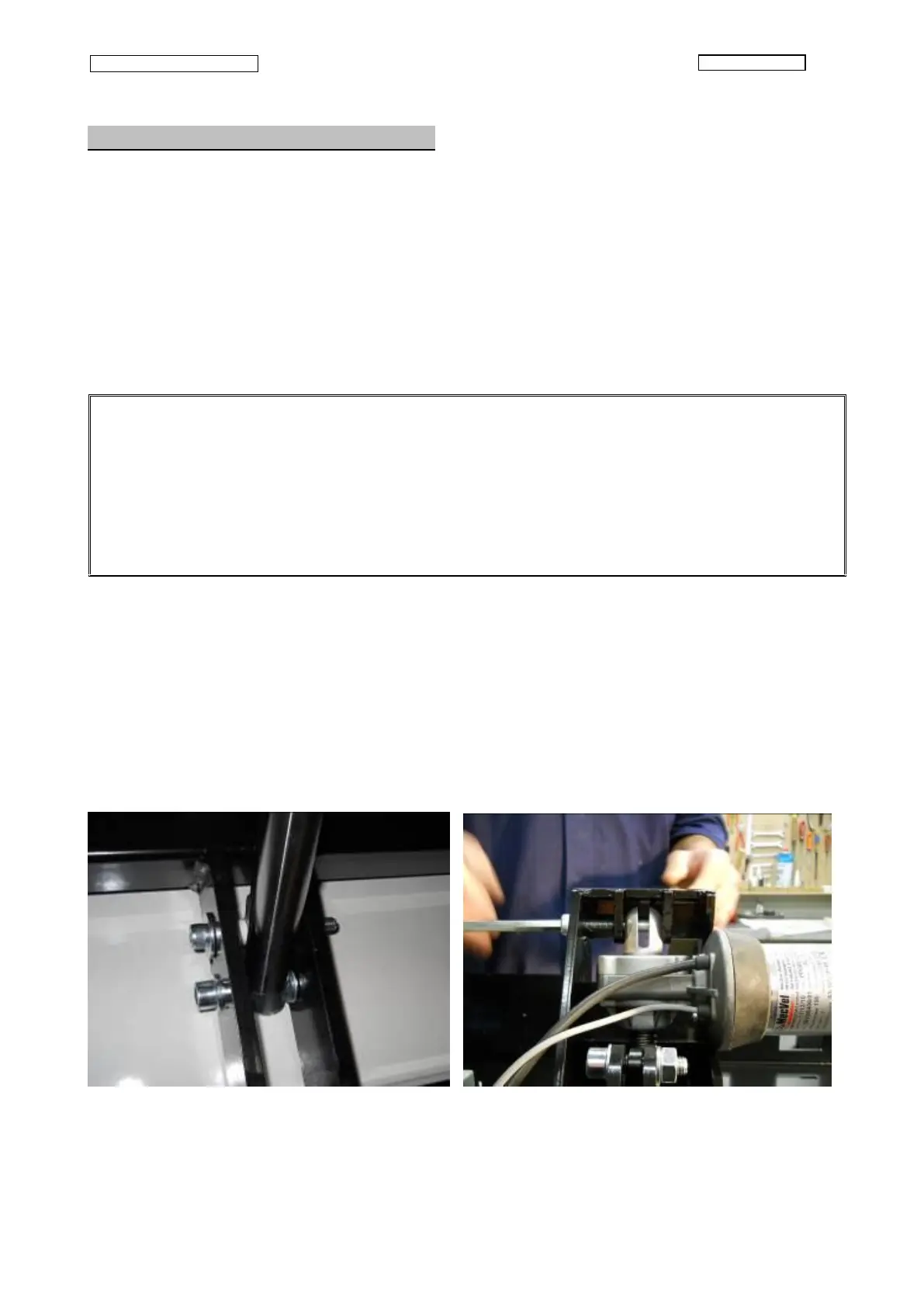

With the Allen wrench 8-10 and 17-19 wrench, loosen the screw that fixing the elevation motor to
the cart and then, bearing in mind the earlier warning, remove the screw(Fig.18).
After this operation, we can remove the screw fixing in the upper support to replace the
actuator(Fig.19).
Fig.18 Fig.19
