5.21 – Security switch test
Tools needed :
• Multi meter
Lift the lid interlock terminal cover from the safety switch (Fig.37) and with the multi meter check
the correct operation of the terminals at the ends (NA).
Pressing the rotary switch auction, must be continuity between the terminals, otherwise the switch is
damaged and must be replaced.

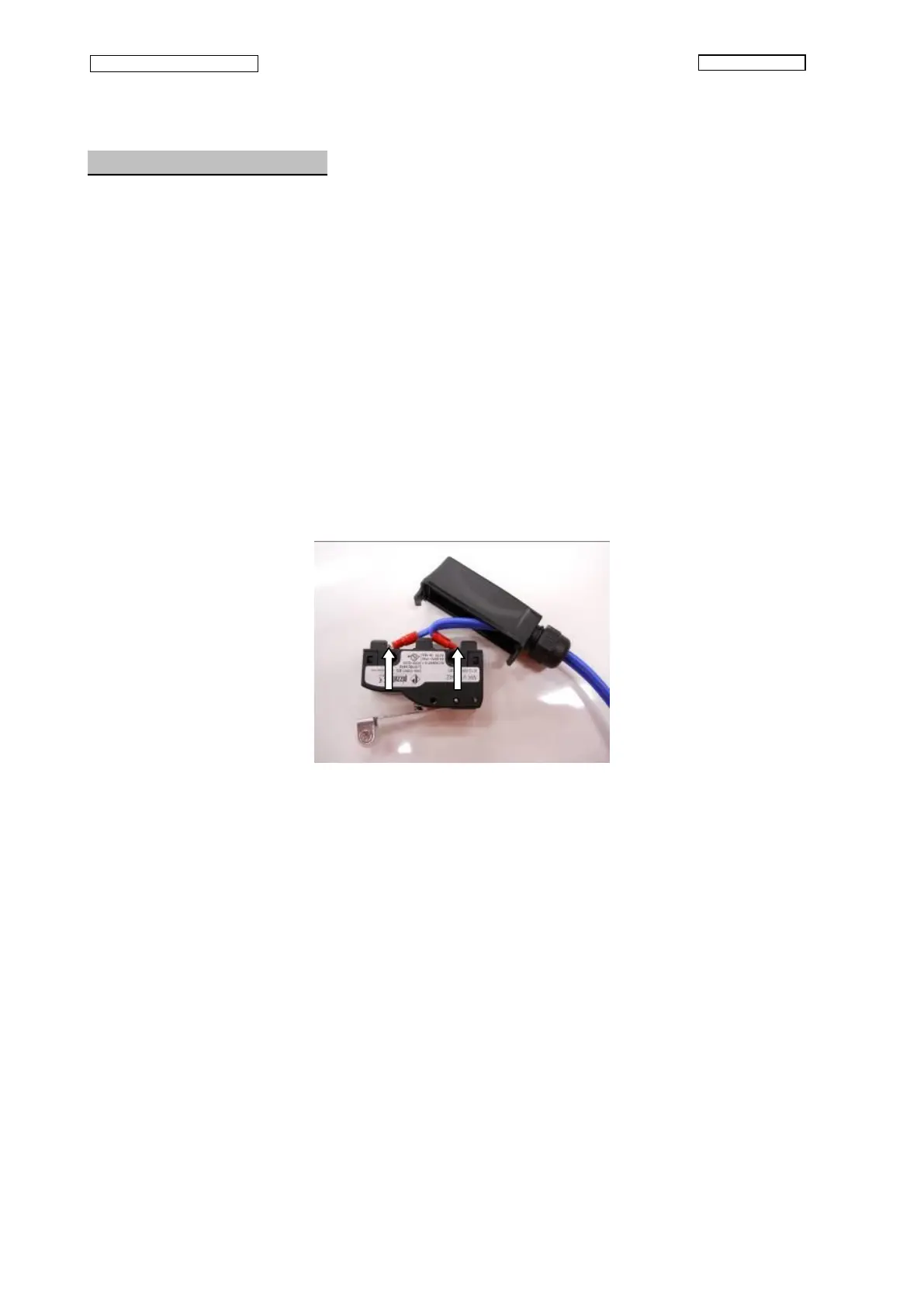

Fig.37
