6.2 - Tautness Check of Drive Belt
This check is carried out by setting the belt in motion to verify if the drive belt slips or not when
operating at full load.
To set the belt in motion it is necessary to work with the hood open and the device switched on.
To turn the device on, follow the sequence of tasks indicated below:
1) lock the safety contact into closed position (Fig. 38)
2) connect the plug to the mains
3) turn the main switch to the ON position
WARNING:
From this moment on, the machine is under tension, and you are advised to be extremely careful
in order to avoid accidental contact with the parts under tension
After having set the belt in motion (1,6 Km/h), we must climb on the belt and forcefully stop the
belt temporarily with our feet(Fig.39).
During this operation you need to check that the drive belt , the flywheel, the roller and the running
belt work perfectly.
If the roller and running belt don’t move otherwise the flywheel is moving during this operation
then it must tense the belt. If the running don’t move but the flywheel, the belt, the roller are
moving during this operation it must tense the running belt.
If all the components listed above are running at the same time then the test is OK..

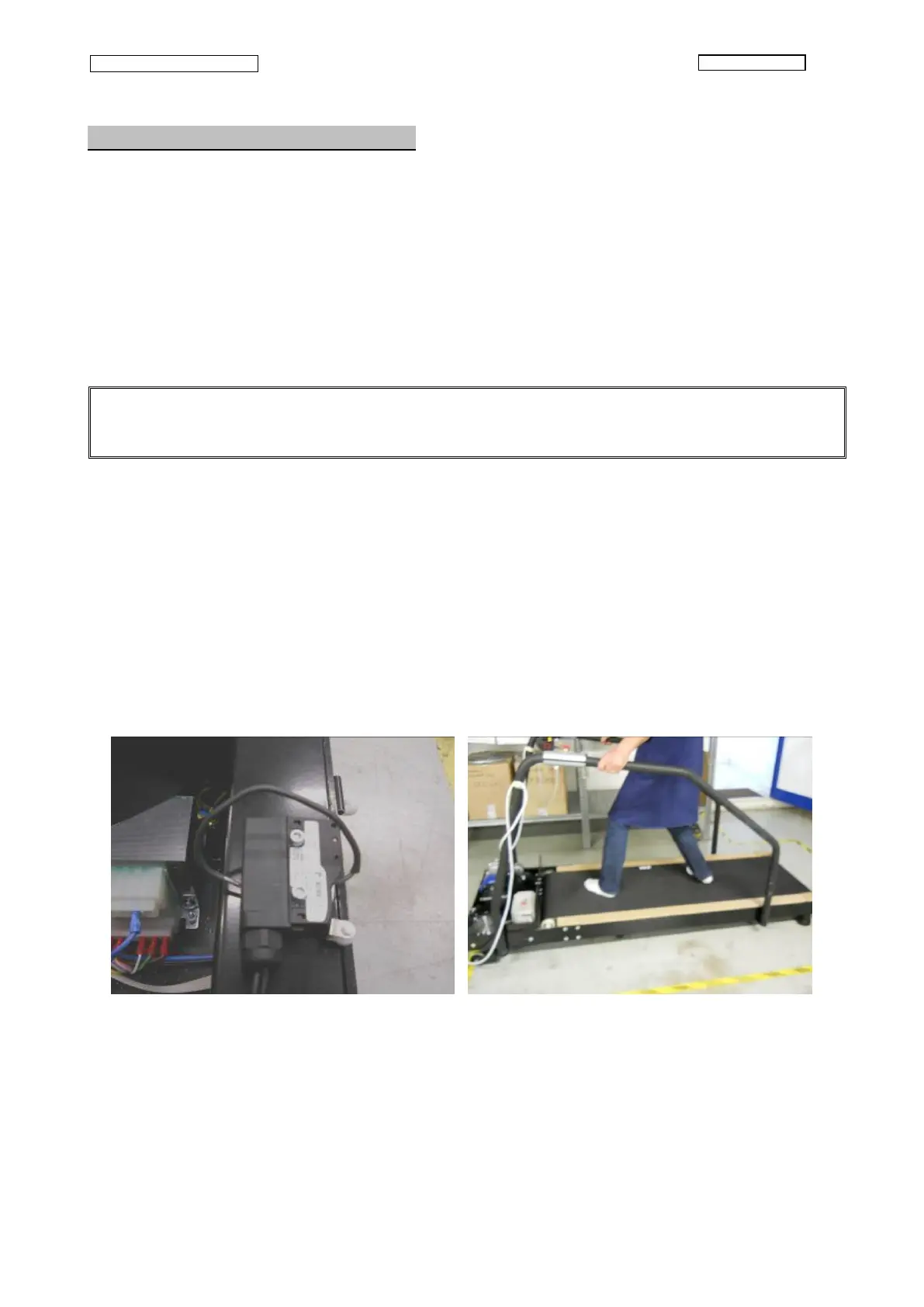

Fig.38 Fig.39
