6.5 - Tautness Check of Running Belt
To perform this check it is necessary to set the belt in motion, to verify if the running belt slips or
not on the front roller when operating at full load.
To set the belt in motion it is necessary to work with the hood open and the device switched on. If
the treadmill is not switched on, follow the guidelines described in paragraph 6.2.
After having set the belt in motion (1,6 Km/h), we must climb on the belt and forcefully stop the
belt temporarily with our feet(Fig.39).
During this operation you need to check that the drive belt , the flywheel, the roller and the running
belt work perfectly.
If the front roller, the drive belt and the flywheel motor are perfectly working the check result is
OK.
6.6 - Tautening of Running Belt
Essential tools:
• 13-mm wrench
To perform this check it is necessary to set the belt in motion.
To set the belt in motion it is necessary to work with the hood open and the device switched on. If
the treadmill is not switched on, follow the guidelines described in paragraph 6.2.
Start the treadmill and adjust the running belt with the two bolts illustrated (Fig. 41) until the lower
surface of the tape (the one under the wood base) is perfectly horizontal and parallel to the surface
of the fund.
During this operation check that the belt remains centred between the wheels of directionality
placed under the frame.
Is important to know that the tape moves in the opposite direction to the bolt we're screwing

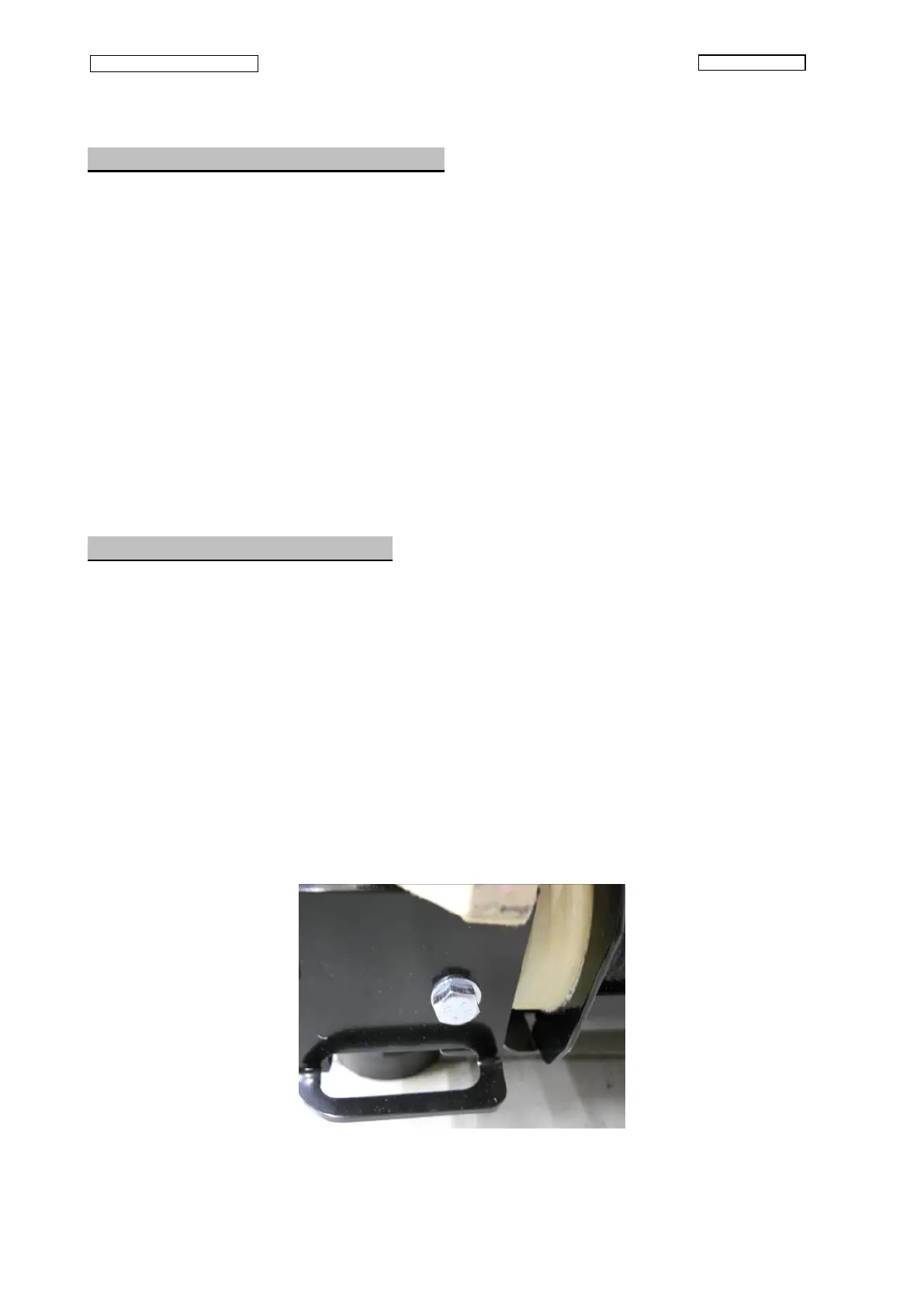

Fig.41
