Service Manual 800 series Rev. 1/01.07.2019
35
Medisoft RAM Italia S.r.l. - All rights reserved
6.3 - Tautening of Drive Belt
Essential tools:
• 10mm wrench
Switch off the treadmill by performing the following tasks:
1) turn the main switch to the OFF position.
2) disconnect the plug from the mains.
3) release the safety contact to the position open.
Use a 10mm wrench to loosen the screws that secure the support of the belt tensioner roller
containment tank engines.

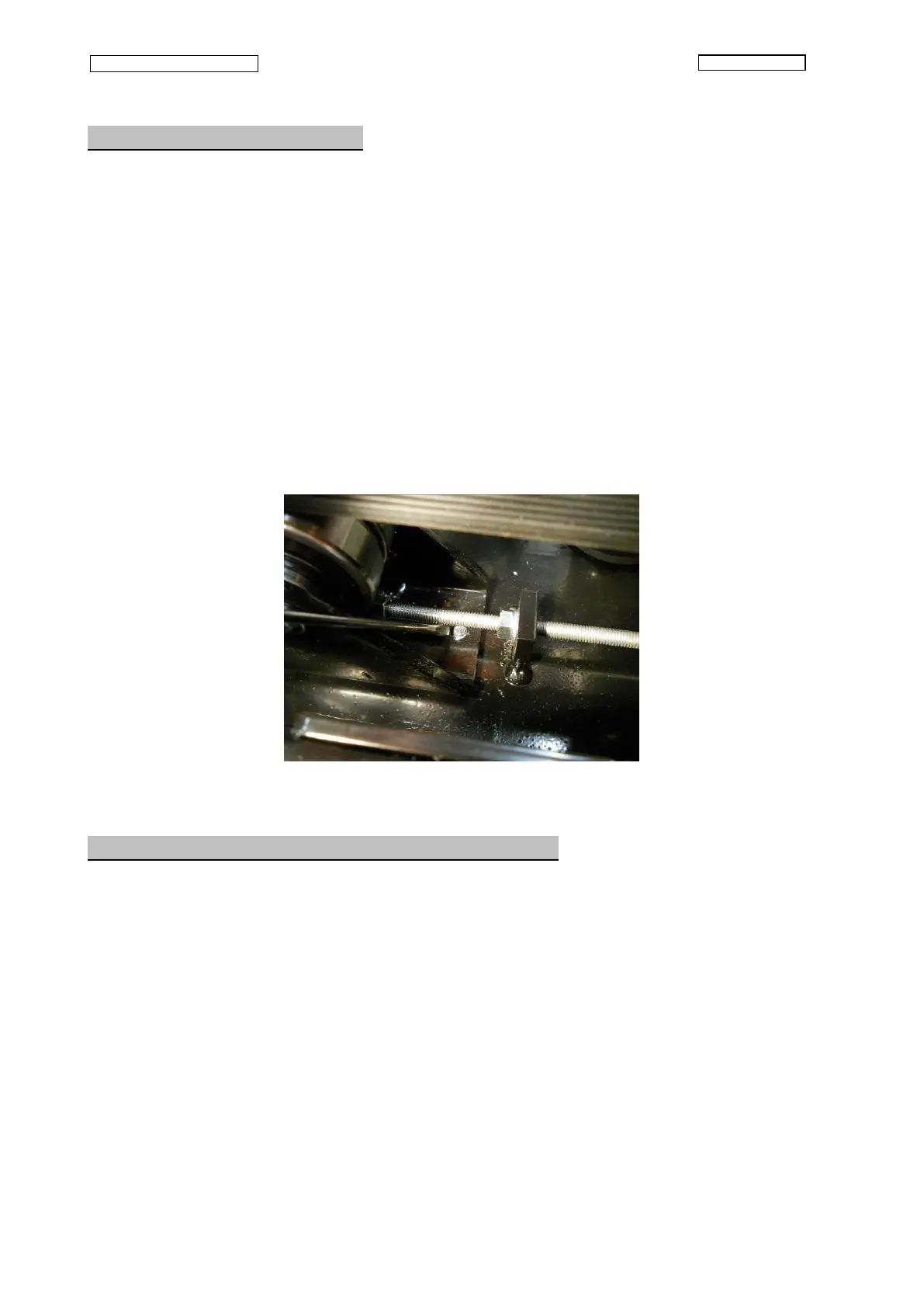

Loosen the nut of the adjusting rod (Fig.40), then screw it up to put in the proper belt tension.
Screw the nut and the screws that secure the support of the roller belt tensioner to the engine
containment tank.
Fig.40
6.4 - Lubrication and gliding Running Belt Check
To perform this check it is necessary to set the belt in motion.
To set the belt in motion it is necessary to work with the hood open and the device switched on. If
the treadmill is not switched on, follow the guidelines described in paragraph 6.2.
Do get on tape a person at least 100kg and put it into rotation at a speed of 0.5 km/h (0.3 Mph).
If these conditions regularly runs the carpet (no cracks), while the operator walks on the tape, the
test is OK.
Otherwise, if the running belt is blocked or not flowing properly, the test is not OK.
