Medisoft 870 S - 4.4 - Control Board Fuse Check

Service Manual 800 series Rev. 1/01.07.2019
16
Medisoft RAM Italia S.r.l. - All rights reserved

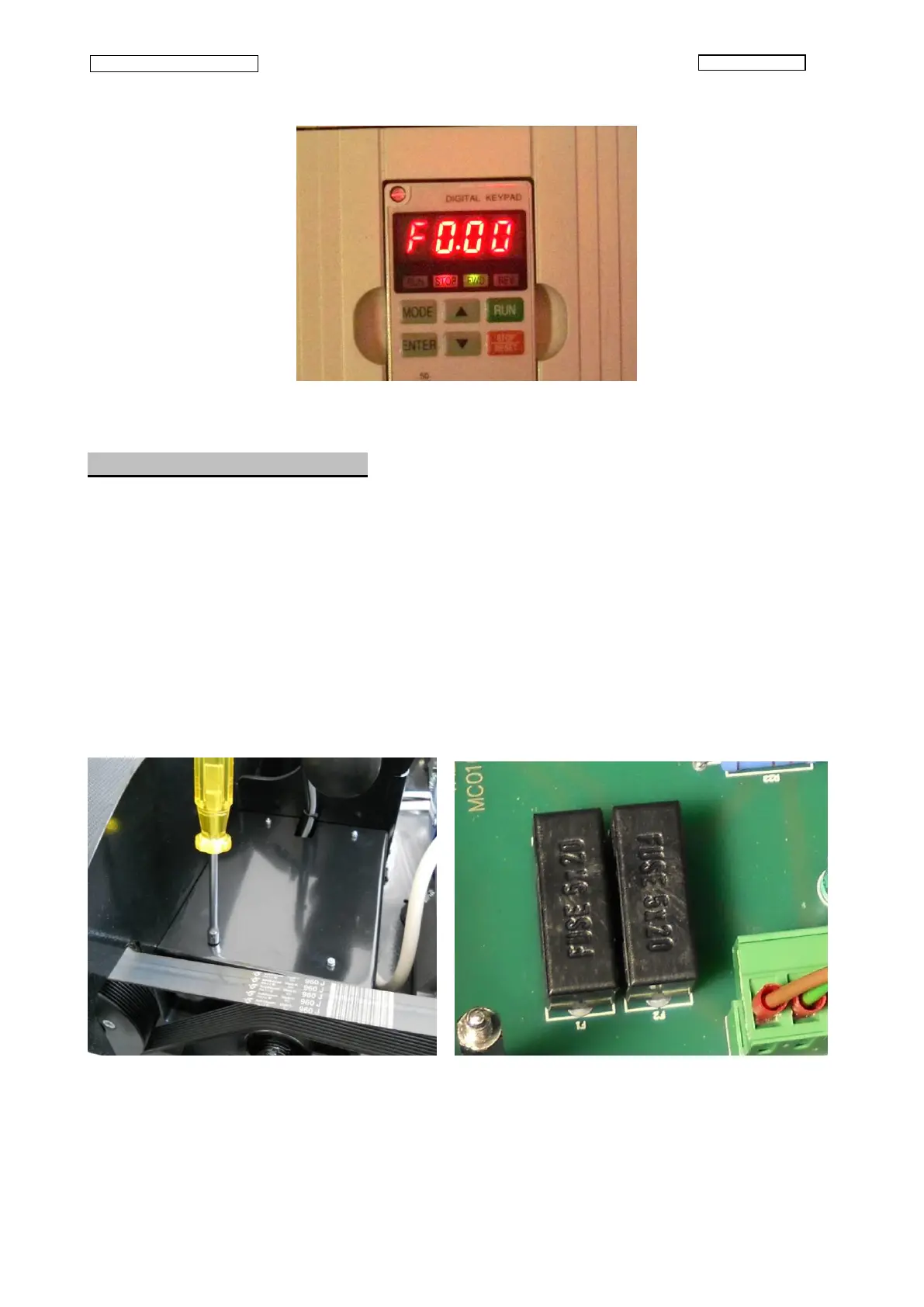

Fig.20
4.4 - Control board fuse check
Tools needed :
• 5,5 mm wrench
• Multi meter
Remove the protective cover of the control board (Fig. 21).
Remove the fuse F1 (1A) from the control board (Fig. 22) and check if it's good.
If the fuse is good, the test is OK, otherwise it is not OK.
Fig.21 Fig.22
