1) the safety contact block in the closed position
2) connect the plug to the socket
3) turn the switch to ON
WARNING:
From this moment on, the machine is under tension, and you are advised to be extremely careful
in order to avoid accidental contact with the parts under tension
After putting the tape in rotation (2 Km / h), you must check that the belt remains centred between
the wheels of directionality placed under the frame.
If the running belt is not centred, you have to screw one of the two bolts that tensioner the belt and
precisely the opposite to that in which you want to get the displacement of the tape.
To check that the running belt is perfectly aligned and parallel to the side stringers, observe the
directional guides. If during the rotation, the tape don't touch the guide, meaning that the tape is
perfectly aligned and it isn't necessary to adjust, otherwise must be adjust.
Once you have the belt alignment is necessary to tighten the screws that secure the front roller
and the rear roller to the frame

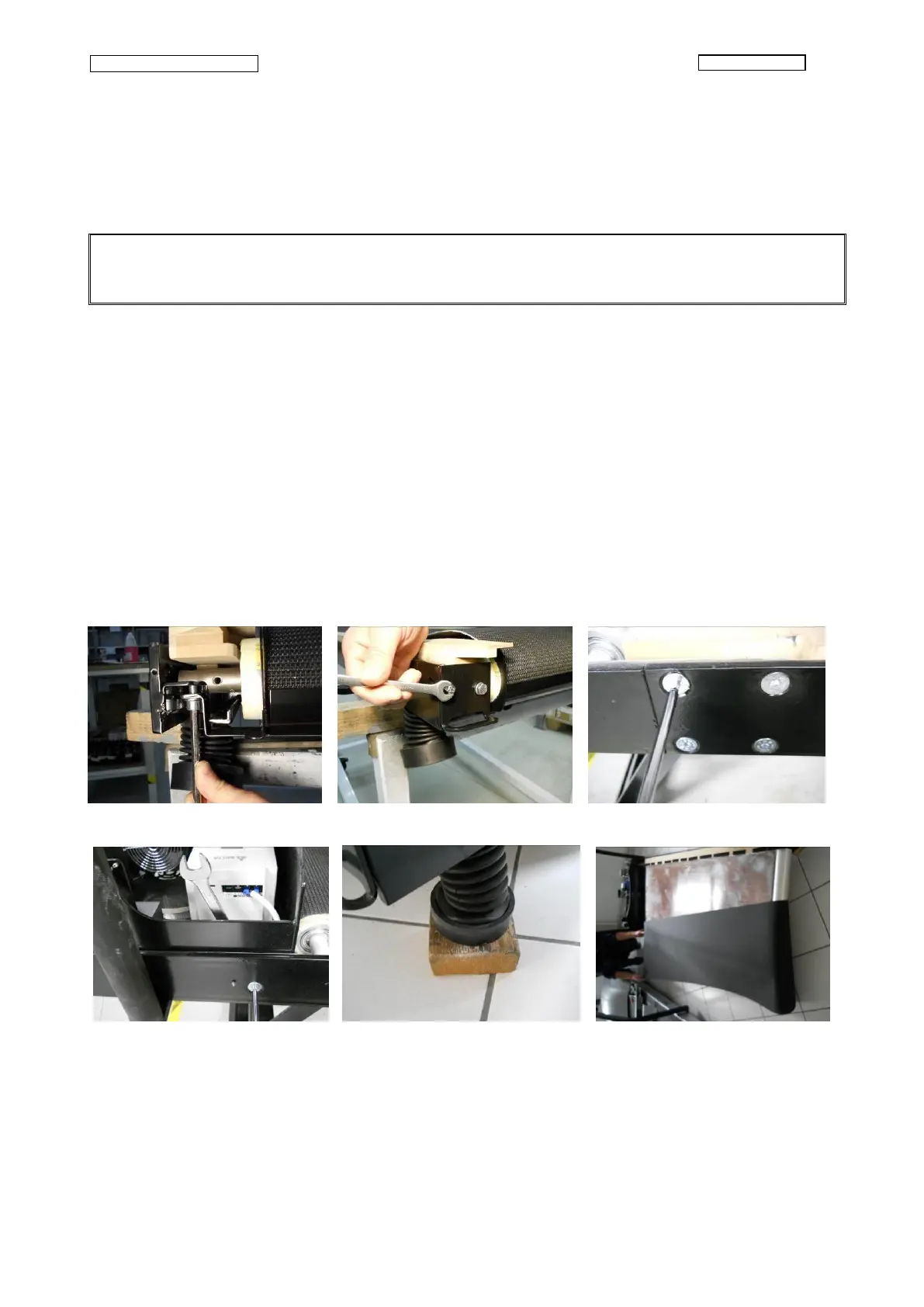

Fig.42 Fig.43 Fig.44
Fig.45 Fig.46 Fig.47
