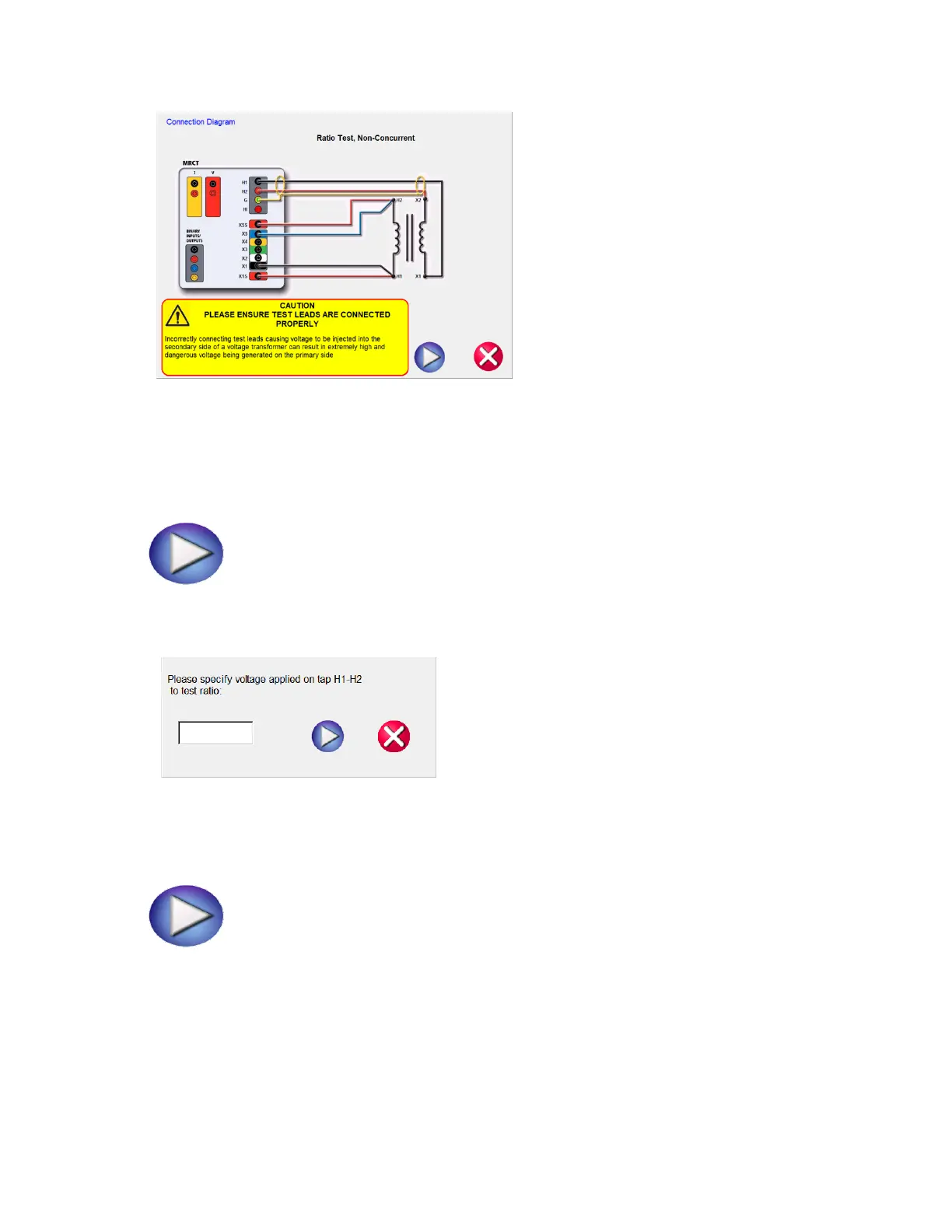

Figure 74: VT Ratio Test Connection Diagram

12. Check all connections to ensure correctness

13. Hit Blue Play button.

14. A dialog will appear requesting how much Voltage to apply to the VT primary during

the ratio test

15. Enter a voltage 1V and 300V.

16. Hit Blue Play button to begin test.

17. The Ratio test will begin.

Voltage (V): The MRCT displays the real time voltage readings of the primary while the test is in

progress.

Current (A): The MRCT the real time current readings for the primary while the test is in

progress.
