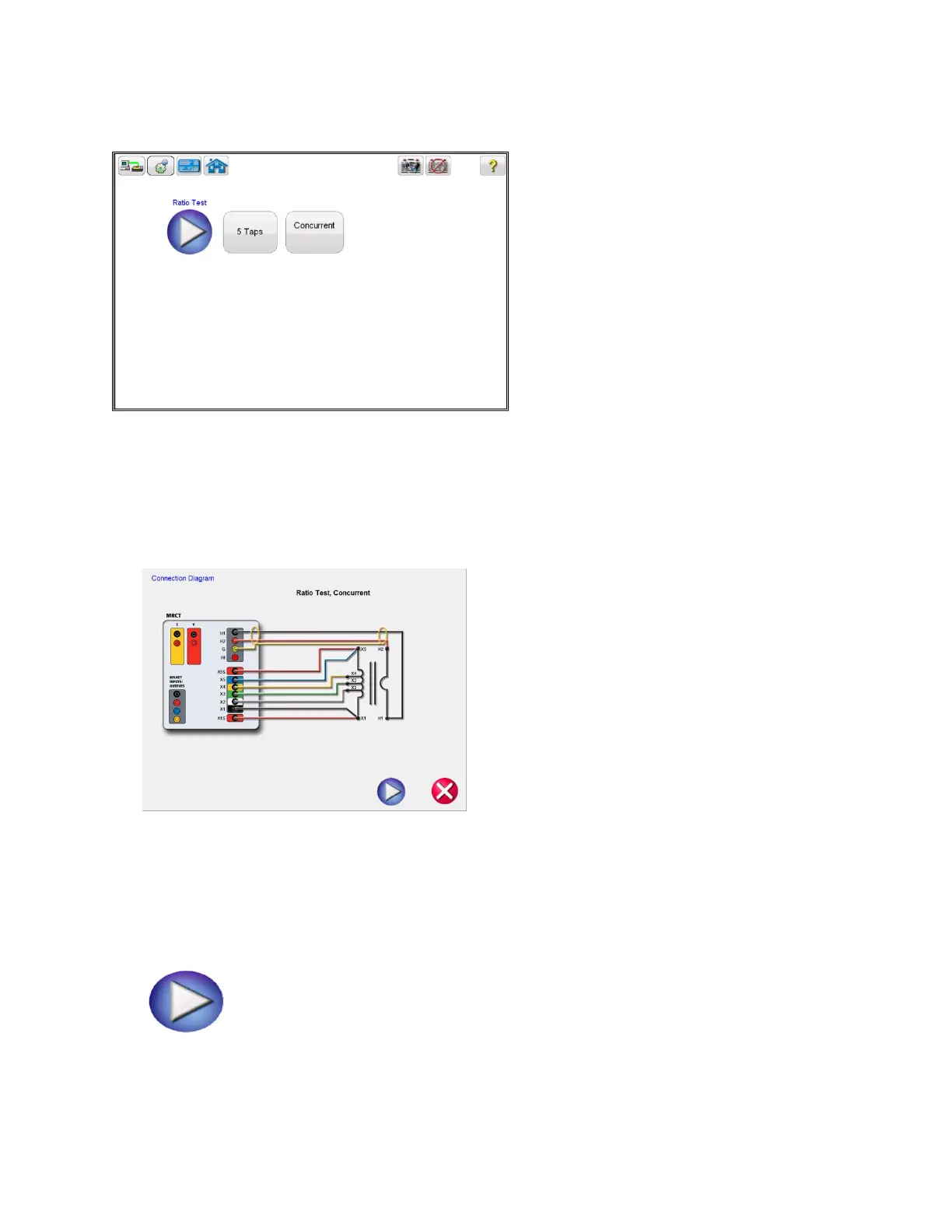

Figure 45: CT Ratio Test Screen - Concurrent

11 Select the play button and a connection diagram will appear showing the proper connections for the

MRCT to the CT

Figure 46: CT Ratio Connection Diagram - Concurrent

12 Check all connections to ensure correctness

13 Hit Blue Play button.

14 A dialog will appear requesting how much Voltage to apply to the CT during

the ratio test
