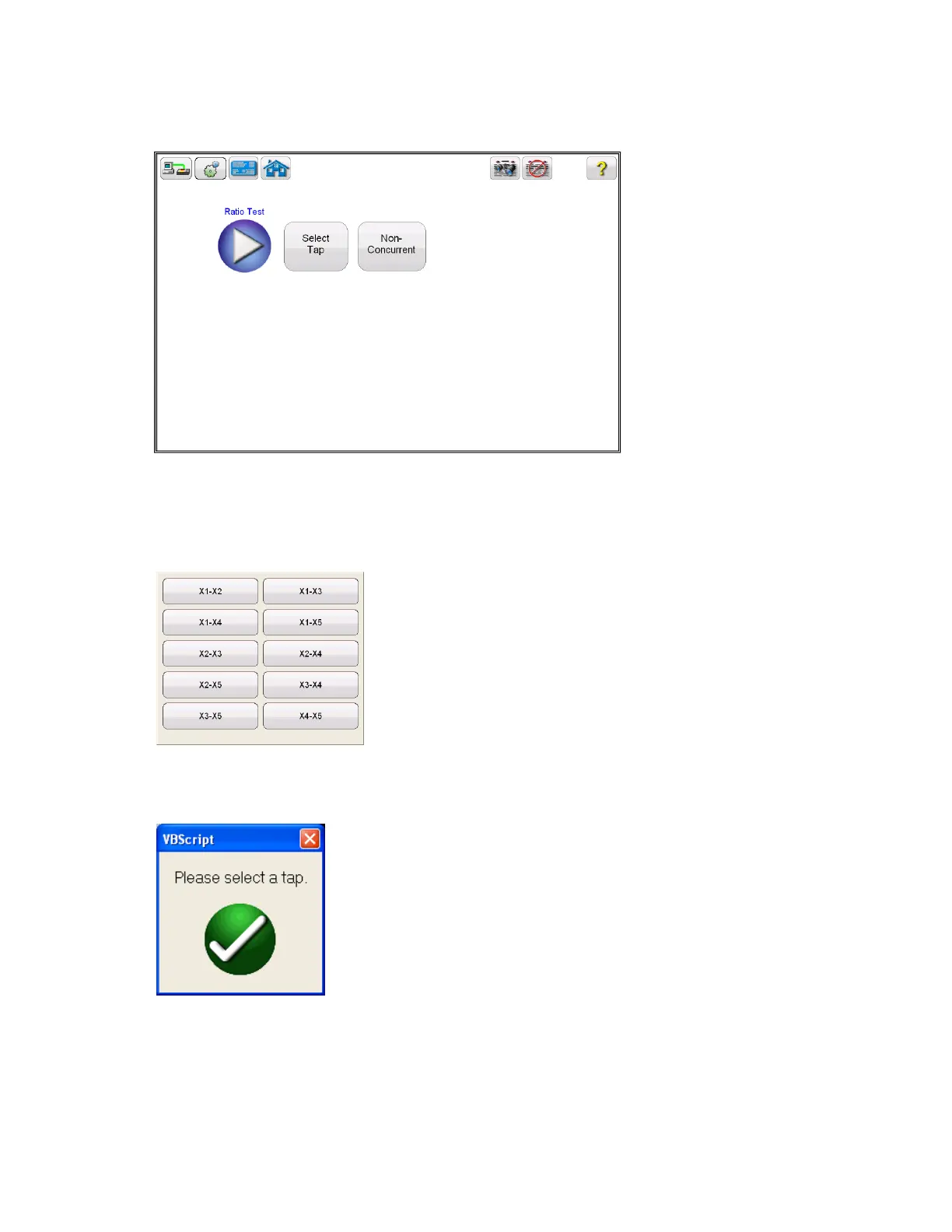

Figure 49: CT Ratio Test Screen – Non Concurrent

9. Hit the Select Tap function button to select the appropriate tap to be tested

10. Select the tap configuration before hitting the PLAY button. If PLAY button is

pressed before selecting the tap, following message will appear:

11. After selecting the appropriate tap, select the play button and a connection diagram will appear

showing how to correctly connect the MRCT to the CT
