103

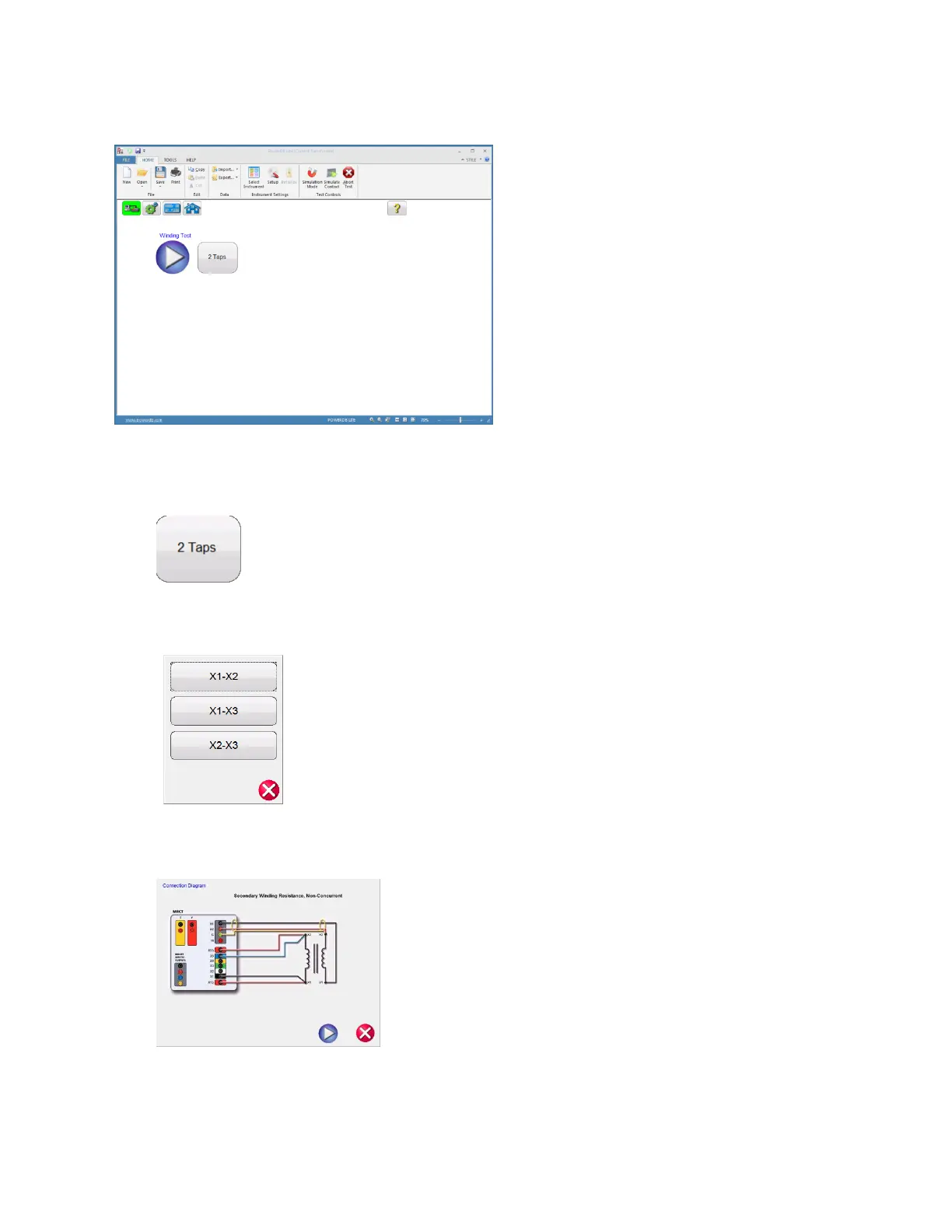

Figure 77: VT Winding Test Screen

29. If the VT has two taps then the test can be ran by selecting the blue play button. Otherwise hit

the Select Number of Tap functions button to select the appropriate number of taps

30. After selecting the appropriate number of taps use the Winding Selector to select the

appropriate winding to be tested

31. After selecting the appropriate winding, select the play button and a connection diagram will

appear showing how to correctly connect the MRCT to the VT

Figure 78: VT Winding Resistance Connection Diagram
