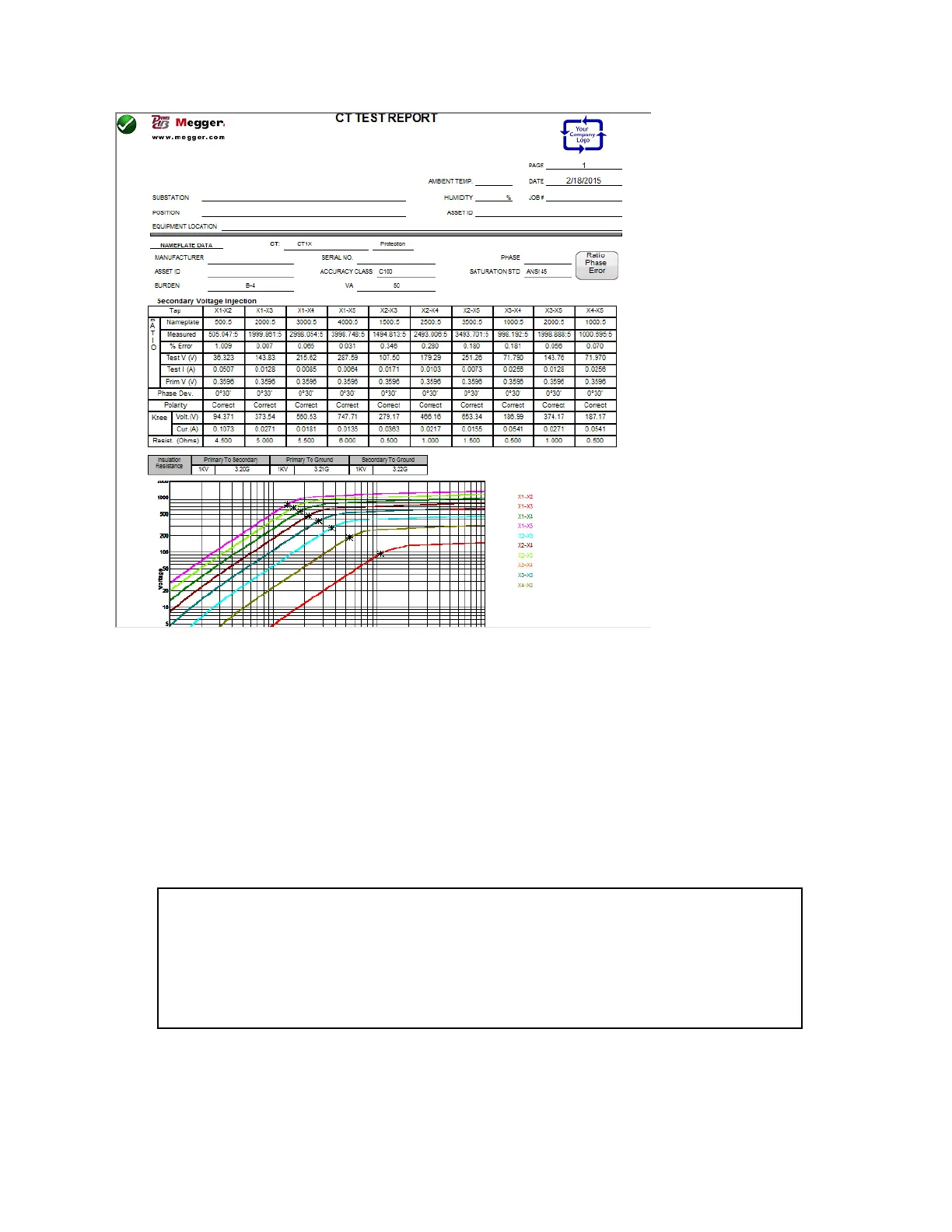

Figure 37: Testing Report - Concurrent
9.2 CT Saturation Test
9.2.1 Method 1 – Concurrent
Refer to the safety instructions first before use of the equipment.
1. Verify the Power ON/OFF switch is OFF. Power the test set from a suitable source of power (95-
265 V50/60 Hz).
2. Connect the ground wing nut to a suitable ground.
3. Connect the test set secondary output SOURCE binding posts X1S to the secondary of the current
transformer X1, and X5S to the secondary of the current transformer on the most external tap.
WARNING
There is always the possibility of voltages being induced at the terminals of a test
specimen because of proximity to high voltage energized lines. A residual static voltage
charge may also be present at these terminals. Ground each terminal to be tested with a
safety ground stick, before making connections.
