MELAG MELAquick 12+ p - Device Views

Chapter 2 – Device Description
12
Device views
Front side
(2)
(3)
(1)
(4)
(1) Twist grip
(2) Operating and display field
(3) Mains switch
(4)
Suction fitting for drying air with insert (only
MELAquick 12+ p)
Rear side
(5)
(12)
(14)
(6)
(7)
(8)
(9)
(10)
(13
)
(11)
(5) Device fuse
(
6) Cable c
onnection for water level monitoring in the
feed water container
(
7) Cable c
onnection for water level monitoring in the
waste water container
(
8) Serial interface (RS232)
(
9) Sterile filter and compressed air connection
(only MELAquick 12+)
(1
0) Mains supply for IEC plug
(
11) Connection for external waste water container
(
12) Slot for emergency release
(
13) Safety valve
(
14) Connection for external feed water container

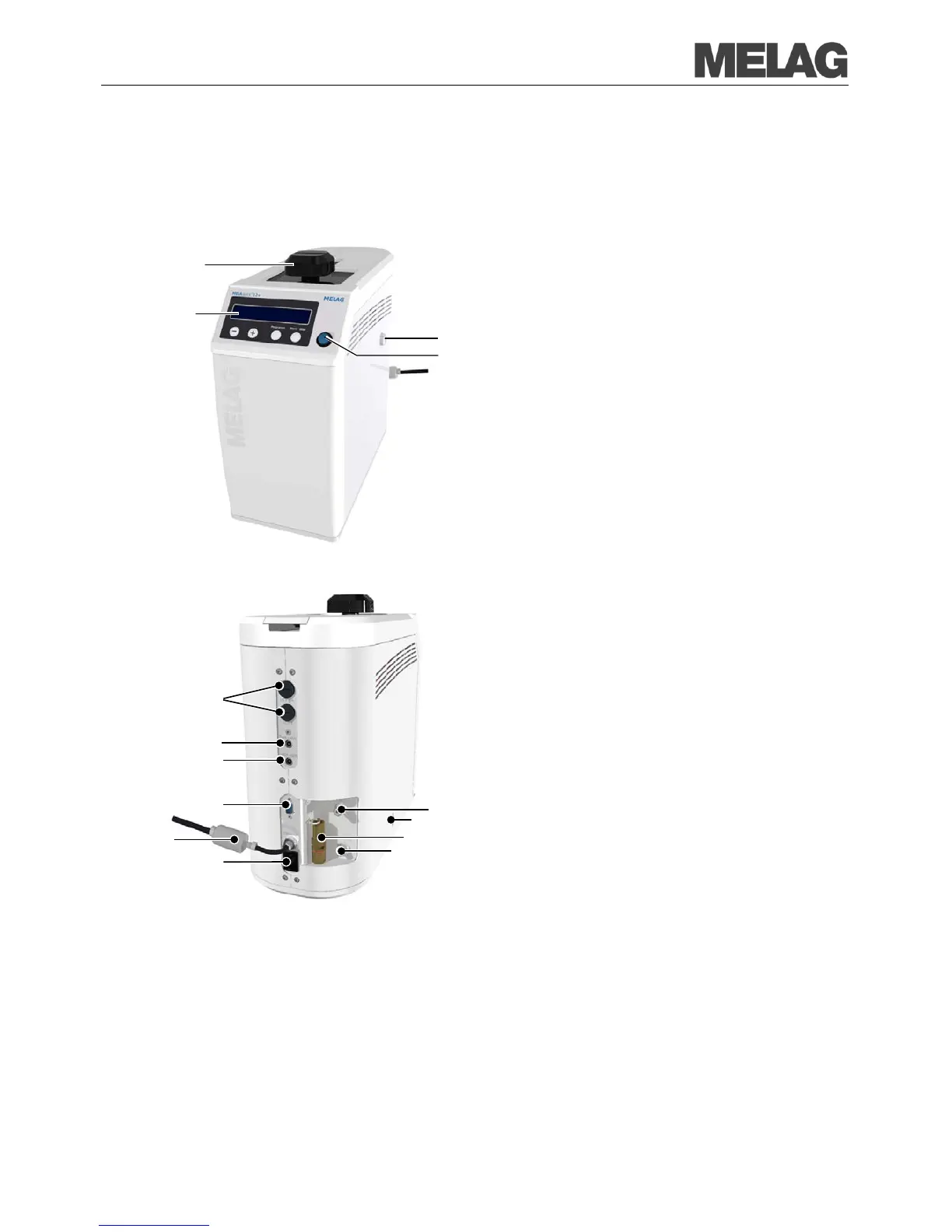

Fig. 1: Device views
