Chapter 2 – Device Description
14
Support with round holders for 7 handpieces
Support with ISO adapters 7 handpieces

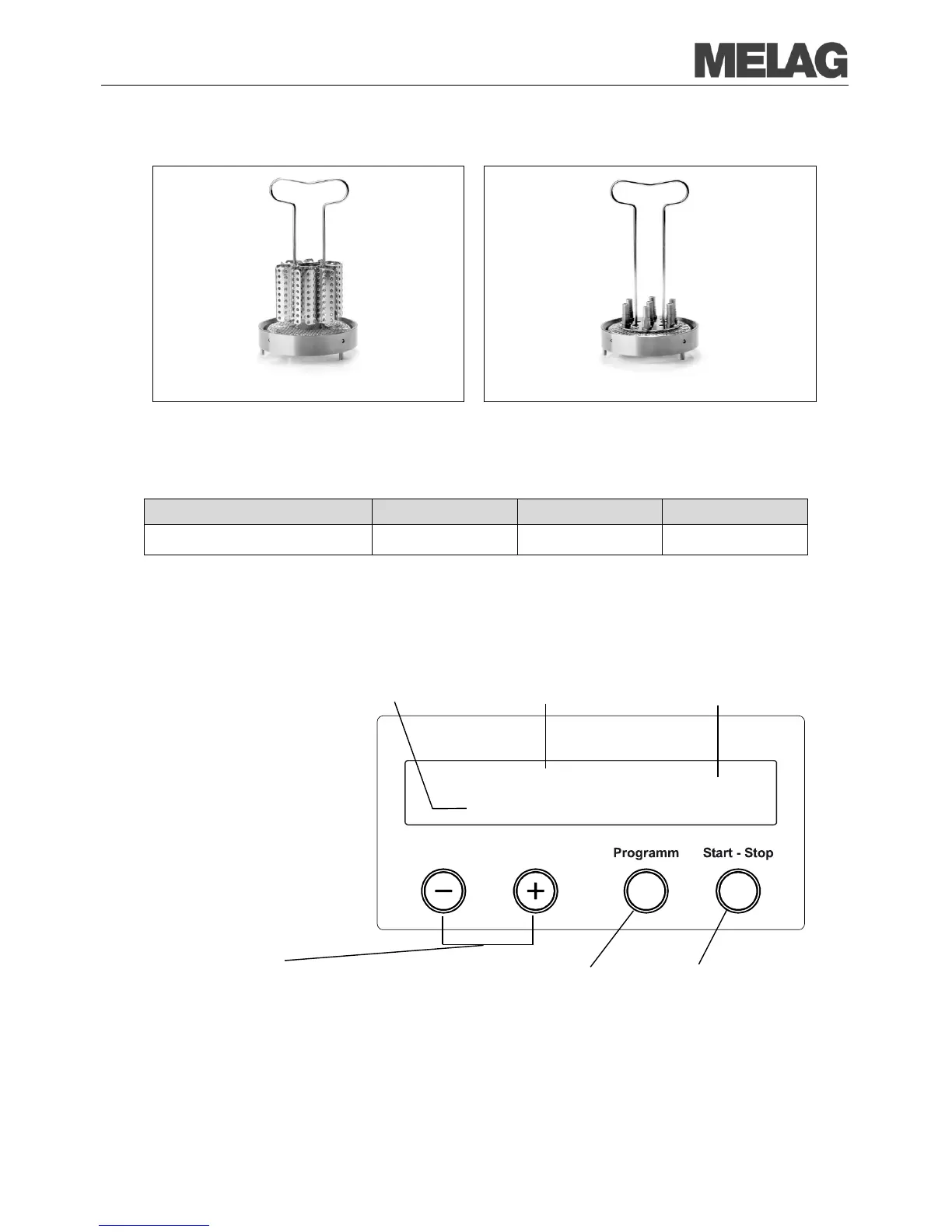

Fig. 7: Support with round holders (optional) Fig. 8: Support with ISO adapters (optional)
Effective capacity

Device type
Diameter
Depth
Volume
MELAquick 12+/12+ p
∅ 9 cm
20 cm
1.35 Litres
Control panel
The control panel consists of a two-line alphanumerical LED display and
four membrane keys.
Function key (-) and (+)
to select, set and display
special functions:
print, date/time, preheating, total batches,
conductivity, acknowledge error, (+)
KEY for
unlocking the door
Program selection button (P)
to select the sterilization programs/ test
programs
and select or set options
(sub-
menus) of the special functions
Start – Stop button (S)
to
start programs, terminate
programs / drying as well as
control of the special functions
2-line LED display
for program status display
and parameter display
Time (h:min:s)
Chamber pressure (bar) and
(steam-) temperature (°C)
12:27:12
0.02 bar 25℃
