Technical tables
59
Technical tables
Nominal value tolerances
Step
Press. P
Tolerance P Tol. P Tol.
2700 - 30/+160 ◄ ◄ ◄ ◄ Steam entry
1250 -390/+ 30 ◄ ◄ ◄ ◄ Steam flow off
n. F.
2700 - 50/+110 ◄ ◄ ◄ ◄ Steam entry
1250 -160/+ 50 ◄ ◄ ◄ ◄ Steam flow off
3050 - 50/+ 70 ◄ ◄ ◄ ◄ Heat up
3050 - 50/+ 70 ◄ ◄ ◄ ◄
Sterilization
start
3170
- 90/+ 90
◄ ◄
◄
◄ Sterilization
1200 -140/+ 50 ◄ ◄ ◄ ◄ Pressure release
Quick-Progr. S
Universal-Progr. S
Prion-Progr. S
Fractio-
nation
1. F.
◄ same meaning as in Universal-Pr. S
All values in mbar
Pressure-time charts

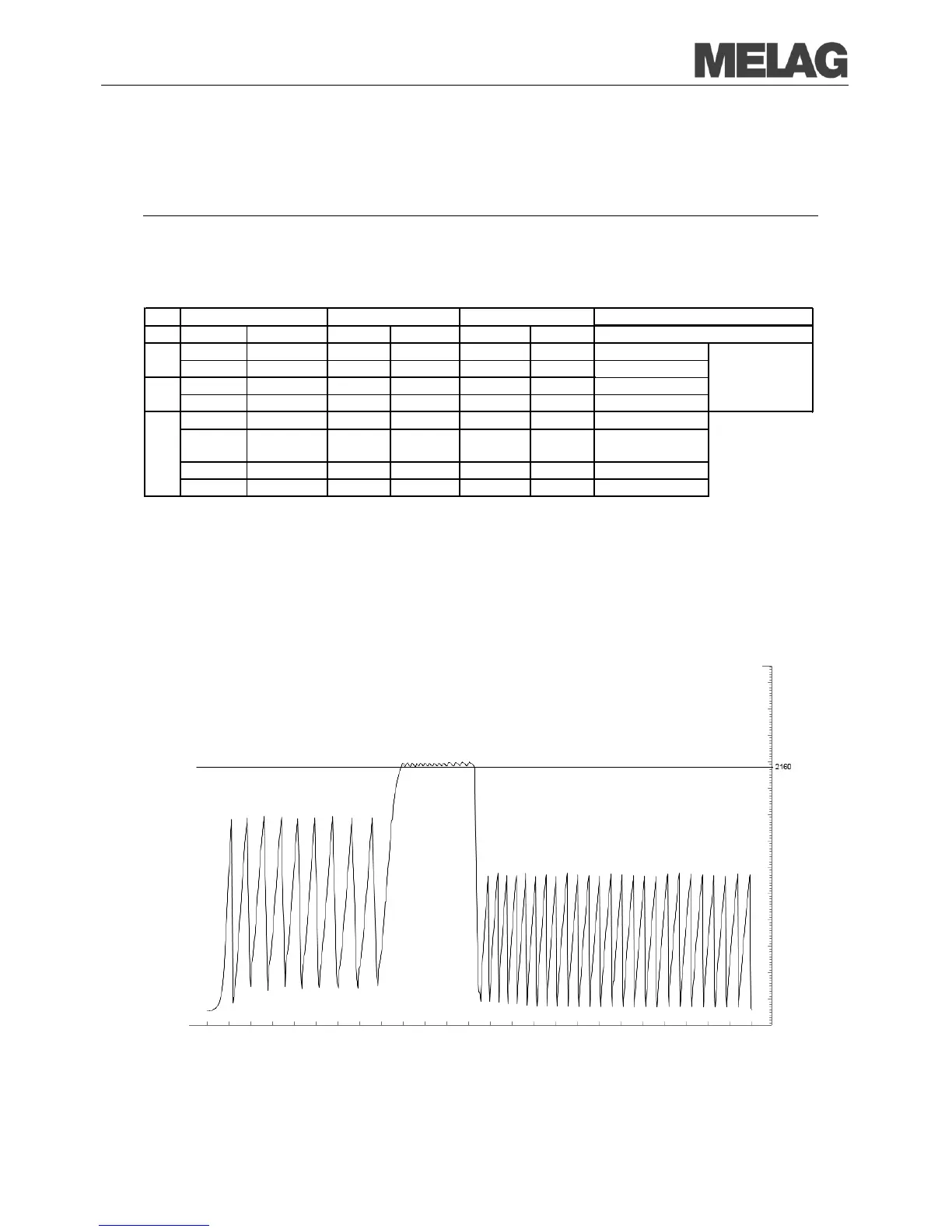

Fig. 13: Pressure-time chart for Universal-Program S, 134 °C and 2.1 bar
Press. (mbar rel.)
