Mercury 90 - 1994;1995 75;90 Wiring Diagram (1-3-2 Firing Order)

90-830234R3 DECEMBER 1997 ELECTRICAL - 2D-3

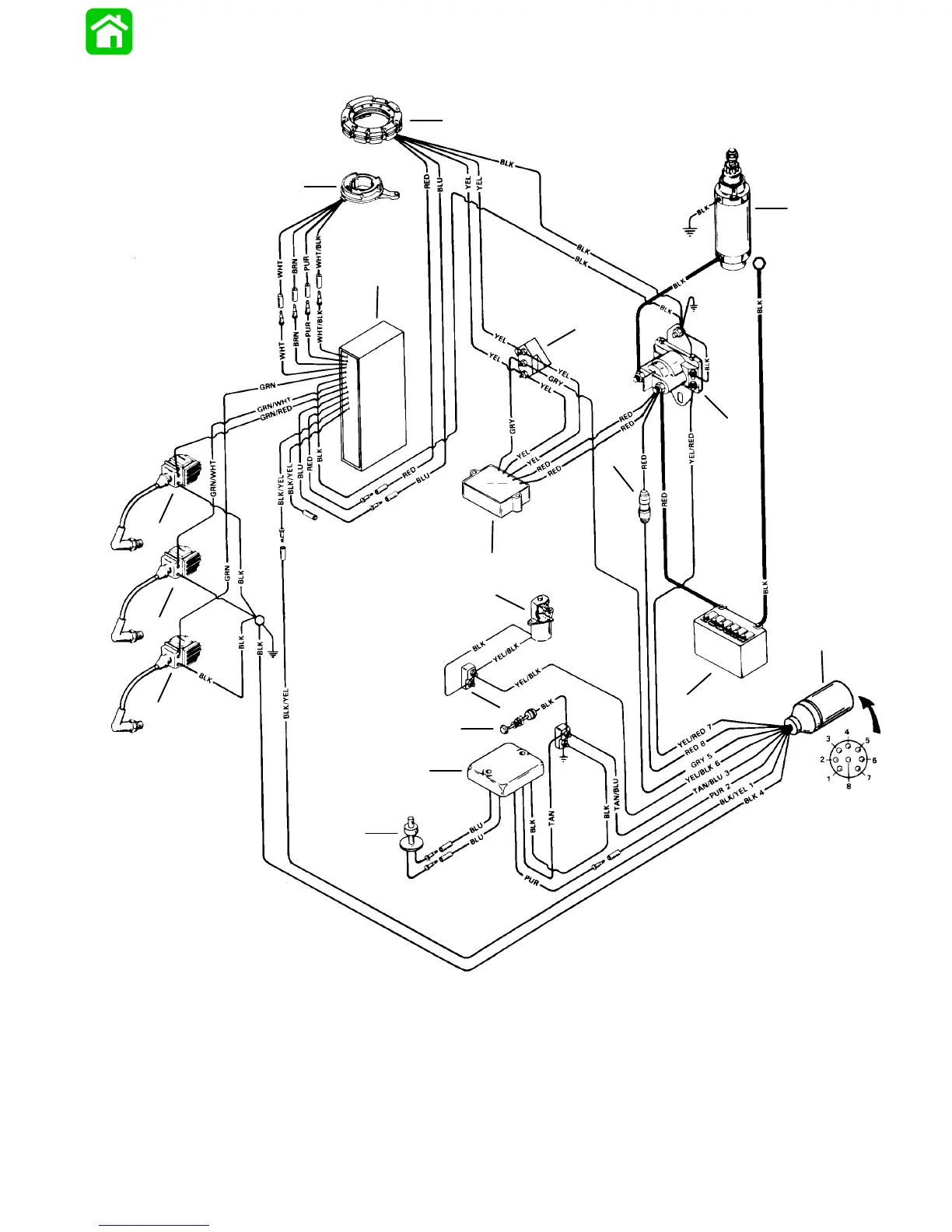

1994/1995 75/90 Wiring Diagram (1-3-2 Firing Order)
53476
a
b
c
d
e
f
g
h
i
j
k
l
m
k
n
o
p
q
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
a - Stator
b - Trigger
c - Starter
d - Starter Solenoid
e - 20 Ampere Fuse
f - 12 Volt Battery
g - Engine Harness
h - Low Oil Switch
i - Warning Module
j - Temperature Switch
k - Terminal Block
l - Enrichment Valve
m- Voltage Regulator/Rectifier
n - Switch Box
o - Ignition Coil #3 Cylinder
p - Ignition Coil #2 Cylinder
q - Ignition Coil #1 Cylinder
