Mercury 90 - Manual Tilt System Installation

90-830234R3 DECEMBER 1997 MID-SECTION - 5E-35

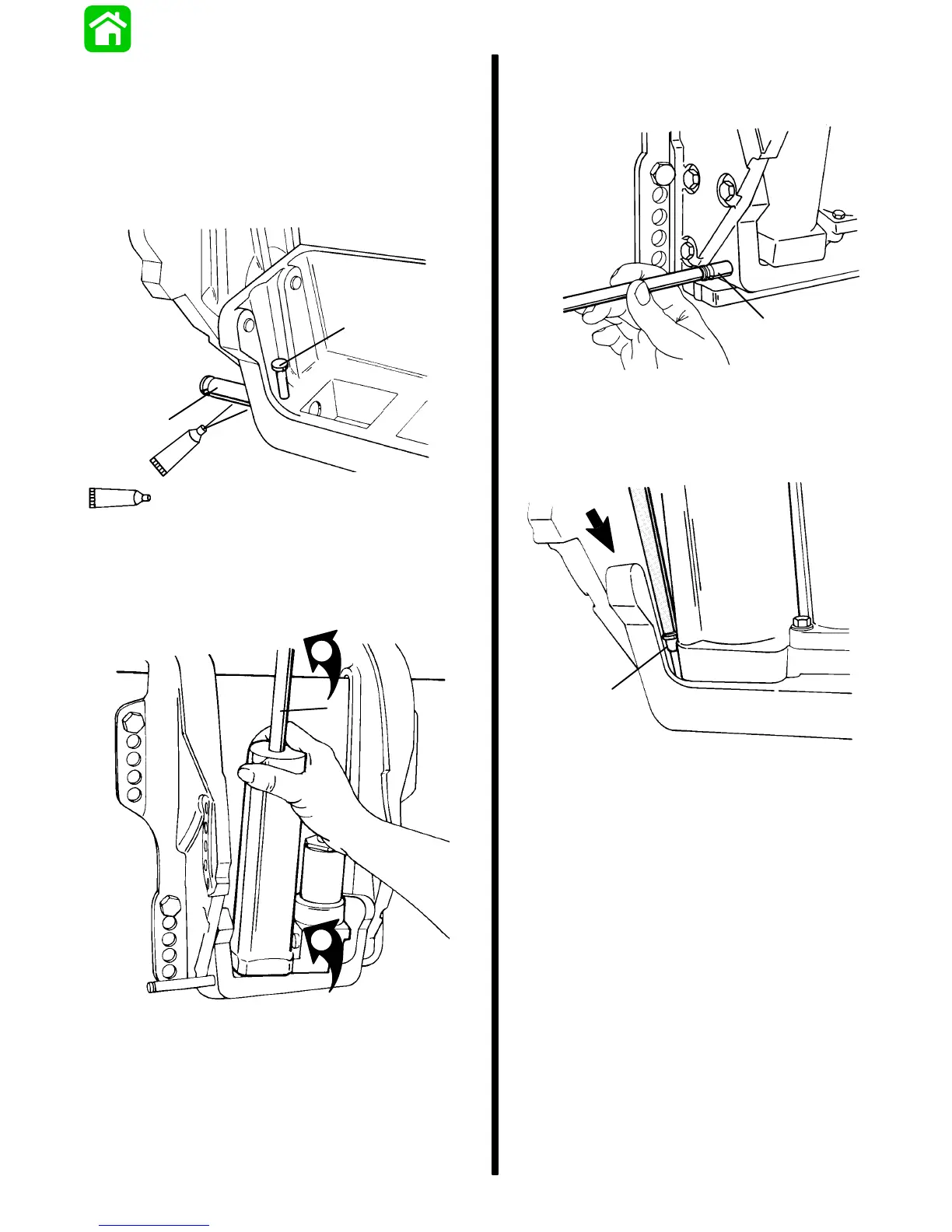

Manual Tilt System
Installation
1. Apply 2-4-C w/Teflon Marine Lubricant to lower
pivot pin hole and pivot pin surface.
2. Start lower pivot pin into pivot pin hole and posi-
tion lower dowel pin (retained) in its hole.
a
b
95
2-4-C With Teflon (92-825407A12)
95
51148
a - Lower Pivot Pin
b - Lower Dowel Pin
3. Reinstall manual tilt system, bottom first. Recon-
nect release valve link rod.
2
1
a
51144
a - Manual Tilt System
4. Using a suitable punch, drive lower pivot pin into
clamp bracket and trim cylinder assembly until
pivot pin is flush with outside surface.
a
51147
a - Lower Pivot Pin
5. Using a punch, drive lower dowel pin in until
seated.
a
51148
a - Lower Dowel Pin
