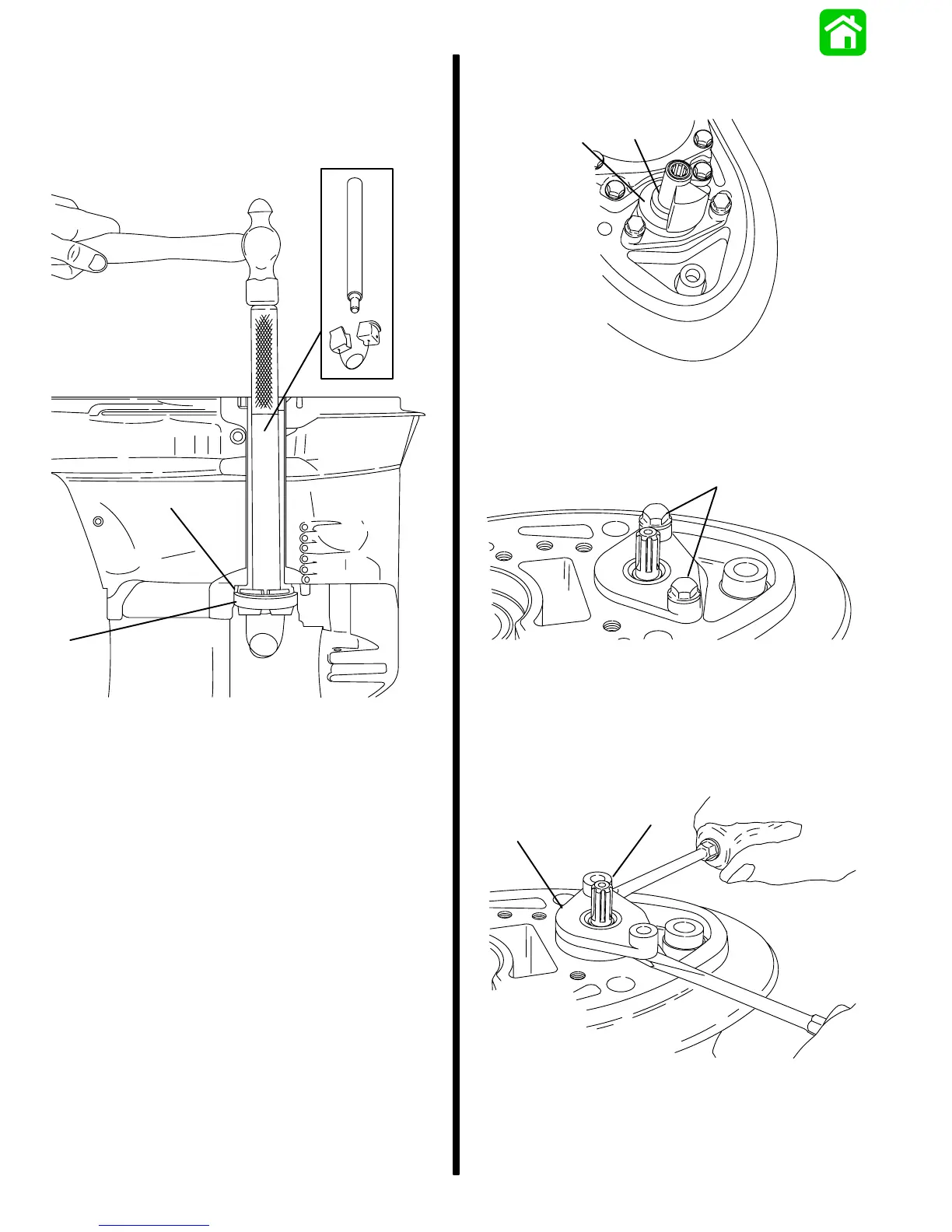

Lower Drive Shaft Bearing Race
IMPORTANT: Retain shim(s) for reassembly.
1. Remove race and shim(s) using bearing race tool
(91-14308A1).
b
c
a
19171
a - Race
b - Shim(s)
c - Bearing Race Tool (91-14308A1)
Shift Shaft
1. Remove shift shaft coupler and nylon spacer.
b
a
53925
a - Shift Shaft Coupler
b - Spacer
2. Remove bolts.
a
53926
a - Bolts
NOTE: Gearcase should be in FORWARD for easi-
est removal of shift shaft.
3. Remove shift shaft bushing and shift shaft.
b
a
53927
a - Bushing
b - Shift Shaft
