4-34 - POWERHEAD 90-830234R3 DECEMBER 1997

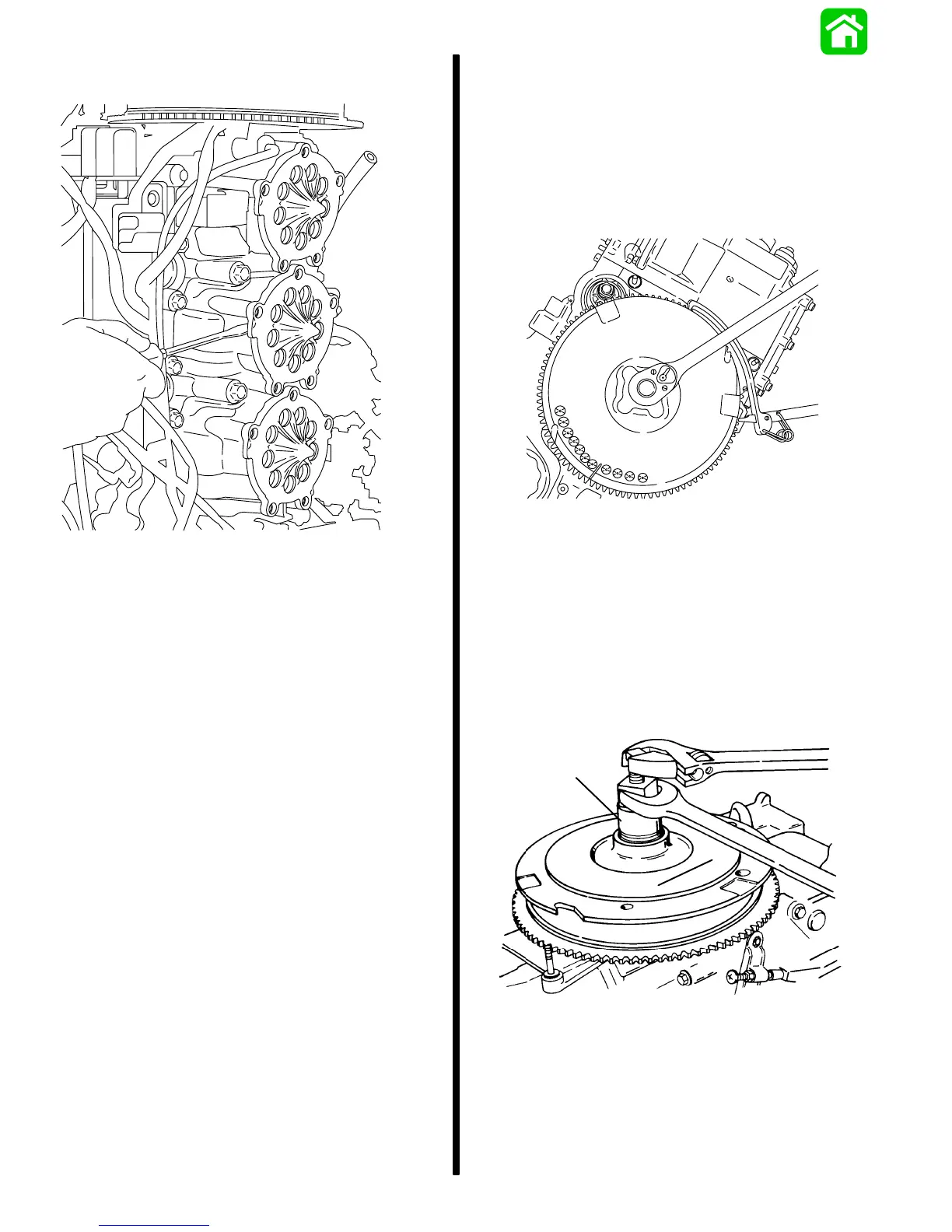

• Pry off each reed-block, as shown, using screw-
driver.
19549
Flywheel Removal
DO NOT strike end of puller center bolt to remove
flywheel, or damage may result to crankshaft or
bearings.
• Remove flywheel cover from powerhead.
• While holding flywheel with Flywheel Holder
(91-52344), remove flywheel nut and washer.
20344
Crankshaft damage may result if a protector cap
is not used between crankshaft and puller.
• Install a crankshaft Protector Cap (91-24161) on
end of crankshaft, then install Flywheel Puller
(91-73687A1) into flywheel.
NOTE: Neither heat nor hammer should be used on
flywheel to aid in removal as damage to flywheel or
electrical components under flywheel may result.
• Remove flywheel.
a
b
51124
a - Flywheel Puller (91-73687A1)
b - Flywheel
