90-830234R3
DECEMBER 1997
POWERHEAD - 4-33
a
b
4 Cylinder Models
54134
a
-
Fuel Enrichment Fitting
b
-
Accelerator Pump Fitting
•

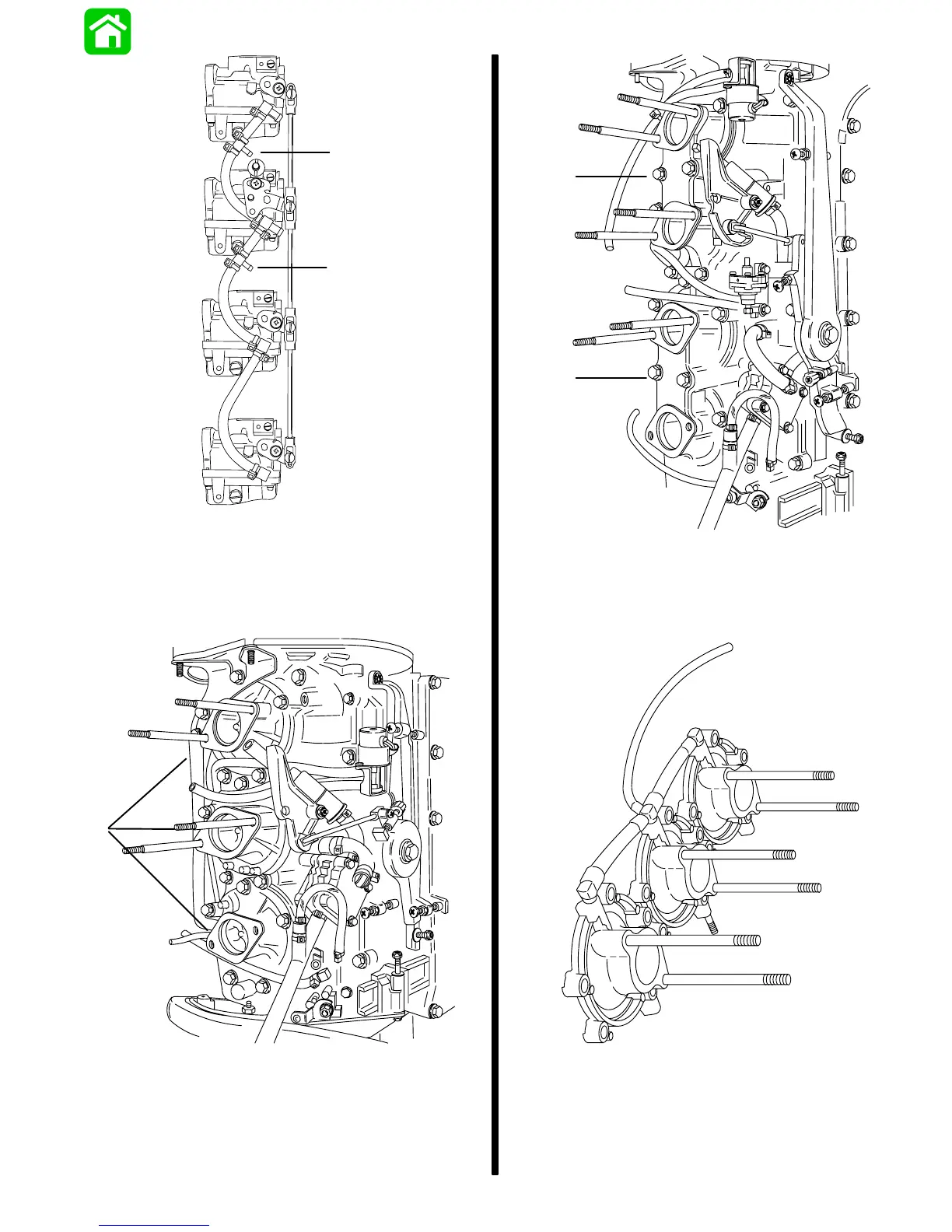

Remove intake manifolds.
3 Cylinder Models
a
54136
a
-
Intake Manifolds
a
a
4 Cylinder Models
54135
a
-
Intake Manifolds
•
Remove intake manifolds as an assembly
.
3 Cylinder Models
19330
244
246
Table of Contents
